Oil-Filled Oval Capacitor - 2 µF, 2000 VDC
Oil-Filled Oval Capacitor - 2 µF, 2000 VDC
SKU:OIL-9f0732
Reliable 2 µF, 2000 VDC Oil-Filled Capacitor for industrial & government applications. Durable construction, precise performance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Oil-Filled Oval Capacitor - 2 µF, 2000 VDC
$29.99
Quantity: 1
Claim Your Seller Account
Oil-Filled Oval Capacitor - 2 µF, 2000 VDC
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

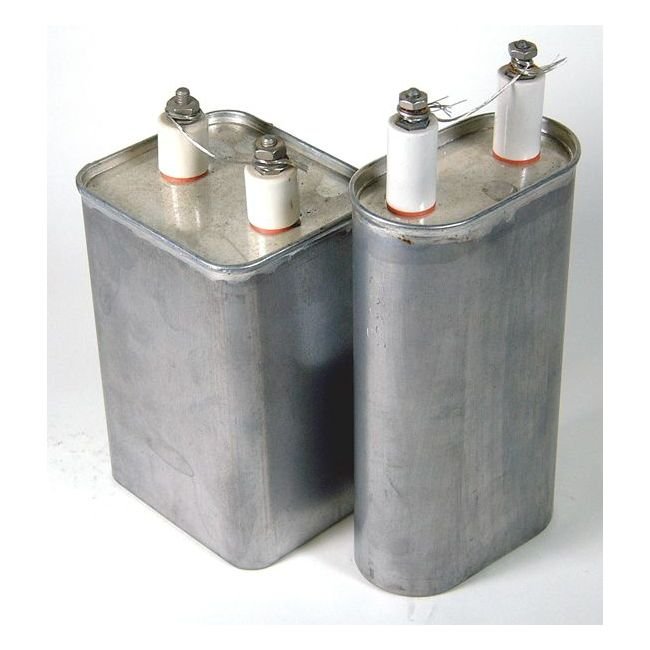

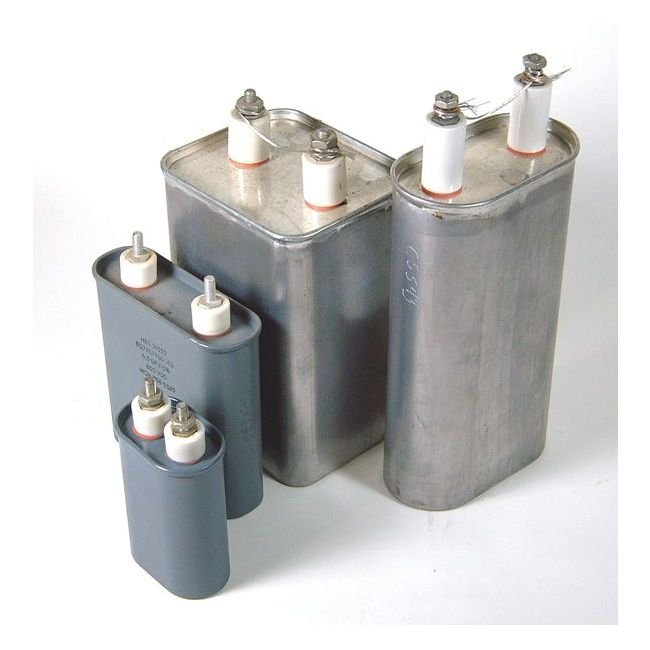

Introducing the Drawn Oval Can from the SCR Series Oil-Filled Capacitors. This capacitor offers a capacitance range of 0.25 to 15 µF with a precise 2 µF capacity and a high voltage rating of 2000 VDC. Crafted with drawn plated steel cans for durability, this capacitor ensures reliable performance in a variety of applications. With dimensions of 1.91" D x 2.91" W x 4.25" H and advanced insulation materials, it operates smoothly in temperatures ranging from -40 to +90 ºC. Meeting stringent industry standards, this capacitor is ideal for industrial and government procurement needs.
Product Specifications
Specifications Ac Ripple Voltage
The sum of the DC voltage and peak AC ripple should not exceed the capacitor's VDC rating.Additionally, the AC component should not exceed:20 % of VDC at 60 Hz10 % of VDC at 400 Hz5 % of VDC at 1 kHz1% of VDC at 10 kHz
Specifications Can Construction
Drawn Plated Steel Cans (Welded Steel, Aluminum or Stainless Steel Available) | Epoxy Paint
Specifications Cap
2 µF
Specifications Capacitance Range
0.25 to 15 µF
Specifications Capacitance Tolerance
±10% Standard
Specifications Dielectric
Kraft paper and polypropylene with environmentally compatible impregnant

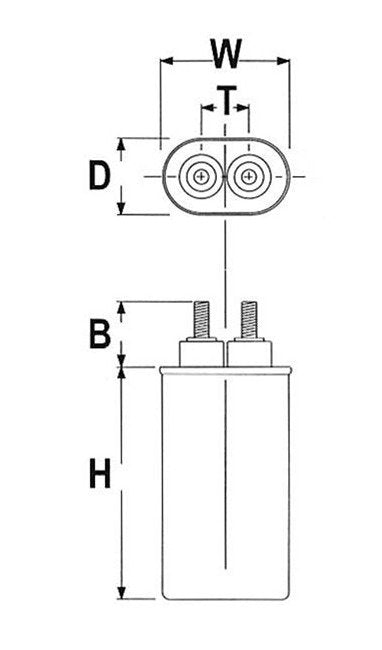

Specifications Dimension B
1.25
Specifications Dimension D
1.91
Specifications Dimension H
4.25
Specifications Dimension T
1.38
Specifications Dimension W
2.91
Specifications Insulation Resistance At 25c Typical
25000 MΩ
Specifications Operating Temperature
-40 to +90 ºC
Specifications Shape
Oval
Specifications Voltage Dc
2000 V
