Oil-Filled Rectangular Capacitor - 10 µF, 2000 VDC
Oil-Filled Rectangular Capacitor - 10 µF, 2000 VDC
SKU:OIL-520d78
High-quality Oil-Filled Rectangular Capacitor - 10 µF, 2000 VDC for reliable performance in extreme conditions.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Oil-Filled Rectangular Capacitor - 10 µF, 2000 VDC
$39.99
Quantity: 1
Claim Your Seller Account
Oil-Filled Rectangular Capacitor - 10 µF, 2000 VDC
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

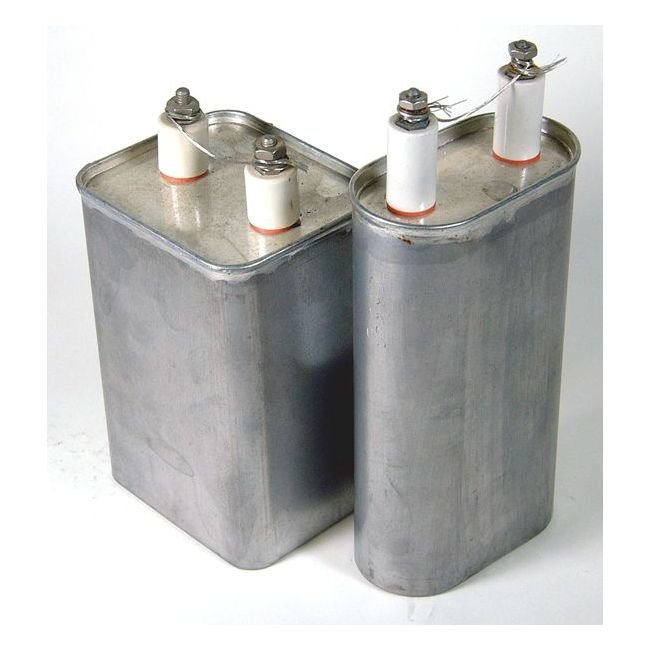

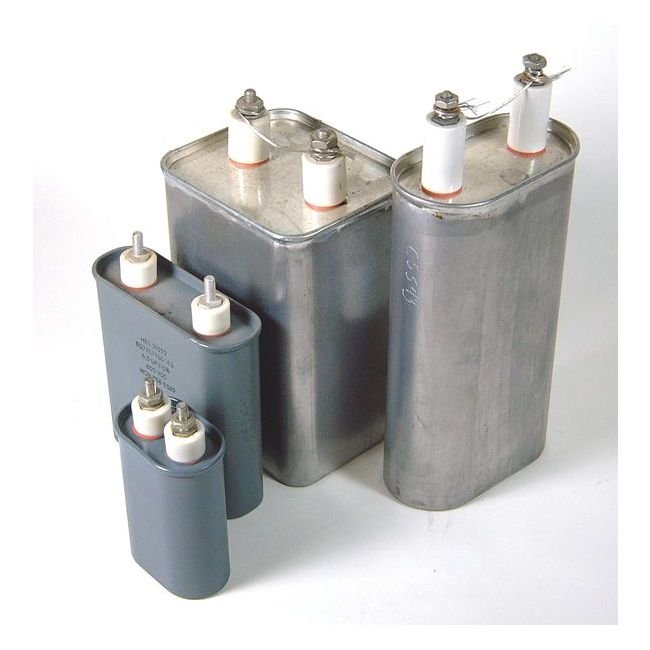

Introducing the SCR Series Oil-Filled Capacitors, featuring a durable drawn plated steel can for reliable performance. With a capacitance range of 0.25 to 15 µF and voltage rating of 2000 VDC, these capacitors are designed to meet stringent industry standards. The capacitors ensure stable operation even in extreme temperatures (-40 to +90 ºC) and offer high insulation resistance for enhanced safety. The use of Kraft paper and polypropylene dielectric with an environmentally compatible impregnant ensures efficient performance and durability. Trust in our capacitors for snubber and commutation applications with precision and quality craftsmanship.
Product Specifications
Specifications Ac Ripple Voltage
The sum of the DC voltage and peak AC ripple should not exceed the capacitor's VDC rating.Additionally, the AC component should not exceed:20 % of VDC at 60 Hz10 % of VDC at 400 Hz5 % of VDC at 1 kHz1% of VDC at 10 kHz
Specifications Can Construction
Drawn Plated Steel Cans (Welded Steel, Aluminum or Stainless Steel Available) | Epoxy Paint
Specifications Cap
10 µF
Specifications Capacitance Range
0.25 to 15 µF
Specifications Capacitance Tolerance
±10% Standard
Specifications Dielectric
Kraft paper and polypropylene with environmentally compatible impregnant

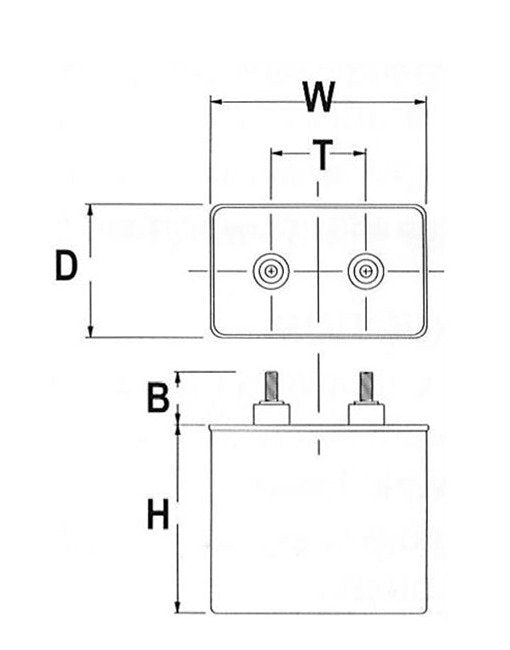

Specifications Dimension B
1.25
Specifications Dimension D
3.75
Specifications Dimension H
5.75
Specifications Dimension T
2.00
Specifications Dimension W
4.56
Specifications Insulation Resistance At 25c Typical
25000 MΩ
Specifications Operating Temperature
-40 to +90 ºC
Specifications Shape
Rectangular
Specifications Voltage Dc
2000 V
