Optris Infrared Thermometer 1.6 µm Spectral Range
Optris Infrared Thermometer 1.6 µm Spectral Range
SKU:HIG-029f21
High-performance Infrared Thermometer for precise temperature readings in metal applications. Features dual laser technology and a 1.6 µm spectral range.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Optris Infrared Thermometer 1.6 µm Spectral Range
$1,899.99
Quantity: 1
Claim Your Seller Account
Optris Infrared Thermometer 1.6 µm Spectral Range
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

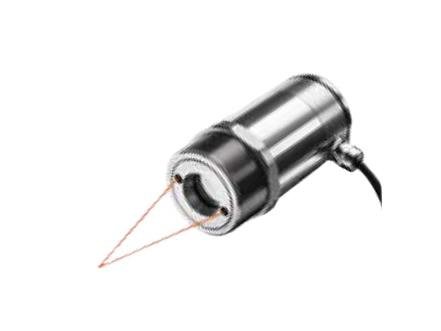

Enhance your temperature measurement capabilities with the Optris Infrared Thermometer featuring a high optical resolution and dual laser technology. Manufactured by Optris Infrared Sensing, this thermometer boasts a single-piece two-wire sensor with electronics in the sensing head for precise metal measurements. With a spectral range of 1.6 µm, this thermometer provides accurate temperature readings from 385 to 1600 ºC (725 to 2912 ºF). The optical resolution of 300:1 and a fast response time of 10 ms ensure efficiency and accuracy in your measurement processes.
Product Specifications
Accessories Air Purges And Protective Housings
ACCTAPMH - Air purge collar CTratioACCTLAP - Air purge collar CxL/CxVACCTLW - Water cooled housing CxL/CxV, stainless steel, for Tamb up to 175 ºCACCTLCJA - Cooling Jacket AdvancedACCJAAPLS - Air purge laminar for Cooling Jacket AdvancedCooling Jacket Advanced with air purge laminarACCTLAP - Air purge collarACCTLW - Water cooled housingCooling sensing head + purging of optics
Accessories Combinations
ACHAMA - Mounting adapter + ACHAST300 + ACHAPA - Sighting tube + pipe adapter = ACCTLRM - Furnace wall mount for CSlaser/CTlaser
Accessories Mechanical Accessories
ACCTLFB - Mounting bracket, adjustable in one axisACCTLAB - Mounting bracket, adjustable in two axesACHAMA - Mounting Adapter: Mounting and pipe flange including screwsACCTRAIL - Rail mount adapter for CT electronics
Accessories Optical Accessories
ACHAST300 + ACHAPA - Sighting tube M48x1,5, 300 mm length + pipe adapter with M48x1,5 internal thread for Cooling JacketACCJAFPCTL + ACCJAPWCTLSW - Front part + Focusing unit with protective window for Cooling Jacket
Specifications Accuracy
±(0.3% Tmeas +2 ºC) | ±(0.3% Tmeas +4 ºF)
Specifications Classificationspecial Features
Single-Piece Two-Wire Sensor with Electronics in Sensing Head for Measurement of Metal
Specifications Detector
Intended InGaAs
Specifications Direct Current Dc Power Supply Voltage
5 to 30 V
Specifications Maximum Electronics Ambient Temperature Tamb
85 ºC | 185 ºF
Specifications Maximum Head Ambient Temperature Tamb
85 ºC | 185 ºF
Specifications Minimum Head Ambient Temperature Tamb
-20 ºC | -4 ºF
Specifications Optical Resolution
300:1
Specifications Response Time At 90 Percent
10 ms
Specifications Sighting
Double Laser
Specifications Smallest Spot Cf Opticsadditional Cf Lens At 150
0.5 mm
Specifications Smallest Spot Cf Opticsadditional Cf Lens At 59 I
0.02 in
Specifications Smallest Spot Sf Optics At 1100 Millimeter Mm
3.7 mm
Specifications Smallest Spot Sf Optics At 4331 Inch In
0.02 in
Specifications Spectral Range
1.6 µm
Specifications Standard Cable Length Options
15 m | 3 m | 8 m | 26.2 ft | 49.2 ft | 9.8 ft
Specifications Temperature Ranges
385 to 1600 ºC | 725 to 2912 ºF
Specifications Temperature Resolution
0.1 K
Specifications Thread Sensing Head
M48 x 1.5
