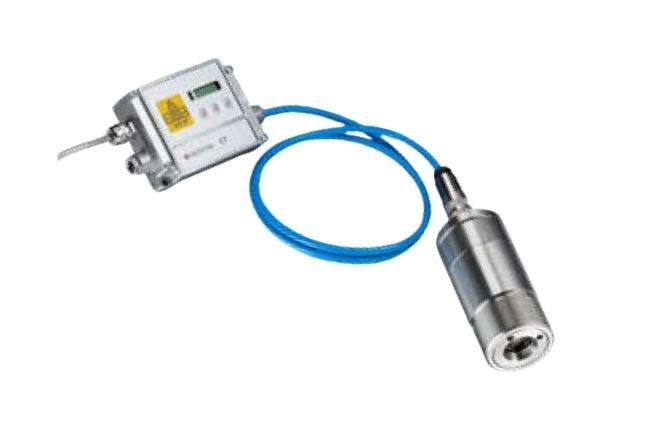

Experience unmatched precision with the Optris Infrared Video Thermometer featuring a patented cross hair laser and video channel for precise target visualization and location. With a temperature range of 200 to 1500ºC, this thermometer offers exceptional accuracy (±0.3%) and swift response times (1 ms). Its interchangeable sensing head, optical resolution of 300:1, and advanced sighting capabilities make it a versatile tool for low-temperature metal measurements. Scalable via software, it meets the most stringent institutional procurement standards, ensuring top-notch performance in industrial settings.
Product Specifications
Specifications Accuracy
±(0.3% Tmeas +2 ºC) | ±(0.3% Tmeas +4 ºF)
Specifications Additional Alarm Output Current Open Collector
50 mA
Specifications Additional Alarm Output Voltage Open Collector
24 V
Specifications Cable Length Options
5 m | 10 m | 16.4 ft | 32.8 ft
Specifications Classificationspecial Features
Two-Piece Sensor with Electronic Box for Low Temperature Measurement of Metals, Video Camera and Cross Hair Laser
Specifications Detector
Extended InGaAs
Specifications Direct Current Dc Power Supply Voltage
8 to 36 V
Specifications Functional Number
3
Specifications Maximum Electronics Ambient Temperature Tamb
85 ºC | 185 ºF
Specifications Maximum Head Ambient Temperature Tamb
85 ºC | 185 ºF
Specifications Maximum Head Cable Shortening
6 m | 19.7 ft
Specifications Minimum Head Ambient Temperature Tamb
-20 ºC | -4 ºF
Specifications Note For Temperature Ranges
Specifications available for object temperatures ⥠lower measurement range 50 ºC (122 ºF)Scalable Via Software
Specifications Optical Resolution
300:1
Specifications Response Time At 90 Percent
1 ms
Specifications Sensing Head Exchangeable
+ CT
Specifications Sighting
Video Camera and Cross Hair Laser
Specifications Smallest Spot Cf Optics At 35 Inch In
0.01 in
Specifications Smallest Spot Cf Optics At 90 Millimeter Mm
0.3 mm
Specifications Smallest Spot Sf Optics At 200 Millimeter Mm
0.7 mm
Specifications Smallest Spot Sf Optics At 79 Inch In
0.03 in
Specifications Spectral Range
2.3 µm
Specifications Standard Cable Length
3 m | 9.8 ft
Specifications Temperature Ranges
200 to 1500 ºC | 392 to 2732 ºF
Specifications Temperature Resolution
0.1 K
Specifications Thread Sensing Head
M48 x 1.5
