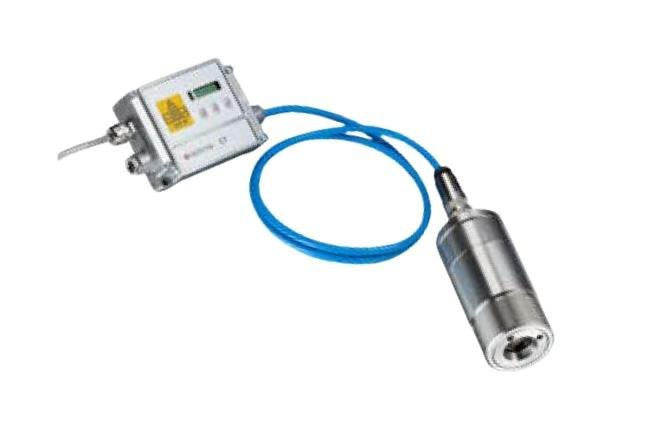

Experience unparalleled accuracy and visualization with the Optris Infrared Video Thermometer featuring a patented cross hair laser and video channel. This high-performance instrument, designed by Optris Infrared Sensing, offers a temperature range of 490 to 2000ºC with a customizable spectral range of 1.6 µm. Its two-piece sensor design, interchangeable sensing head, and robust capabilities make it ideal for precise high-temperature metal measurements. With a response time of just 1 ms and exceptional temperature resolution, this thermometer is a top choice for industrial, research, and government applications.
Product Specifications
Specifications Accuracy
±(0.3% Tmeas +2 ºC) | ±(0.3% Tmeas +4 ºF)
Specifications Additional Alarm Output Current Open Collector
50 mA
Specifications Additional Alarm Output Voltage Open Collector
24 V
Specifications Cable Length Options
5 m | 10 m | 16.4 ft | 32.8 ft
Specifications Classificationspecial Features
Two-Piece Sensor with Electronic Box for High Temperature Measurement of Metals, Video Camera and Cross Hair Laser
Specifications Detector
Intended InGaAs
Specifications Direct Current Dc Power Supply Voltage
8 to 36 V
Specifications Functional Number
3
Specifications Maximum Electronics Ambient Temperature Tamb
85 ºC | 185 ºF
Specifications Maximum Head Ambient Temperature Tamb
85 ºC | 185 ºF
Specifications Maximum Head Cable Shortening
6 m | 19.7 ft
Specifications Minimum Head Ambient Temperature Tamb
-20 ºC | -4 ºF
Specifications Note For Temperature Ranges
Scalable Via Software
Specifications Response Time At 90 Percent
1 ms
Specifications Sensing Head Exchangeable
+ CT
Specifications Sighting
Video Camera and Cross Hair Laser
Specifications Smallest Spot Cf Optics At 35 Inch In
0.01 in
Specifications Smallest Spot Cf Optics At 90 Millimeter Mm
0.3 mm
Specifications Smallest Spot Sf Optics At 200 Millimeter Mm
0.7 mm
Specifications Smallest Spot Sf Optics At 79 Inch In
0.03 in
Specifications Spectral Range
1.6 µm
Specifications Standard Cable Length
3 m | 9.8 ft
Specifications Temperature Ranges
490 to 2000 ºC | 914 to 3632 ºF
Specifications Temperature Resolution
0.1 K
Specifications Thread Sensing Head
M48 x 1.5
