Orlock™ Steel 100 Degree Countersunk Head Rivet, 7.8mm x 17.5mm
Orlock™ Steel 100 Degree Countersunk Head Rivet, 7.8mm x 17.5mm
SKU:ORL-42e304
High-strength Orlock™ Steel Rivet: Secure seats, frames, hinges, and axles with confidence. Meets industry standards.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Orlock™ Steel 100 Degree Countersunk Head Rivet, 7.8mm x 17.5mm
$49.99
Quantity: 1
Claim Your Seller Account
Orlock™ Steel 100 Degree Countersunk Head Rivet, 7.8mm x 17.5mm
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

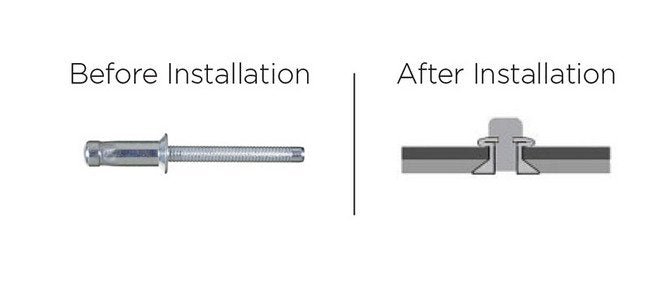

The Orlock™ Steel 100 Degree Countersunk Head Rivet is a high-strength, double-locking structural fastener designed for secure seat installations in interior applications, trailer frames, hinges, axes, and locking systems. With a body made of low carbon steel and zinc plated chromium VI-free passivation, this rivet offers exceptional shear and tensile forces, providing a vibration-resistant joint. Ideal for rail transport applications, this rivet meets stringent industry standards for durability and reliability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Applications Rail Transport Application
TrainsThis extra-large diameter, Orlock, structural rivet provides the perfect solution for train assembly lines. The rivet provides a highly secure, vibration-resistance joint and is the ideal alternative to nuts, bolts and screws.
Nominal Dimensions Body Length
17.5 mm | 0.689 in
Nominal Dimensions Diameter
7.8 mm | 5/16 in
Nominal Dimensions Drillhole Size
8.0 to 8.3 mm | 0.315 to 0.327 in
Nominal Dimensions Head Diameter
14.5 mm | 0.571 in
Nominal Dimensions Head Thickness
3.40 mm | 0.134 in
Nominal Dimensions Mandrel Diameter
5.12 mm | 0.202 in
Nominal Dimensions Maximum Grip Range
10.0 mm | 0.394 in
Nominal Dimensions Minimum Grip Range
7.0 mm | 0.276 in
Nominal Forces Nominal Shear Force
1400 kgf | 3087 lbf
Nominal Forces Nominal Tensile Force
750 kgf | 1654 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free Passivation
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Orlock⢠| Ornit
Technical Specs Carton Quantity
1000
Technical Specs Head Style
Countersunk
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free Passivation
Technical Specs Mandrel Material
Carbon Steel
