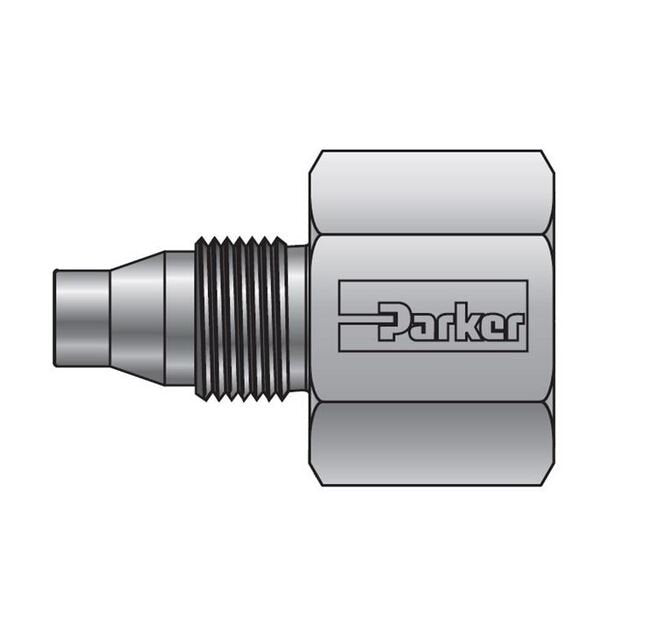

Parker GM7 MPI™ Male to Female NPT Compression Fitting
Parker GM7 MPI™ Male to Female NPT Compression Fitting
SKU:FIT-5d0ab5
Secure and durable Parker GM7 MPI™ Male to Female NPT Compression Fitting for high-pressure industrial applications.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Parker GM7 MPI™ Male to Female NPT Compression Fitting
$39.99
Quantity: 1
Claim Your Seller Account
Parker GM7 MPI™ Male to Female NPT Compression Fitting
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker GM7 MPI™ Male to Female NPT Compression Fitting, developed by original Patent Holder Parker Hannifin, offers a reliable and gas-tight connection suitable for diverse industrial applications, including offshore oil platforms and research facilities. With a working pressure of 15,000 psi and compatibility with various tubing materials, such as 316 SS and 2507 Super Duplex, this fitting is ideal for handling liquids, gases, and chemicals. Featuring corrosion-resistant Parker Suparcase® ferrules, a molybdenum disulfide-coated nut, and ASME standards compliance, the GM7 ensures secure and durable performance.
Product Specifications

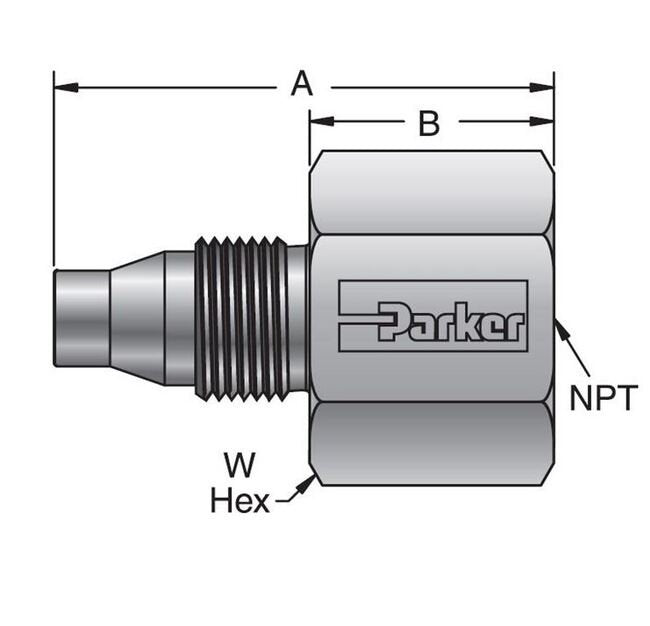

Dimensions A
1.84 in
Dimensions B
.85 in
Dimensions Connection Type
MPI™ to FNPT
Dimensions Female Npt End
1/4
Dimensions Mpi Male Thread
3/8
Dimensions Npt Thread
1/4 - 18
Dimensions Working Mawp Pressure
15000 psig
Dimensions W Hex
1 in
Specifications Assembly
MPI™ Fittings are assembled with standard hand tools up to 3/4" size. 1-1/2 turns past finger tight is all that is needed, 3/4 and 1 inch 316 SS tubing and 3/4 and 1 inch 2507 Tubing must be hydraulically preset. Note: All sizes can be hydraulically preset using the Parker Preset Tooling.
Specifications Dedication To Quality
Our resources and vast product line are available through our worldwide distribution network. For more information regarding our products and services, please contact your authorized Parker Instrumentation Distributor.
Specifications Engineering Standards Used
Parker Hannifin has designed all fittings and valves using the following ASME Standards and associated Safety Factors: ASME B31.1 Power Piping ASME B31.3 Process Piping
Specifications Features
Every MPI™ Fitting has the features shown below:Front ferrule with corrosion-resistant Parker Suparcase® forms a seal between the tube, body and ferrule. It also provides a mechanical hold on the tube.Back ferrule with corrosion-resistant Parker Suparcase® provides a strong mechanical hold on the tube.Longer thread area for improved resistance to pressure and load on the ferrules.Molybdenum disulfide-coated inverted nut helps prevent galling, provides easier assembly, and permits multiple remakes.Long tube-support area improves resistance to vibration and line loads.
Specifications Materials And Identification
Standard MPI™ Fittings and Valves are made of Heat Code Traceable 316 SS or optional 2507 Super Duplex materials. Tubing and fitting materials should be selected based on compatibility with the fluid or gas media. Part numbers for MPI™ Fittings use symbols that identify their style, size, and composition. 2507 material is easily identified by a groove in the gland nut hex.
