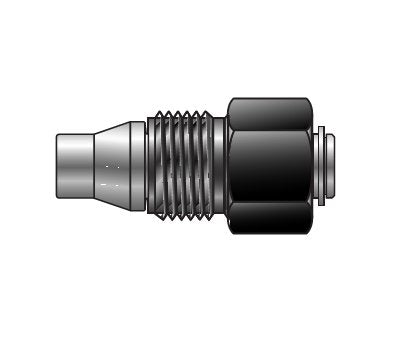

Parker Hannifin 3/8" MPI™ Plug Assembly - FNMP7
Parker Hannifin 3/8" MPI™ Plug Assembly - FNMP7
SKU:FIT-156f4c
Achieve gas-tight connections under high pressures with Parker Hannifin's FNMP7 MPI™ Plug Assembly. Compliant with industry standards, perfect for oil platforms, labs, and facilities.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Parker Hannifin 3/8" MPI™ Plug Assembly - FNMP7
$34.99
Quantity: 1
Claim Your Seller Account
Parker Hannifin 3/8" MPI™ Plug Assembly - FNMP7
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Ensure gas-tight, secure connections with the Parker Hannifin FNMP7 MPI™ Plug Assembly. Engineered for operating pressures up to 15,000 psi, this assembly features corrosion-resistant Parker Suparcase® ferrules, longer thread area for improved pressure resistance, and molybdenum disulfide-coated nut for easy assembly. Compliant with industry standards, including Heat Code Traceable 316 SS materials and MPI™ working pressures. Ideal for off-shore oil platforms, research labs, and facilities requiring reliable fittings for diverse media. Trust Parker for quality and performance.
Product Specifications

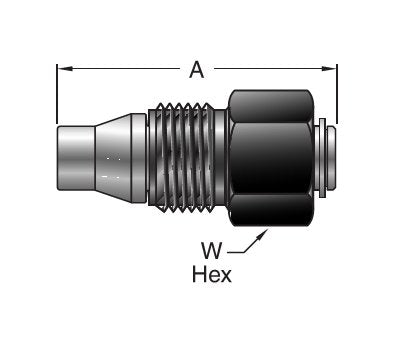

Dimensions A
1.65 in
Dimensions Connection Type
MPI
Dimensions Mpi Size
3/8
Dimensions Working Mawp Pressure
15000 psig
Dimensions W Hex
11/16 in
Specifications Assembly
MPI™ Fittings are assembled with standard hand tools up to 3/4" size. 1-1/2 turns past finger tight is all that is needed, (3/4" and 1" sizes on 2507 Super Duplex tubing must be hydraulically set). All sizes can be preset with a Parker Hydraulic Preset Tool.
Specifications Dedication To Quality
Our resources and vast product line are available through our worldwide distribution network. For more information regarding our products and services, please contact your authorized Parker Instrumentation Distributor.
Specifications Engineering Standards Used
The maximum pressure rating is marked on each fitting. MPI™ working pressures to be determined by selected tubing. Please see tables on pages 10 and 11 for specific working pressures. Size 4 (1/4") MPI™ - to 15,000 psi Size 6 (3.8") MPI™ - to 15,000 psi Size 8 (1/2") MPI™ - to 15,000 psi Size 9 (9/16") MPI™ - to 15,000 psi Size 12 (3/4") MPI™ - to 15,000 psi Size 16 (1") MPI™ - to 12,500 psi using 316 SS MPI tubing, 15,000 psi using MPI 2507 Super Duplex tubing with -XF Ferrule Option Note: Tube and pipe thread sizes are designated by the number of sixteenths of an inch (1/4” tube = 4/16” or 4). See "How to Order" on page 8 for additional information.
Specifications Features
Every MPI™ Fitting has the features shown below:Front ferrule with corrosion-resistant Parker Suparcase® forms a seal between the tube, body and ferrule. It also provides a mechanical hold on the tube.Back ferrule with corrosion-resistant Parker Suparcase® provides a strong mechanical hold on the tube.Longer thread area for improved resistance to pressure and load on the ferrules.Molybdenum disulfide-coated inverted nut helps prevent galling, provides easier assembly, and permits multiple remakes.Long tube-support area improves resistance to vibration and line loads.
Specifications Materials And Identification
Standard MPI™ Fittings and Valves are made of Heat Code Traceable 316 SS or optional 2507 Super Duplex materials. Tubing and fitting materials should be selected based on compatibility with the fluid or gas media. Part numbers for MPI™ Fittings use symbols that identify their style, size, and composition. 2507 material is easily identified by a groove in the gland nut hex.
