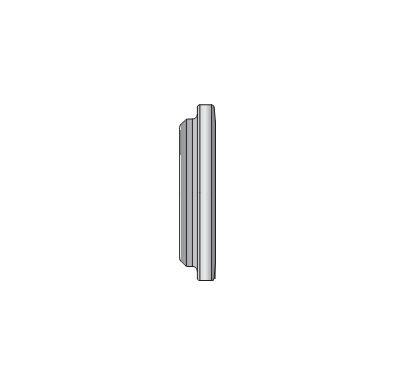

Parker Hannifin MPI™ Back Ferrule Set
Parker Hannifin MPI™ Back Ferrule Set
SKU:FIT-60fb72
Achieve secure, gas-tight connections with Parker Hannifin MPI™ Back Ferrule Set for up to 15,000 psi applications. Easy to install and compatible with various materials.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Parker Hannifin MPI™ Back Ferrule Set
$29.99
Quantity: 1
Claim Your Seller Account
Parker Hannifin MPI™ Back Ferrule Set
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Hannifin MPI™ Back Ferrule Set ensures secure and gas-tight connections for various applications, including off-shore oil platforms and research facilities. Made of Heat Code Traceable 316 SS or optional 2507 Super Duplex materials, this set includes ferrules and compression gland nut for easy installation. With maximum pressure ratings up to 15,000 psi, these fittings are ideal for handling liquids, gases, or chemicals, offering reliability and durability in demanding environments.
Product Specifications
Dimensions Ferrule Sets Per Holder
8

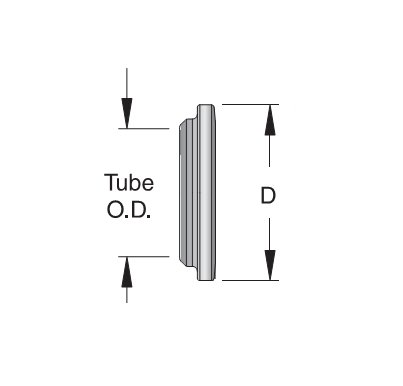

Dimensions Mpbf Ferrule Od
.78 in
Dimensions Tube Od
9/16 in
Specifications Assembly
MPI™ Fittings are assembled with standard hand tools up to 3/4" size. 1-1/2 turns past finger tight is all that is needed, (3/4" and 1" sizes on 2507 Super Duplex tubing must be hydraulically set). All sizes can be preset with a Parker Hydraulic Preset Tool.
Specifications Dedication To Quality
Our resources and vast product line are available through our worldwide distribution network. For more information regarding our products and services, please contact your authorized Parker Instrumentation Distributor.
Specifications Materials And Identification
Standard MPI™ Fittings and Valves are made of Heat Code Traceable 316 SS or optional 2507 Super Duplex materials. Tubing and fitting materials should be selected based on compatibility with the fluid or gas media. Part numbers for MPI™ Fittings use symbols that identify their style, size, and composition. 2507 material is easily identified by a groove in the gland nut hex.
Specifications Mpi Fittings Pressure Ratings
The maximum pressure rating is marked on each fitting. MPI™ working pressures to be determined by selected tubing. Please see tables on pages 10 and 11 for specific working pressures. Size 4 (1/4") MPI™ - to 15,000 psi Size 6 (3.8") MPI™ - to 15,000 psi Size 8 (1/2") MPI™ - to 15,000 psi Size 9 (9/16") MPI™ - to 15,000 psi Size 12 (3/4") MPI™ - to 15,000 psi Size 16 (1") MPI™ - to 12,500 psi using 316 SS MPI tubing, 15,000 psi using MPI 2507 Super Duplex tubing with -XF Ferrule Option Note: Tube and pipe thread sizes are designated by the number of sixteenths of an inch (1/4" tube = 4/16" or 4). See "How to Order" on page 8 for additional information.
