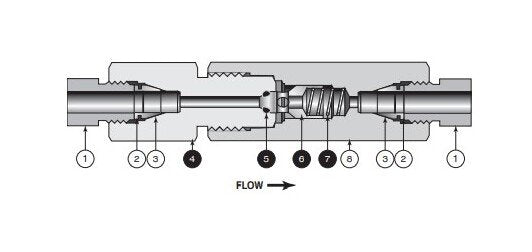

The Parker MAC and MACB Check Valves from the MPI™ Specialty Valves and Filters series are designed for precise control and reliable performance in fluid systems. The MACB series features an all-metal construction, allowing for operation up to 1000°F, with a unique ball and poppet design ensuring secure in-line seating. On the other hand, the MAC series with O-Ring provides tight shut-off and unidirectional flow for both liquids and gases. These valves offer high reliability and are ideal for applications where leak-tight shut-off is not mandatory, meeting stringent industry requirements.
Product Specifications

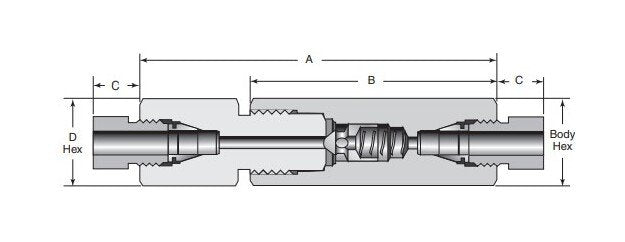

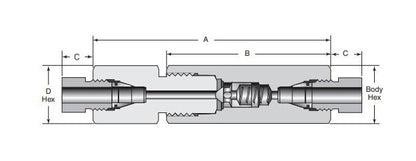

Dimensions A
5.56 in
Dimensions B
3.94 in
Dimensions Body Hex
1 3/8 in
Dimensions C
.69 in
Dimensions Connection
1/2 MPI™
Dimensions D Hex
1 3/16 in
Dimensions Orifice
.359 in
Dimensions Pressure
15000 psi | 1035 bar
Dimensions Rated Cv
2.30
Dimensions Repair Kits
R8MACB-2507
Dimensions Tubing Od
1/2
Specifications Note
Temperature range for standard Fluorocarbon Rubber O-RING check valves is 0°F to 400°F (-18°C to 204°C). For temperatures under 0°F to -423°F use PTFE o-ring (-TO). If under -110°F (-79°C) Low Temperature Spring must be used (-LT option).
