Parker MAC and MACB Check Valves - MPI™ Specialty Valves
Parker MAC and MACB Check Valves - MPI™ Specialty Valves
SKU:VAL-d6c4fb
Ensure leak-tight flow control with Parker MAC and MACB Check Valves. Reliable, high-temperature resistant valves for liquids and gases.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Parker MAC and MACB Check Valves - MPI™ Specialty Valves
$349.99
Quantity: 1
Claim Your Seller Account
Parker MAC and MACB Check Valves - MPI™ Specialty Valves
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

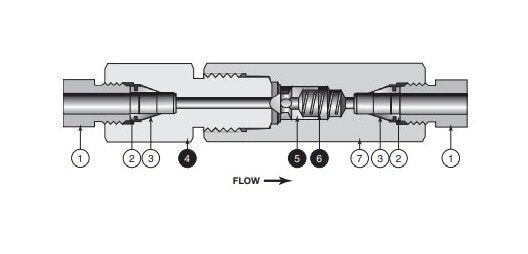

The Parker MAC and MACB Check Valves from the MPI™ Specialty Valves and Filters category offer reliable unidirectional flow control and prevent reverse flow efficiently. The MACB series, featuring a Ball Check Valve design, ensures leak-tight shut-off, with all-metal components allowing usage in high-temperature environments up to 1000°F (538°C). On the other hand, the MAC series, incorporating an O-Ring Check Valve, delivers tight shut-off for liquids and gases, guaranteeing high reliability. These valves maintain positive, in-line seating without any 'chatter', making them ideal for critical applications requiring precision and durability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

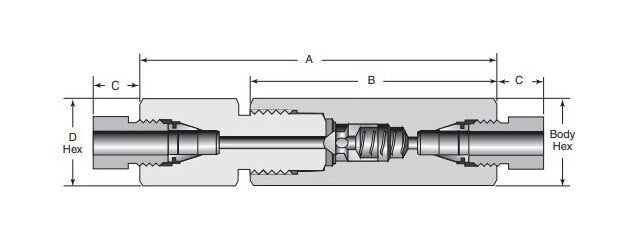

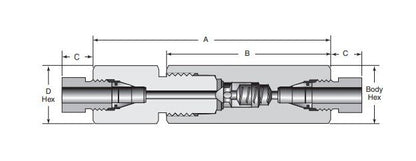

Dimensions A
8.71 in
Dimensions B
6.25 in
Dimensions Body Hex
2 1/8 in
Dimensions C
1.13 in
Dimensions Connection
1 MPI™
Dimensions D Hex
1 7/8 in
Dimensions Orifice
.688 in
Dimensions Pressure
15000 psi | 1035 bar
Dimensions Rated Cv
7.40
Dimensions Repair Kits
R16MAC-2507
Dimensions Tubing Od
1
Specifications Note
Min. oper. temperature for standard BALL check valves -110°F (-79°C). For low temperature option to -423°F (-252°C) add suffix-LT (Low temperature spring).
