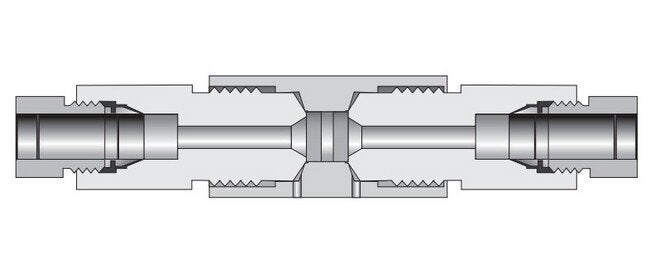

The Parker MAF Series Dual Disc Line Filter is an essential component for industrial, chemical, aerospace, and nuclear applications. With its dual-disc design, this filter efficiently traps large contaminant particles, protecting downstream components from clogging. Featuring replaceable filter elements with standard 35/65 micron sizes, easy maintenance, and compatibility with 2507 Super Duplex option, this filter ensures optimal performance and longevity in high-pressure systems.
Product Specifications

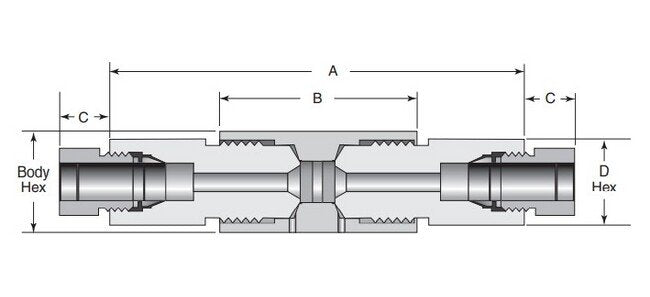

Dimensions A
5.99 in
Dimensions B
2.69 in
Dimensions Body Hex
1 3/8 in
Dimensions C
.75 in
Dimensions Connection
9/16 MPI™
Dimensions Cover Gland Torque
140 ft·lb
Dimensions D Hex
1 3/16 in
Dimensions Micron Size
35/65
Dimensions Orifice
.250 in
Dimensions Pressure
15000 psi | 1035 bar
Dimensions Tubing Od
9/16
Specifications Note
All filters furnished complete with connection components unless otherwise specified. All dimensions for reference only and subject to change.Parker Autoclave Engineers disc filters are designed to filter small amounts of process particles. It is recommended that all fluids are thoroughly cleaned prior to entering the higher pressure system. 2507 Super Duplex filters may be supplied with four flats in place of standard hex. Filter media is 316 SS. Pressure differential not to exceed 1,000 psi (69 bar) in a flowing condition.Larger micron size filter element is installed on the upstream (inlet) side.
