Parker MAN Series 2-Way Angle Valve - 15,000 psi, 3/8 MPI™ Connection
Parker MAN Series 2-Way Angle Valve - 15,000 psi, 3/8 MPI™ Connection
SKU:VAL-26fb2b
High-pressure Parker MAN Series 2-Way Angle Valve for precise control of liquid/gas media up to 15,000 psi. Durable, corrosion-resistant design.
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
Parker MAN Series 2-Way Angle Valve - 15,000 psi, 3/8 MPI™ Connection
$199.99
Quantity: 1
Claim Your Seller Account
Parker MAN Series 2-Way Angle Valve - 15,000 psi, 3/8 MPI™ Connection
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

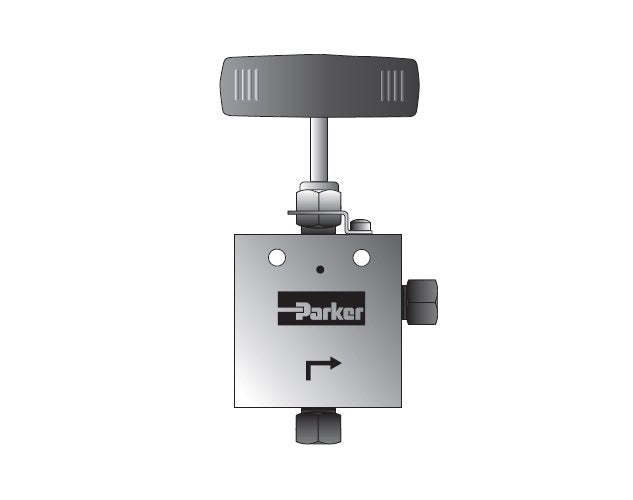

The Parker MAN Series 2-Way Angle Valve is a high-pressure needle valve engineered for precise control of liquid or gas media in demanding environments. With a pressure rating of up to 15,000 psi, this valve features a Double Ferrule MPI™ connection for secure, bubble-tight performance. Designed for MPI™ tube sizes ranging from 1/4" to 1", this valve offers exceptional versatility with five different body patterns. Its construction from CW 316 Stainless Steel ensures corrosion resistance and durability. The non-rotating stem design prevents galling, while the metal-to-metal seating delivers reliable shut-off. Ideal for applications requiring high pressure and temperature resilience, this valve combines performance and longevity.

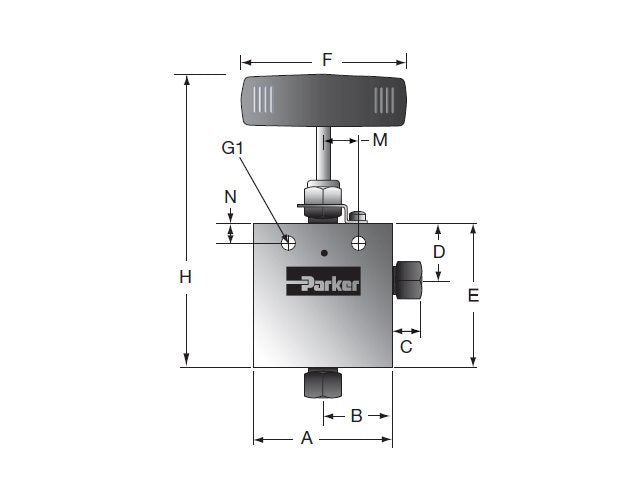

Product Specifications
Dimensions A
2.50 in
Dimensions B
1.25 in
Dimensions Block Thickness
1.00 in
Dimensions B Stem Repair Kit
RSM607
Dimensions C
.63 in
Dimensions Connection
3/8 MPI™
Dimensions D
1.19 in
Dimensions E
2.57 in
Dimensions F
3.00 in
Dimensions G1
.22 in
Dimensions H
5.00 in
Dimensions M
.63 in
Dimensions N
.38 in
Dimensions Orifice
.219 in
Dimensions Pressure
15000 psi
Dimensions Rated Cv
1.2
Dimensions R Stem Repair Kit
RSM608
Specifications Features
Valve flow capabilities closely match associated tubing bore sizes CW 316 Stainless Steel Material is Standard, 2507 Annealed Super Duplex as option Rising stem/barstock body design Non-rotating stem prevents stem/seat galling Metal-to-metal seating achieves bubble-tight shut-off, longer stem/seat life in abrasive flow, greater durability for repeated on/off cycles, unmatched temperature performance and excellent corrosion resistance Temperature range from -423°F (-252°C) to 1000°F (538°C) Standard PTFE packing provides dependable stem and body sealing from -423°F to 450°F, additional options include PTFE/Glass (25%) for temperatures to 600°F and Graphite Yarn for temperatures to 1000°F Choice of Vee (shutoff) or Regulating Flow Stem Tips Replaceable Seat Option available with Right Angle 2-way body style Optional N-Dura Stem and Seat Coating or Stellite material option for severe service available
Specifications Parker Mpi Connection Benefits
MPI™ Connections are designed for both liquids and gases. They can be used on MPI™ 1/8th Hard tubing, Autoclave Engineers Medium Pressure Tubing, or Thick Wall Instrumentation Tubing in both 316 SS and 2507 Super Duplex materials. Suparcase® Technology creates a Corrosion Resistant Ferrule set for a strong, mechanical hold Double Ferrule design is proven but not interchangeable with standard tube fittings Longer Thread Engagement improves resistance to pressure and load on ferrules Molybdenum Disulfide Coated Gland Nut prevents galling and makes assembly easier.
