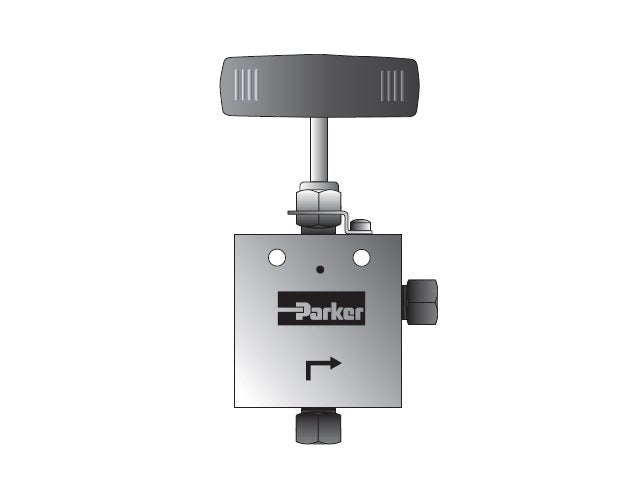

Parker MAN Series 2-Way Angle Valve with MPI™ Connection
Parker MAN Series 2-Way Angle Valve with MPI™ Connection
SKU:VAL-5b2e81
Parker MAN Series 2-Way Angle Valve: Precise control up to 15,000 psi, bubble-tight seal, corrosion-resistant MPI™ connection.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Parker MAN Series 2-Way Angle Valve with MPI™ Connection
$129.99
Quantity: 1
Claim Your Seller Account
Parker MAN Series 2-Way Angle Valve with MPI™ Connection
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker MAN Series 2-Way Angle Valve is expertly engineered for precise multi-turn control of liquid or gas media with pressure regulation or shutoff capabilities up to 15,000 psi. Featuring a Double Ferrule connection for quick setup and dependable bubble-tight performance, these valves are designed for MPI™ tube sizes ranging from 1/4" to 1". With valve flow capabilities matching tubing bore sizes, this valve ensures reliability and durability. Equipped with metal-to-metal seating for bubble-tight shut-off and non-rotating stem technology to prevent galling, these valves offer unmatched temperature performance and corrosion resistance. The valve's MPI™ connection benefits include corrosion-resistant ferrule sets, longer thread engagement for improved pressure resistance, and easier assembly with Molybdenum Disulfide Coated Gland Nut.
Product Specifications

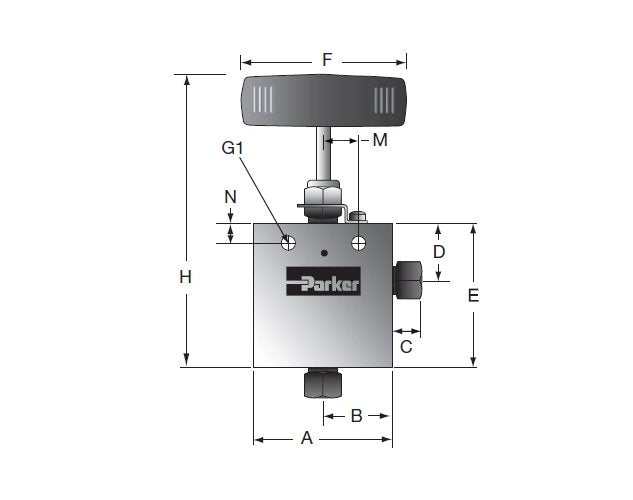

Dimensions A
3.00 in
Dimensions B
1.50 in
Dimensions Block Thickness
1.38 in
Dimensions B Stem Repair Kit
RSM907
Dimensions C
.75 in
Dimensions Connection
9/16 MPI™
Dimensions D
1.75 in
Dimensions E
3.58 in
Dimensions F
4.00 in
Dimensions G1
.34 in
Dimensions H
6.60 in
Dimensions M
.69 in
Dimensions N
.50 in
Dimensions Orifice
.359 in
Dimensions Pressure
15000 psi
Dimensions Rated Cv
2.6
Dimensions R Stem Repair Kit
R15SM908
Specifications Features
Valve flow capabilities closely match associated tubing bore sizes CW 316 Stainless Steel Material is Standard, 2507 Annealed Super Duplex as option Rising stem/barstock body design Non-rotating stem prevents stem/seat galling Metal-to-metal seating achieves bubble-tight shut-off, longer stem/seat life in abrasive flow, greater durability for repeated on/off cycles, unmatched temperature performance and excellent corrosion resistance Temperature range from -423°F (-252°C) to 1000°F (538°C) Standard PTFE packing provides dependable stem and body sealing from -423°F to 450°F, additional options include PTFE/Glass (25%) for temperatures to 600°F and Graphite Yarn for temperatures to 1000°F Choice of Vee (shutoff) or Regulating Flow Stem Tips Replaceable Seat Option available with Right Angle 2-way body style Optional N-Dura Stem and Seat Coating or Stellite material option for severe service available
Specifications Parker Mpi Connection Benefits
MPI™ Connections are designed for both liquids and gases. They can be used on MPI™ 1/8th Hard tubing, Autoclave Engineers Medium Pressure Tubing, or Thick Wall Instrumentation Tubing in both 316 SS and 2507 Super Duplex materials. Suparcase® Technology creates a Corrosion Resistant Ferrule set for a strong, mechanical hold Double Ferrule design is proven but not interchangeable with standard tube fittings Longer Thread Engagement improves resistance to pressure and load on ferrules Molybdenum Disulfide Coated Gland Nut prevents galling and makes assembly easier.
