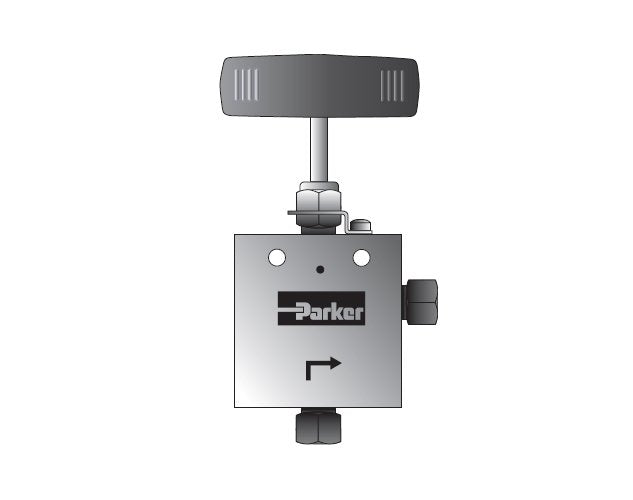

Parker MAN Series 2-Way Angle Valve with MPI™ Connections
Parker MAN Series 2-Way Angle Valve with MPI™ Connections
SKU:VAL-d71d80
Experience precise control with the Parker MAN Series 2-Way Angle Valve for liquid or gas media at up to 15,000 psi. Designed for MPI™ tube sizes, this valve ensures reliable performance and durability.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Parker MAN Series 2-Way Angle Valve with MPI™ Connections
$79.99
Quantity: 1
Claim Your Seller Account
Parker MAN Series 2-Way Angle Valve with MPI™ Connections
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker MAN Series 2-Way Angle Valve is expertly engineered for precise multi-turn control of liquid or gas media, offering regulation or shutoff options at pressures up to 15,000 psi. With a reliable Double Ferrule connection and five body patterns for versatile control, these valves are optimized for MPI™ tube sizes ranging from 1/4" to 1". Featuring superior materials like CW 316 Stainless Steel or optional 2507 Annealed Super Duplex, this valve ensures bubble-tight shut-off, extended durability, and excellent corrosion resistance. Designed with precision and performance in mind, the Parker MAN Series Valve delivers unmatched reliability in institutional and industrial applications.

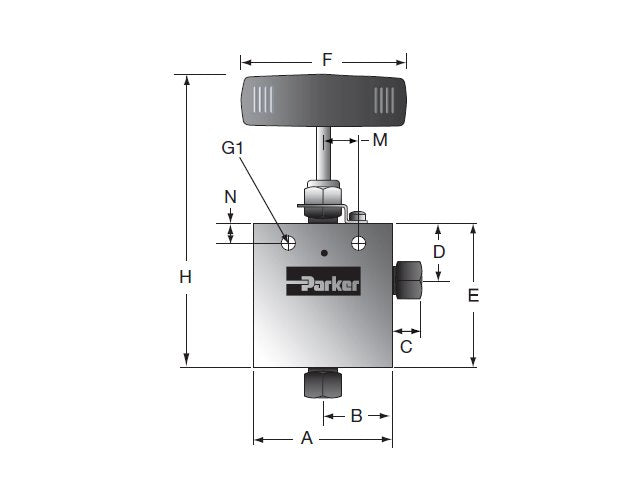

Product Specifications
Dimensions A
2.50 in
Dimensions B
1.25 in
Dimensions Block Thickness
1.00 in
Dimensions B Stem Repair Kit
RSM407
Dimensions C
.50 in
Dimensions Connection
1/4 MPI™
Dimensions D
1.19 in
Dimensions E
2.57 in
Dimensions F
3.00 in
Dimensions G1
.22 in
Dimensions H
5.00 in
Dimensions M
.63 in
Dimensions N
.38 in
Dimensions Orifice
.125 in
Dimensions Pressure
15000 psi
Dimensions Rated Cv
0.47
Dimensions R Stem Repair Kit
RSM408
Specifications Features
Valve flow capabilities closely match associated tubing bore sizes CW 316 Stainless Steel Material is Standard, 2507 Annealed Super Duplex as option Rising stem/barstock body design Non-rotating stem prevents stem/seat galling Metal-to-metal seating achieves bubble-tight shut-off, longer stem/seat life in abrasive flow, greater durability for repeated on/off cycles, unmatched temperature performance and excellent corrosion resistance Temperature range from -423°F (-252°C) to 1000°F (538°C) Standard PTFE packing provides dependable stem and body sealing from -423°F to 450°F, additional options include PTFE/Glass (25%) for temperatures to 600°F and Graphite Yarn for temperatures to 1000°F Choice of Vee (shutoff) or Regulating Flow Stem Tips Replaceable Seat Option available with Right Angle 2-way body style Optional N-Dura Stem and Seat Coating or Stellite material option for severe service available
Specifications Parker Mpi Connection Benefits
MPI™ Connections are designed for both liquids and gases. They can be used on MPI™ 1/8th Hard tubing, Autoclave Engineers Medium Pressure Tubing, or Thick Wall Instrumentation Tubing in both 316 SS and 2507 Super Duplex materials. Suparcase® Technology creates a Corrosion Resistant Ferrule set for a strong, mechanical hold Double Ferrule design is proven but not interchangeable with standard tube fittings Longer Thread Engagement improves resistance to pressure and load on ferrules Molybdenum Disulfide Coated Gland Nut prevents galling and makes assembly easier.
