Parker MAN Series 2-Way Angle Valve with MPI™ Tube Connections
Parker MAN Series 2-Way Angle Valve with MPI™ Tube Connections
SKU:VAL-7807c0
Precisely control gas or liquid media with Parker MAN Series Angle Valve, rated up to 15,000 psi. Reliable, durable, and compliant with industry standards.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Parker MAN Series 2-Way Angle Valve with MPI™ Tube Connections
$149.99
Quantity: 1
Claim Your Seller Account
Parker MAN Series 2-Way Angle Valve with MPI™ Tube Connections
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

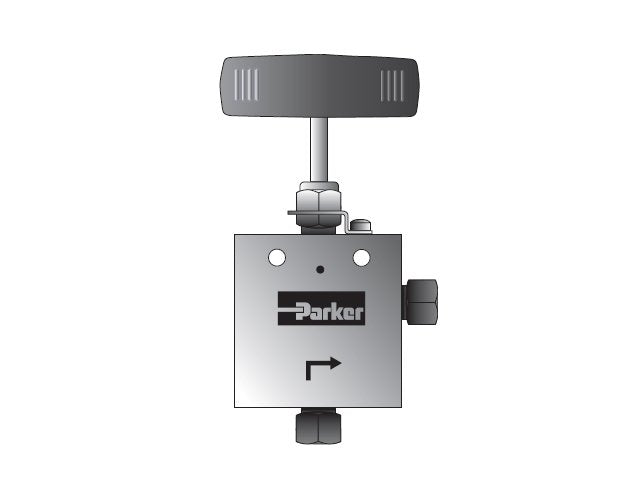

The Parker MAN Series 2-Way Angle Valve is engineered for precise control of liquid or gas media, offering regulation or shutoff functions at pressures up to 15,000 psi. Featuring a Double Ferrule connection for secure performance, this valve accommodates MPI™ tube sizes from 1/4" to 1", with various body patterns for versatile control options. Constructed with CW 316 Stainless Steel as standard and an option for 2507 Super Duplex, it ensures reliable operation in a wide temperature range. With features like non-rotating stem, metal-to-metal seating, and PTFE packing, this valve guarantees bubble-tight shut-off and extended durability. Ideal for applications requiring robust performance and compliance with industry standards.
Product Specifications

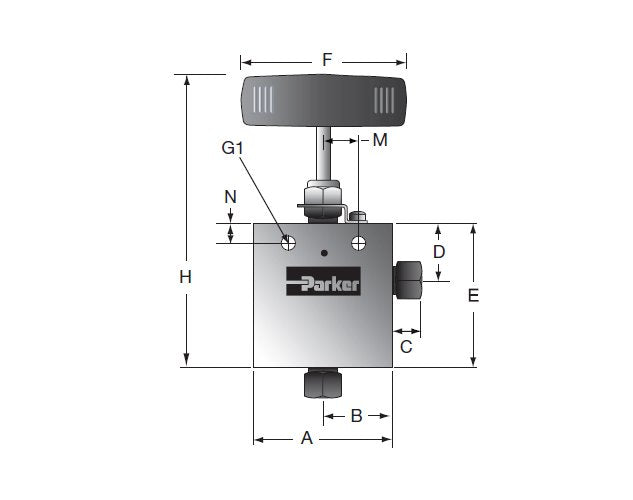

Dimensions A
4.12 in
Dimensions B
2.06 in
Dimensions Block Thickness
1.75 in
Dimensions B Stem Repair Kit
RSM1207
Dimensions C
.88 in
Dimensions Connection
3/4 MPI™
Dimensions D
2.25 in
Dimensions E
4.25 in
Dimensions F
10.35 in
Dimensions G1
.44 in
Dimensions H
7.42 in
Dimensions M
.88 in
Dimensions N
.62 in
Dimensions Orifice
.516 in
Dimensions Pressure
15000 psi
Dimensions Rated Cv
4.2
Dimensions R Stem Repair Kit
R15SM1208
Specifications Features
Valve flow capabilities closely match associated tubing bore sizes CW 316 Stainless Steel Material is Standard, 2507 Annealed Super Duplex as option Rising stem/barstock body design Non-rotating stem prevents stem/seat galling Metal-to-metal seating achieves bubble-tight shut-off, longer stem/seat life in abrasive flow, greater durability for repeated on/off cycles, unmatched temperature performance and excellent corrosion resistance Temperature range from -423°F (-252°C) to 1000°F (538°C) Standard PTFE packing provides dependable stem and body sealing from -423°F to 450°F, additional options include PTFE/Glass (25%) for temperatures to 600°F and Graphite Yarn for temperatures to 1000°F Choice of Vee (shutoff) or Regulating Flow Stem Tips Replaceable Seat Option available with Right Angle 2-way body style Optional N-Dura Stem and Seat Coating or Stellite material option for severe service available
Specifications Parker Mpi Connection Benefits
MPI™ Connections are designed for both liquids and gases. They can be used on MPI™ 1/8th Hard tubing, Autoclave Engineers Medium Pressure Tubing, or Thick Wall Instrumentation Tubing in both 316 SS and 2507 Super Duplex materials. Suparcase® Technology creates a Corrosion Resistant Ferrule set for a strong, mechanical hold Double Ferrule design is proven but not interchangeable with standard tube fittings Longer Thread Engagement improves resistance to pressure and load on ferrules Molybdenum Disulfide Coated Gland Nut prevents galling and makes assembly easier.
