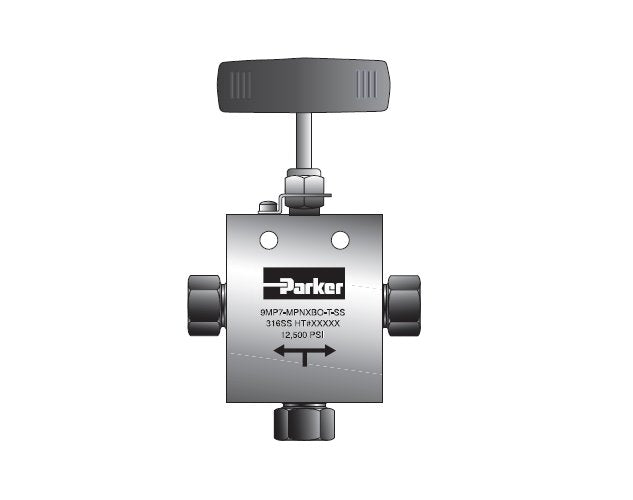

Parker MAN Series 3-Way/1 On-Pressure Valve with MPI™ Connection
Parker MAN Series 3-Way/1 On-Pressure Valve with MPI™ Connection
SKU:VAL-3501cb
Control liquid/gas media up to 15,000 psi with Parker MAN Series Valve. Reliable, precise, and compliant with ASME codes.
Regular price
$239.99
Regular price
Sale price
$239.99
Unit price
per
Initiate Order
Parker MAN Series 3-Way/1 On-Pressure Valve with MPI™ Connection
$239.99
Quantity: 1
Claim Your Seller Account
Parker MAN Series 3-Way/1 On-Pressure Valve with MPI™ Connection
$239.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker MAN Series 3-Way/1 On-Pressure Valve is engineered for precise control of liquid or gas media with options for regulation or shutoff up to 15,000 psi. Featuring a Double Ferrule connection for quick setup and reliable performance, these valves cater to MPI™ tube sizes ranging from 1/4" to 1". With various body patterns for diverse control needs, these valves offer bubble-tight sealing, non-rotating stem design, and superior durability. Designed to meet stringent industry standards, including ASME codes, these valves assure safe and efficient operation in demanding environments.
Product Specifications

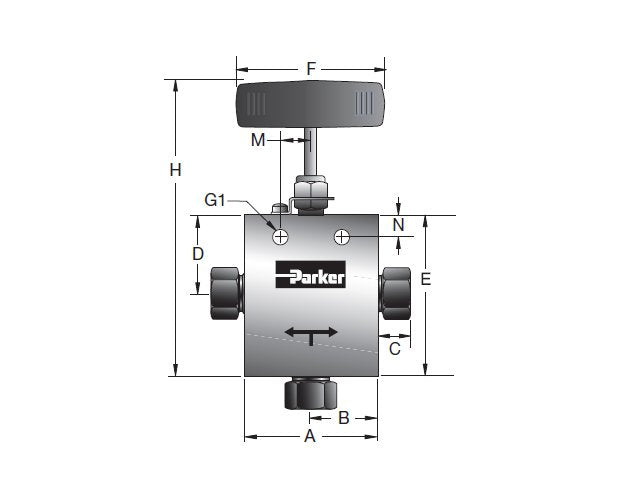

Dimensions A
4.75 in
Dimensions B
2.38 in
Dimensions Block Thickness
2.00 in
Dimensions B Stem Repair Kit
RSM1607
Dimensions C
1.13 in
Dimensions Connection
1 MPI™
Dimensions D
2.81 in
Dimensions E
5.44 in
Dimensions F
10.35 in
Dimensions G1
.56 in
Dimensions H
9.43 in
Dimensions M
1.25 in
Dimensions N
1.13 in
Dimensions Orifice
.688 in
Dimensions Pressure
15000 psi
Dimensions Rated Cv
7.8
Dimensions R Stem Repair Kit
R15SM1608
Specifications Features
Valve flow capabilities closely match associated tubing bore sizes CW 316 Stainless Steel Material is Standard, 2507 Annealed Super Duplex as option Rising stem/barstock body design Non-rotating stem prevents stem/seat galling Metal-to-metal seating achieves bubble-tight shut-off, longer stem/seat life in abrasive flow, greater durability for repeated on/off cycles, unmatched temperature performance and excellent corrosion resistance Temperature range from -423°F (-252°C) to 1000°F (538°C) Standard PTFE packing provides dependable stem and body sealing from -423°F to 450°F, additional options include PTFE/Glass (25%) for temperatures to 600°F and Graphite Yarn for temperatures to 1000°F Choice of Vee (shutoff) or Regulating Flow Stem Tips Replaceable Seat Option available with Right Angle 2-way body style Optional N-Dura Stem and Seat Coating or Stellite material option for severe service available
Specifications Parker Mpi Connection Benefits
MPI™ Connections are designed for both liquids and gases. They can be used on MPI™ 1/8th Hard tubing, Autoclave Engineers Medium Pressure Tubing, or Thick Wall Instrumentation Tubing in both 316 SS and 2507 Super Duplex materials. Suparcase® Technology creates a Corrosion Resistant Ferrule set for a strong, mechanical hold Double Ferrule design is proven but not interchangeable with standard tube fittings Longer Thread Engagement improves resistance to pressure and load on ferrules Molybdenum Disulfide Coated Gland Nut prevents galling and makes assembly easier.
