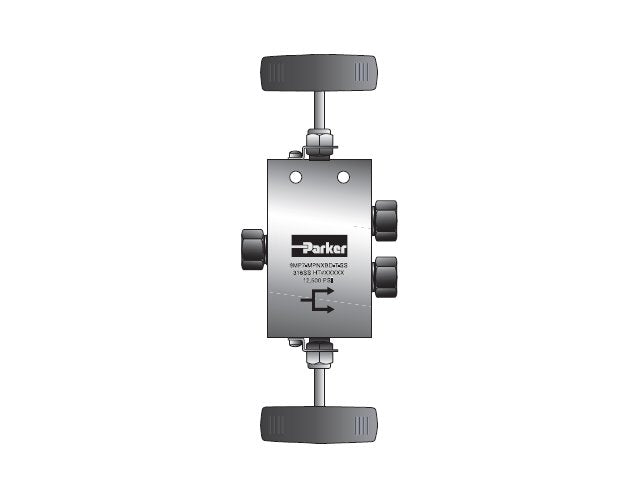

Parker MAN Series 3-Way/2-Stem Valve with MPI™ Connections
Parker MAN Series 3-Way/2-Stem Valve with MPI™ Connections
SKU:VAL-509f29
Precision control valve for liquid or gas media up to 15,000 psi, featuring reliable performance, corrosion resistance, and versatile MPI™ Connections.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Parker MAN Series 3-Way/2-Stem Valve with MPI™ Connections
$349.99
Quantity: 1
Claim Your Seller Account
Parker MAN Series 3-Way/2-Stem Valve with MPI™ Connections
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker MAN Series 3-Way/2-Stem Valve is designed for precise control of liquid or gas media at pressures up to 15,000 psi. With a Double Ferrule connection for easy installation and a choice of five body patterns, these valves offer reliable performance in a range of applications. Featuring non-rotating stems, metal-to-metal seating, and a temperature range from -423°F to 1000°F, these valves deliver durability, corrosion resistance, and bubble-tight shut-off. The MPI™ Connections ensure compatibility with various tubing materials, making them a versatile choice for industrial settings.

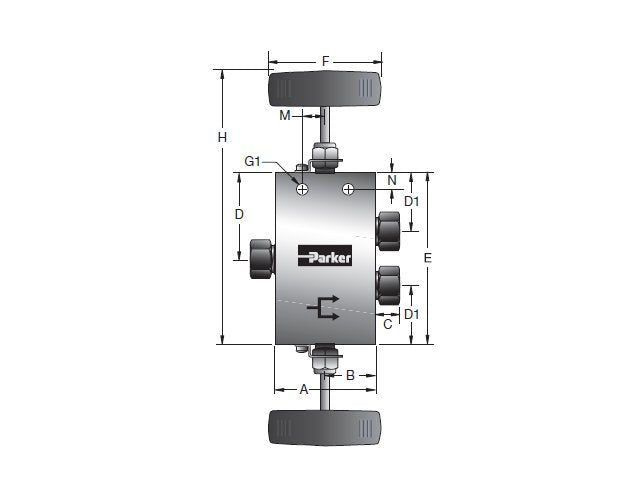

Product Specifications
Dimensions A
3.00 in
Dimensions B
1.50 in
Dimensions Block Thickness
1.38 in
Dimensions B Stem Repair Kit
RSM9075
Dimensions C
.69 in
Dimensions Connection
1/2 MPI™
Dimensions D
2.57 in
Dimensions D1
1.75 in
Dimensions E
5.13 in
Dimensions F
4.00 in
Dimensions G1
.34 in
Dimensions H
8.12 in
Dimensions M
.69 in
Dimensions N
.50 in
Dimensions Orifice
.312 in
Dimensions Pressure
15000 psi
Dimensions Rated Cv
1.3
Dimensions R Stem Repair Kit
RSM9085
Specifications Features
Valve flow capabilities closely match associated tubing bore sizes CW 316 Stainless Steel Material is Standard, 2507 Annealed Super Duplex as option Rising stem/barstock body design Non-rotating stem prevents stem/seat galling Metal-to-metal seating achieves bubble-tight shut-off, longer stem/seat life in abrasive flow, greater durability for repeated on/off cycles, unmatched temperature performance and excellent corrosion resistance Temperature range from -423°F (-252°C) to 1000°F (538°C) Standard PTFE packing provides dependable stem and body sealing from -423°F to 450°F, additional options include PTFE/Glass (25%) for temperatures to 600°F and Graphite Yarn for temperatures to 1000°F Choice of Vee (shutoff) or Regulating Flow Stem Tips Replaceable Seat Option available with Right Angle 2-way body style Optional N-Dura Stem and Seat Coating or Stellite material option for severe service available
Specifications Parker Mpi Connection Benefits
MPI™ Connections are designed for both liquids and gases. They can be used on MPI™ 1/8th Hard tubing, Autoclave Engineers Medium Pressure Tubing, or Thick Wall Instrumentation Tubing in both 316 SS and 2507 Super Duplex materials. Suparcase® Technology creates a Corrosion Resistant Ferrule set for a strong, mechanical hold Double Ferrule design is proven but not interchangeable with standard tube fittings Longer Thread Engagement improves resistance to pressure and load on ferrules Molybdenum Disulfide Coated Gland Nut prevents galling and makes assembly easier.
