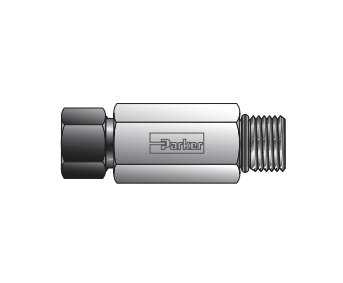

Parker MPI™ to SAE Male O-Ring Connector
Parker MPI™ to SAE Male O-Ring Connector
SKU:FIT-208e09
Secure, gas-tight Parker MPI™ to SAE Male O-Ring Connector for up to 15,000 psi; ASME-compliant, corrosion-resistant design.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Parker MPI™ to SAE Male O-Ring Connector
$49.99
Quantity: 1
Claim Your Seller Account
Parker MPI™ to SAE Male O-Ring Connector
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker MPI™ to SAE Male O-Ring Connector is a cutting-edge solution designed by the original Patent Holder for Medium Pressure Tube Fittings. Engineered for maximum security and gas-tight performance at pressures up to 15,000 psi, this connector excels in demanding environments like off-shore oil platforms and research facilities. Made to handle a range of fluids and chemicals, it is compatible with various tubing materials including 316 SS and Super Duplex MPI tubing. Featuring corrosion-resistant materials and compliance with ASME standards, every MPI™ Fitting is equipped with front and back ferrules, along with a molybdenum disulfide-coated inverted nut for easy assembly and durability. Parker's dedication to quality ensures unmatched reliability in critical applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

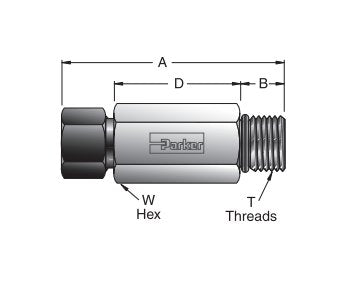

Dimensions A
1.94 in
Dimensions B
.47 in
Dimensions Connection Type
MPI™ to Straight Thread
Dimensions D
.97 in
Dimensions Mpi Size
1/4
Dimensions Sae End
3/8
Dimensions T Thread
9/16 - 18
Dimensions Working Mawp Pressure
12500 psig
Dimensions W Hex
11/16 in
Specifications Assembly
MPI™ Fittings are assembled with standard hand tools up to 3/4" size. 1-1/2 turns past finger tight is all that is needed, 3/4 and 1 inch 316 SS tubing and 3/4 and 1 inch 2507 Tubing must be hydraulically preset. Note: All sizes can be hydraulically preset using the Parker Preset Tooling.
Specifications Dedication To Quality
Our resources and vast product line are available through our worldwide distribution network. For more information regarding our products and services, please contact your authorized Parker Instrumentation Distributor.
Specifications Engineering Standards Used
Parker Hannifin has designed all fittings and valves using the following ASME Standards and associated Safety Factors: ASME B31.1 Power Piping ASME B31.3 Process Piping
Specifications Features
Every MPI™ Fitting has the features shown below:Front ferrule with corrosion-resistant Parker Suparcase® forms a seal between the tube, body and ferrule. It also provides a mechanical hold on the tube.Back ferrule with corrosion-resistant Parker Suparcase® provides a strong mechanical hold on the tube.Longer thread area for improved resistance to pressure and load on the ferrules.Molybdenum disulfide-coated inverted nut helps prevent galling, provides easier assembly, and permits multiple remakes.Long tube-support area improves resistance to vibration and line loads.
Specifications Materials And Identification
Standard MPI™ Fittings and Valves are made of Heat Code Traceable 316 SS or optional 2507 Super Duplex materials. Tubing and fitting materials should be selected based on compatibility with the fluid or gas media.Part numbers for MPI™ Fittings use symbols that identify their style, size, and composition. 2507 material is easily identified by a groove in the gland nut hex.
