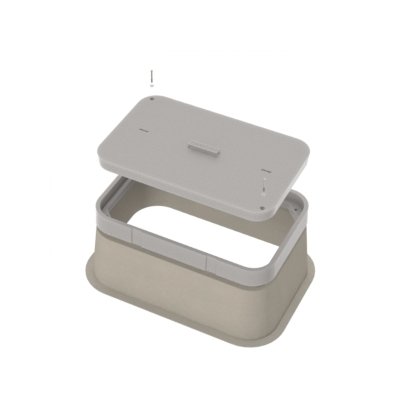

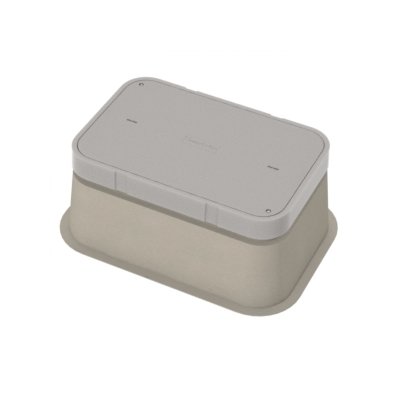

PCX™ 15 1/2 in. Fiberglass Concrete Assembly
PCX™ 15 1/2 in. Fiberglass Concrete Assembly
SKU:HAN-da88b6
Enhance infrastructure with PCX™ Fiberglass Concrete Assembly. Certified quality for versatile applications.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
PCX™ 15 1/2 in. Fiberglass Concrete Assembly
$799.99
Quantity: 1
Claim Your Seller Account
PCX™ 15 1/2 in. Fiberglass Concrete Assembly
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your infrastructure with the PCX™ Fiberglass Concrete Assembly featuring advanced composite materials tested to ASTM standards. With a high strength-to-weight ratio and non-conductive properties, this assembly is perfect for a variety of applications. Built to meet WUC 3.6 and ANSI/SCTE 77 certifications, this assembly offers durability, UV resistance, and industry-standard load ratings for parking lots and sidewalks.
Product Specifications
Available Options
Penta Bolts, Telephone EMS, Power EMS, Knockouts, 2 Piece Cover, Custom Nameplate Installed, Custom Nameplate Shipped Separately, Standard Nameplate Installed, Standard Nameplate Shipped Separately
Dimensional Attributes Height
18 in
Dimensional Attributes Inside Depth
15 1/2 in
Dimensional Attributes Inside Length
38 3/8 in | 45 5/8 in
Dimensional Attributes Inside Width For 38 38 In Length
20 7/8 in
Dimensional Attributes Inside Width For 45 58 In Length
28 in
Dimensional Attributes Length
48 in
Dimensional Attributes Width
30 in
Features
USDA/RUS ApprovedDrop-In nameplateShipped assembledSkid resistant coverCast-in floating nut box - Integral drain holes
Load Ratings
Incidental Traffic - Parking Lot, Sidewalk Conforms to:WUC 3.6ASTM C 857ANSI/SCTE 77
Material Properties
Advanced composite: Very high strength to weight ratioNon-metallicNon-conductiveUV ResistantHigh impact resistantImpervious to chemicals and moistureMaterials tested in accordance with ASTM D-543 and ASTM D-570
Nameplates
One standard nameplate included with each assembly, installed at the factory or easily installed in the field. Custom nameplates are available. Contact customer service.Standard NameplatesElectricTelephoneFiber OpticStreet LightingTrafficCATVCommunications
Specifications Assembly Weight
357.67 lb
Specifications Bolt Head Type
Hex
Specifications Bolt Material
Stainless Steel
Specifications Bolt Size
3/8 in
Specifications Box Weight
138.67 lb
Specifications Brand
newbasis, PCX™
Specifications Coefficient Of Friction Dry Per American Society
1.085
Specifications Compressive Strength
11500 psi
Specifications Cover Weight
219 lb
Specifications Fiber Reinforced Polymers Frp Compressive Strengt
19440 psi
Specifications Fiber Reinforced Polymers Frp Flexural Strength P
16,830 psi
Specifications Flexural Strength
4000 psi
Specifications Industry Standardscertifications
WUC 3.6, ANSI/SCTE 77 -''T15/20K''
Specifications Loaded Pallet Weight
1475.68 lb
Specifications Material
Fiberglass Concrete
Specifications Packaging
Steel Banding, Edge Protection
Specifications Pallet Quantity
4
Specifications Side
Straight
Specifications Type
Fiberglass Concrete Assemblies
