PeeWee Series High Voltage Plug Cable Assembly with NOMEX Jacket
PeeWee Series High Voltage Plug Cable Assembly with NOMEX Jacket
High voltage plug cable assembly with NOMEX jacket, 12 kVDC rating, push-pull coupling, ideal for dense electronic packaging. Meets industry standards.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
PeeWee Series High Voltage Plug Cable Assembly with NOMEX Jacket
$69.99
Quantity: 1
Claim Your Seller Account
PeeWee Series High Voltage Plug Cable Assembly with NOMEX Jacket
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

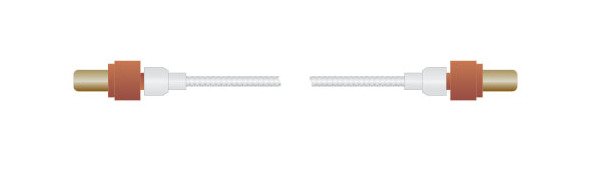

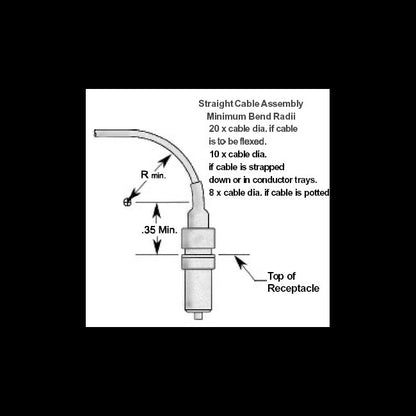

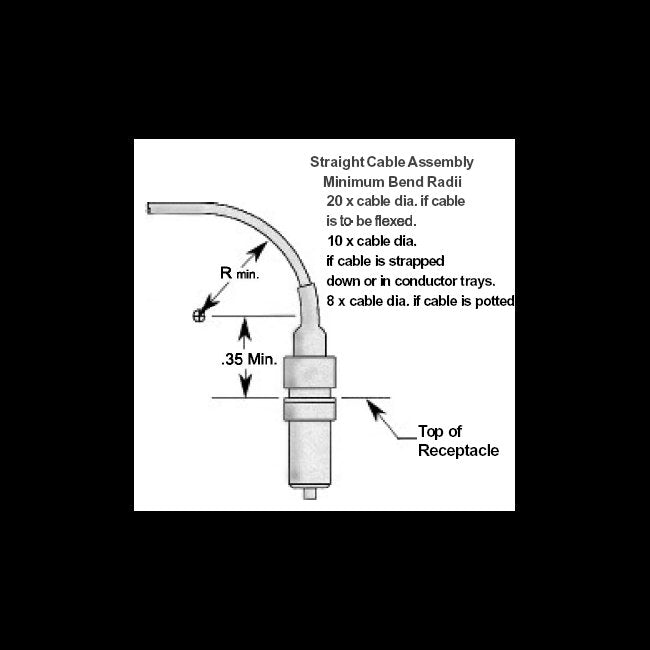

The PeeWee Series Plug Cable Assembly is ideal for high voltage applications requiring compact connectors. Using Teledyne Reynold's Advanced Interface™ technology, this assembly is rated at 12 kVDC at altitudes up to 70,000 feet. With a temperature range of -55°C to 125°C, this double-ended plug features a push-pull coupling and meets rigorous industry standards. Its silicone-coated FEP wire with NOMEX jacket ensures reliable performance in demanding environments.
Product Specifications
Application 0
LasersPhotomultipliersPower SuppliesTWT
Body Properties Coupling Nut Material
Plastic
Cable Wire Properties Wire Diameter
0.060 in
Contact Properties Contact Design
Split Finger, Closed Entry, Molded in Place
Contact Properties Contact Diameter
0.030 in | 0.762 mm
Contact Properties Contact Material
BeCu, Gold Plate with CRES Hood
Contact Properties Contact Size
24 AWG
Contact Properties Contact Type
Female
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Double-Ended Plug - Receptacle Contact Assembly
Specifications Coupling Style
Push-Pull
Specifications Current Rating
1.6 Amp
Specifications Encapsulation
Back end of connector is encapsulated with silicone rubber
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Mating Compatibility
Mates with all non-threaded Pee-Wee series receptacles and receptacles cable assemblies.
Specifications Operating Temperature
-55 to 125 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
PeeWee
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
18 kVDC
Specifications Voltage Rating
12 kVDC
Specifications Wire Insulation
Silicone Coated FEP with Nomex® Jacketed
Specifications Wire Pn
178-5789
