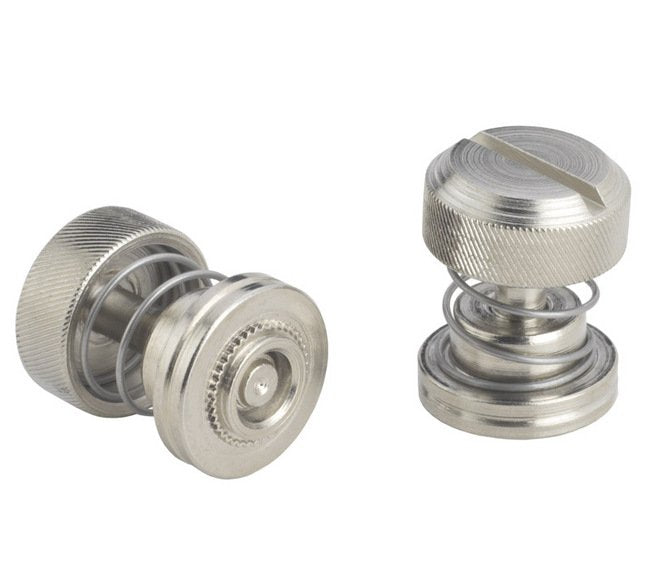

PEM® Captive Panel Screw-Low Profile Knob PF32 Metric

Name: PEM® Captive Panel Screw-Low Profile Knob PF32 Metric
Brand: Hi-Tech Fasteners, Inc.
SKU: PEM-c3a80c
Price: 9.99 USD
Availability: OutOfStock

SKU:PEM-c3a80c

Securely fasten metal sheets with the PEM® Captive Panel Screw-Low Profile Knob PF32. Easy tool or finger operation with spring-loaded design. ANSI/ASME compliant.

$9.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PEM® Captive Panel Screw-Low Profile Knob PF32 is a high-quality fastening solution designed for metal sheets and panels. With a low-profile design, it meets both functional and cosmetic requirements. The spring-loaded feature ensures secure fastening, while the large, slotted head allows for easy tool or finger operation. Made from durable materials with corrosion-resistant finishes, this screw offers reliable performance and longevity. Compliant with ANSI/ASME standards, it is suitable for HRB 60 or less sheet hardness applications.

Product Specifications

Specifications A Shank Max

1.48 mm

Specifications Cad Supplier

PennEngineeringÂ® (PEMÂ®)

Specifications Cad View

Unfastened

Specifications C Max

9.48 mm

Specifications E 025

15.88 mm

Specifications Finish Retainer

Bright Nickel over Copper Flash per ASTM B689

Specifications Finish Screw

Bright nickel over copper flash per ASTM B689

Specifications Finish Spring

Natural Finish

Specifications For Use In Sheet Hardness

HRB 60 or Less (Hardness Rockwell âBâ Scale)HB 107 or Less (Hardness Brinell)

Specifications G 04

8.89 mm

Specifications Hole Size In Sheet 008

9.50 mm

Specifications H 013

6.12 mm

Specifications Material Retainer

Carbon Steel

Specifications Material Screw

Carbon Steel

Specifications Material Spring

300 Series Stainless Steel

Specifications Min Dist Hole Cl To Edge

9.65 mm

Specifications Min Sheet Thickness

1.50 mm

Specifications Optional Finish

Screw â Black NitrideRetainer â Black Nitride

Specifications Screw Length Code

Specifications T1 Max

9.78 mm

Specifications T2 Nom

17.15 mm

Specifications Thread Code

Specifications Thread Size X Pitch

M6 x 1

Specifications Thread Specification

ANSI/ASME B1.13M, 6g

Specifications Type

PF32

PEM® Captive Panel Screw-Low Profile Knob PF32 Metric
