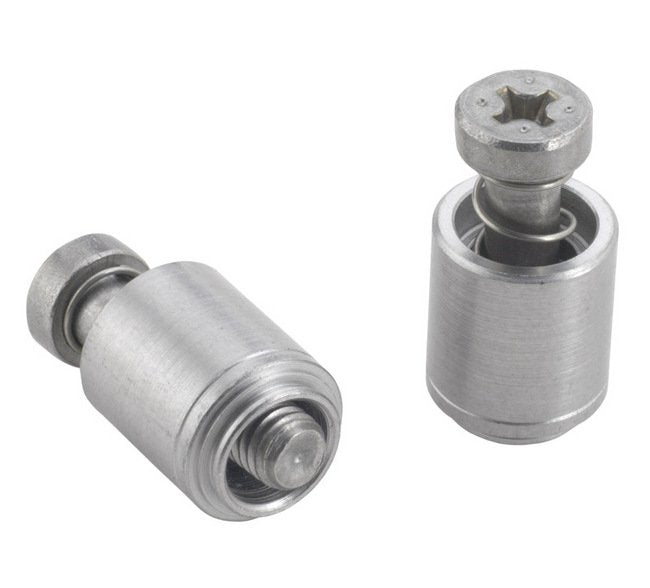

PEM® Captive Panel Screw-Tool PFC4 Metric

Name: PEM® Captive Panel Screw-Tool PFC4 Metric
Brand: Hi-Tech Fasteners, Inc.
SKU: PEM-ed337f
Price: 29.99 USD
Availability: OutOfStock

SKU:PEM-ed337f

Securely fasten metal sheets with the PEM® Captive Panel Screw-Tool PFC4 Metric. Designed for easy installation and reliability in stainless steel sheets with HRB 88 hardness or less.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PEM® Captive Panel Screw-Tool PFC4 Metric is designed for easy installation into metal sheets, featuring a fully concealed head for tool only access. UL approved and available in assorted screw lengths, this product ensures secure fastening in stainless steel sheets with HRB 88 hardness or less. With specifications meeting ANSI/ASME standards, this captive panel screw-tool is constructed from high-quality stainless steel and spring material, providing durability and reliability for a wide range of applications.

Product Specifications

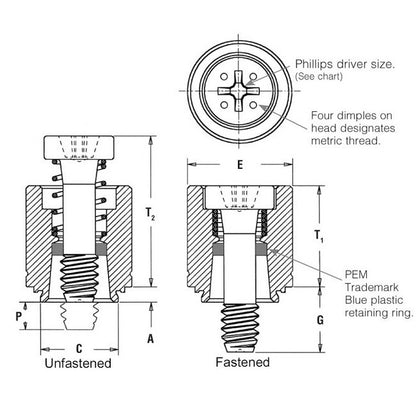

Specifications A Shank Max

1.53 mm

Specifications Cad Supplier

PennEngineeringÂ® (PEMÂ®)

Specifications Cad View

Unfastened

Specifications C Max

7.9 mm

Specifications Driver Size

#2 Phillips

Specifications E 025

10.31 mm

Specifications Finish Retainer

Passivated and/or tested per ASTM A380

Specifications Finish Screw

Passivated and/or tested per ASTM A380

Specifications Finish Spring

Natural Finish

Specifications For Use In Sheet Hardness

HRB 88 or Less (Hardness Rockwell âBâ Scale) / HB 183 or Less (Hardness Brinell)

Specifications G 04

11.10 mm

Specifications Hole Size In Sheet 008

7.92 mm

Specifications Material Retainer

400 Series Stainless Steel

Specifications Material Screw

400 Series Stainless Steel

Specifications Material Spring

300 Series Stainless Steel

Specifications Min Dist Hole Cl To Edge

7.87 mm

Specifications Min Sheet Thickness

1.53 mm

Specifications P 064

3.20 mm

Specifications Screw Length Code

Specifications T1 Max

12.19 mm

Specifications T2 Nom

17.91 mm

Specifications Thread Code

Specifications Thread Size X Pitch

M4 x 0.7

Specifications Thread Specification

ANSI/ASME B1.13M, 6g

Specifications Type

PFC4
