PEM® Captive Panel Screw Tool - Spring-loaded Type PFC2P
PEM® Captive Panel Screw Tool - Spring-loaded Type PFC2P
SKU:PEM-38cf6d
High-quality PEM® Captive Panel Screw Tool with concealed head, suitable for various metal sheet applications. Meets ANSI B1.1, 2A and UL standards.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
PEM® Captive Panel Screw Tool - Spring-loaded Type PFC2P
$39.99
Quantity: 1
Claim Your Seller Account
PEM® Captive Panel Screw Tool - Spring-loaded Type PFC2P
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PEM® Captive Panel Screw Tool is designed for tool-only access with a fully concealed head. It features a thread size of .250-20 (1/4-20), suitable for a variety of applications. Made of high-quality materials like 300 Series Stainless Steel for the retainer, 400 Series Stainless Steel for the screw, and 300 Series Stainless Steel for the spring, this tool ensures durability and reliability. It meets ANSI B1.1, 2A thread specification, UL approval, and is suitable for use in metal sheets with a hardness of HRB 70 or less. The Passivated finish and compliances with ASTM A380 standards ensure corrosion resistance and quality performance.

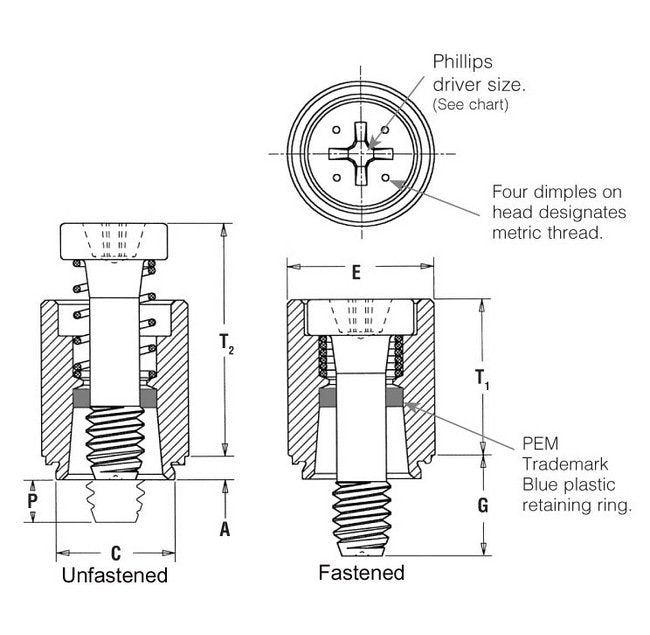

Product Specifications
Specifications A Shank Max
.060 in
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
.412 in
Specifications Driver Size
#3 Phillips
Specifications E 010
.468 in
Specifications Finish Retainer
Passivated and/or tested per ASTM A380
Specifications Finish Screw
Passivated and/or tested per ASTM A380
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 70 or Less (Hardness Rockwell âBâ Scale) / HB 125 or Less (Hardness Brinell)
Specifications G 016
.625 in
Specifications Hole Size In Sheet 0003 0000
.413 in
Specifications Material Retainer
300 Series Stainless Steel
Specifications Material Screw
400 Series Stainless Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Dist Hole Cl To Edge
.38 in
Specifications Min Sheet Thickness
.060 in
Specifications P 025
.250 in
Specifications Screw Length Code
4
Specifications T1 Max
.620 in
Specifications T2 Nom
.905 in
Specifications Thread Code
0420
Specifications Thread Size
.250-20 (1/4-20)
Specifications Thread Specification
ANSI B1.1, 2A
Specifications Type
PFC2P
