PEM® Captive Panel Screw with Low Profile Knob, Spring-loaded - Metric PF50/PF60 Series
PEM® Captive Panel Screw with Low Profile Knob, Spring-loaded - Metric PF50/PF60 Series
SKU:PEM-fbd859
PEM® Captive Panel Screw with Low Profile Knob, Spring-loaded - Metric PF50/PF60 Series. Low-profile design, large head for easy operation. M5 x 0.8 thread size, durability with carbon steel and stainless steel materials.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
PEM® Captive Panel Screw with Low Profile Knob, Spring-loaded - Metric PF50/PF60 Series
$29.99
Quantity: 1
Claim Your Seller Account
PEM® Captive Panel Screw with Low Profile Knob, Spring-loaded - Metric PF50/PF60 Series
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PEM® Captive Panel Screw with Low Profile Knob, Spring-loaded from the Metric PF50/PF60 Series is designed to meet both functional and aesthetic needs. This screw features a low-profile design, a convenient large head with Phillips recess for easy tool or finger operation, and is available with a six-lobe recess option. With specifications like M5 x 0.8 thread size, 1 mm minimum sheet thickness, and materials including carbon steel and 300 Series stainless steel, this screw ensures durability and reliability. The bright nickel finish and optional black nitride offer corrosion resistance, making it ideal for various applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

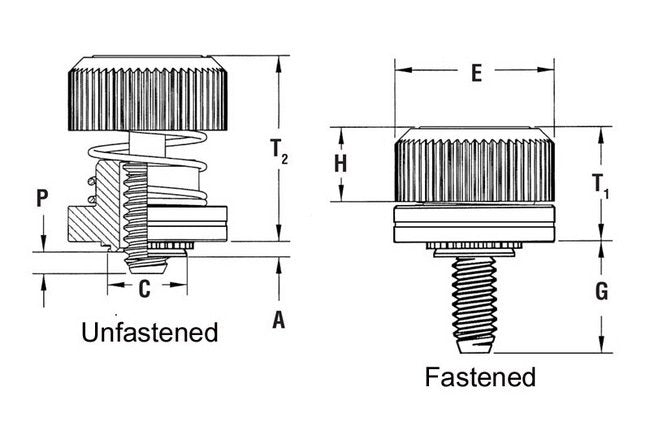

Specifications A Shank Max
0.97 mm
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
7.98 mm
Specifications Driver Size
#2 Phillips
Specifications E 04 013
13.50 mm
Specifications Finish Knob
Bright nickel over copper flash per ASTM B689
Specifications Finish Retainer
Bright Nickel over Copper Flash per ASTM B689
Specifications Finish Screw
Bright nickel over copper flash per ASTM B689
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 60 or Less (Hardness Rockwell âBâ Scale)HB 107 or Less (Hardness Brinell)
Specifications G 064
5.84 mm
Specifications Hole Size In Sheet 008
8 mm
Specifications H 02
5.72 mm
Specifications Material Knob
Carbon Steel
Specifications Material Retainer
Carbon Steel
Specifications Material Screw
Carbon Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Dist Hole Cl To Edge
8.40 mm
Specifications Min Sheet Thickness
1 mm
Specifications Optional Finish
Knob â Black NitrideScrew â Black NitrideRetainer â Black Nitride
Specifications P 064
0 mm
Specifications Screw Length Code
0
Specifications T1 Max
9.15 mm
Specifications T2 Nom
13.46 mm
Specifications Thread Code
M5
Specifications Thread Size X Pitch
M5 x 0.8
Specifications Thread Specification
ANSI/ASME B1.13M, 6g
Specifications Type
Knurled Cap - PF51
