PEM® Spring-loaded Metric Captive Panel Screws PFC2, PFS2
PEM® Spring-loaded Metric Captive Panel Screws PFC2, PFS2
SKU:PEM-485788
Enhance industrial applications with PEM Spring-loaded Metric Captive Panel Screws. Compliant with UL 508 standards, easy to operate and durable in design.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
PEM® Spring-loaded Metric Captive Panel Screws PFC2, PFS2
$29.99
Quantity: 1
Claim Your Seller Account
PEM® Spring-loaded Metric Captive Panel Screws PFC2, PFS2
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

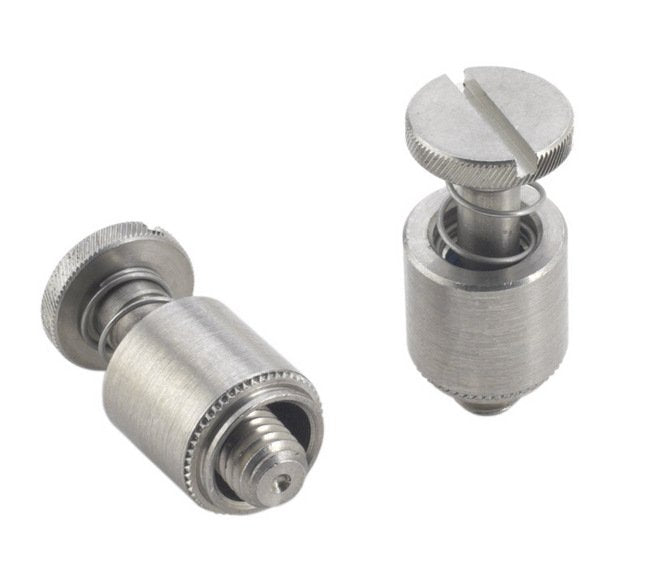

Upgrade your industrial application with PEM® Spring-loaded Metric Captive Panel Screws, designed with precision in steel or stainless steel. Compliant with UL 508 'operator access area' standards for safety. Easy tool or finger operation. Choose from multiple screw lengths to fit various sheet thicknesses. Manufactured with high-quality 300 Series Stainless Steel components for durability and reliability.

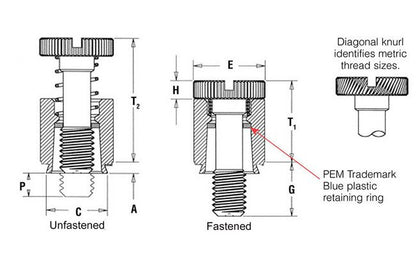

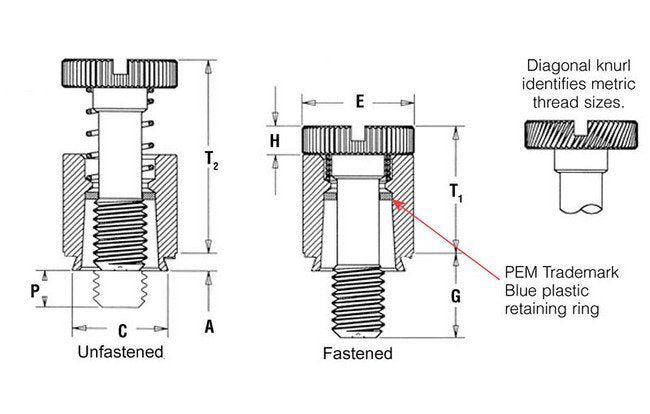

Product Specifications
Specifications A Shank Max
1.53 mm
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
10.47 mm
Specifications E 025
11.89 mm
Specifications Finish Retainer
Passivated and/or tested per ASTM A380
Specifications Finish Screw
Passivated and/or tested per ASTM A380
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 70 or Less (Hardness Rockwell âBâ Scale) / HB 125 or Less (Hardness Brinell)
Specifications G 04
9.50 mm
Specifications Hole Size In Sheet 008
10.49 mm
Specifications H 013
2.46 mm
Specifications Material Retainer
300 Series Stainless Steel
Specifications Material Screw
300 Series Stainless Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Dist Hole Cl To Edge
9.65 mm
Specifications Min Sheet Thickness
1.53 mm
Specifications P 064
0 mm
Specifications Screw Length Code
60
Specifications T1 Max
14.73 mm
Specifications T2 Nom
22.35 mm
Specifications Thread Code
M6
Specifications Thread Size X Pitch
M6 x 1
Specifications Thread Specification
ANSI/ASME B1.13M, 6g
Specifications Type
PFC2
