PEM® Spring-loaded Unified PFC2/PFS2 Screw Head

Name: PEM® Spring-loaded Unified PFC2/PFS2 Screw Head
Brand: Hi-Tech Fasteners, Inc.
SKU: PEM-2199bf
Price: 14.99 USD
Availability: OutOfStock

SKU:PEM-2199bf

Enhance your installations with PEM® Spring-loaded Unified PFC2/PFS2 Screw Head for secure, tool/finger operation. Meets UL 508 standards.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

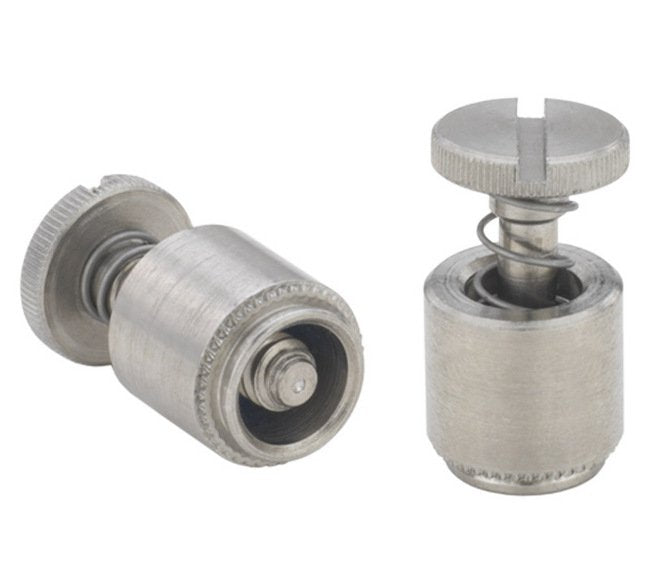

Upgrade your fastening solutions with the PEM® Spring-loaded Unified PFC2/PFS2 Screw Head. Crafted from durable steel or stainless steel, this screw meets strict 'operator access area' requirements similar to UL 508 standards. Featuring tool or finger operation with various screw lengths available, it ensures secure and efficient panel installations. With thread Size .164-32 (#8-32) and materials like heat-treated carbon steel and 300 series stainless steel, this screw guarantees reliability and longevity in diverse applications. Empower your projects with PEM® quality and precision.

Product Specifications

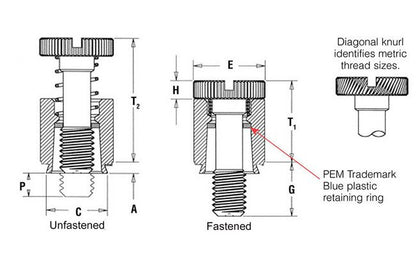

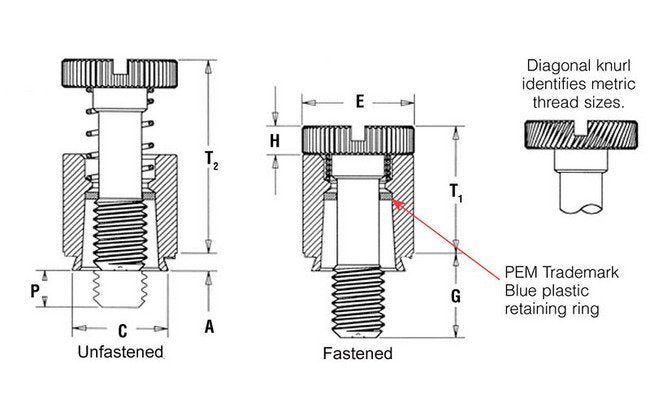

Specifications A Shank Max

.060 in

Specifications Cad Supplier

PennEngineeringÂ® (PEMÂ®)

Specifications Cad View

Unfastened

Specifications C Max

.311 in

Specifications E 010

.375 in

Specifications Finish Retainer

Bright Nickel over Copper Flash per ASTM B689

Specifications Finish Screw

Bright nickel over copper flash per ASTM B689

Specifications Finish Spring

Natural Finish

Specifications For Use In Sheet Hardness

HRB 80 or Less (Hardness Rockwell âBâ Scale) / HB 150 or Less (Hardness Brinell)

Specifications G 016

.312 in

Specifications Hole Size In Sheet 0003 0000

.312 in

Specifications H 005

.082 in

Specifications Material Retainer

Heat-Treated Carbon Steel

Specifications Material Screw

Carbon Steel

Specifications Material Spring

300 Series Stainless Steel

Specifications Min Dist Hole Cl To Edge

.31 in

Specifications Min Sheet Thickness

.060 in

Specifications Optional Finish

Retainer â BN â Black NitrideScrew â BN â Black nitride

Specifications P 025

.000 in

Specifications Screw Length Code

Specifications T1 Max

.450 in

Specifications T2 Nom

.690 in

Specifications Thread Code

832

Specifications Thread Size

.164-32 (#8;-32)

Specifications Thread Specification

ANSI B1.1, 2A

Specifications Type

PFS2
