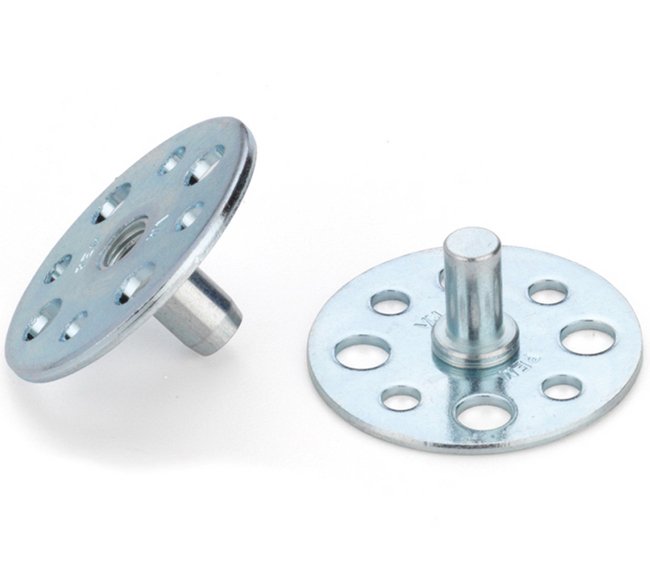

PEM® Steel Blind Nut with Base Plate - Metric M4 x 0.7
PEM® Steel Blind Nut with Base Plate - Metric M4 x 0.7
SKU:PEM-390392
Durable and versatile Steel Blind Nut with Base Plate for secure fastening without welding. Ideal for industrial panel mounting.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
PEM® Steel Blind Nut with Base Plate - Metric M4 x 0.7
$24.99
Quantity: 1
Claim Your Seller Account
PEM® Steel Blind Nut with Base Plate - Metric M4 x 0.7
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PEM® Steel Blind Nut with Base Plate provides a reliable fastening solution without the need for welding. Constructed with steel base plates and nuts, this VariMount® fastening system meets stringent standards for durability and reliability. With radial holes for versatile mounting options, these assemblies are ideal for various panel types. The zinc-plated finish ensures corrosion resistance, making it a preferred choice for industrial applications.

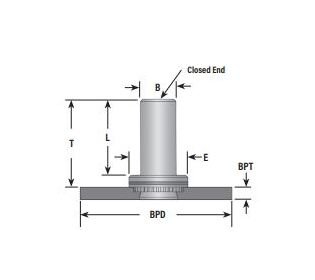

Product Specifications
Specifications Base Plate Material
Steel
Specifications Bpd 042
30 mm
Specifications Bpt 01
1.2 mm
Specifications B Max
5.2 mm
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications E 025
7.95 mm
Specifications Fastener Material
Steel
Specifications L Max
9.8 mm
Specifications Material Finish
Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless
Specifications Shank Code
1
Specifications Thread Code
M4
Specifications Thread Size
M4 x 0.7
Specifications Type
VM
Specifications T 025
11.2 mm
