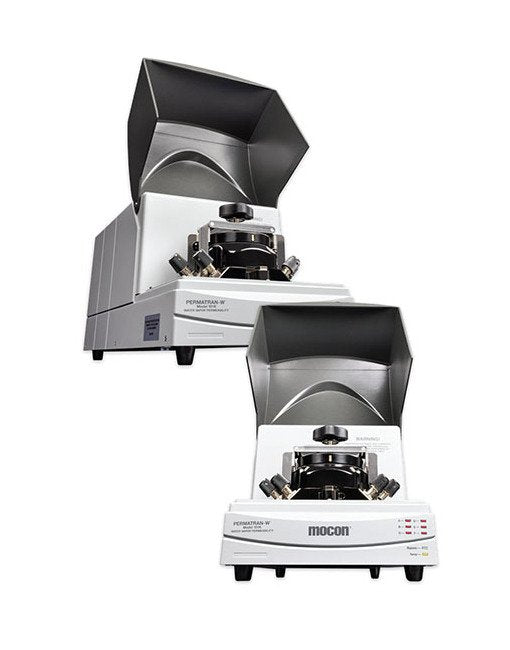

The PERMATRAN-W® 101K Water Vapor Permeation Analyzer is a cutting-edge instrument designed to measure moisture permeability in high transmitting barrier films with precision and efficiency. With an automated 6-cell system, it accurately determines Water Vapor Transmission Rate (WVTR) under real environmental conditions. Offering a wide transmission range of 500 to 100,000 g/(m²·day), this instrument meets ASTM D6701 standard, ensuring reliable and compliant testing for materials used in healthcare and construction industries. Featuring MOCON®âs WinPerm⢠software for seamless operation, the 101K delivers accurate results without operator intervention, making it ideal for high throughput testing needs.
Product Specifications
Accessories Accessories
PermWare⢠Software for Data Collection and Remote Monitoring
Accuracy At High Transmission Levels Accuracy At High Transmissi
Obtaining accurate and repeatable results when testing highly permeable materials is a challenge. Traditional Gravimetric methods such ASTM E96 have issues with loss of driving force due to the air gap between the moisture source and the sample resulting in erroneous and inconsistent test results. The 101K WVTR instrument utilizes a modified inverted water cup concept to eliminate the air gap problem and maintain constant 100% RH driving force throughout the test period. The precision RH sensor on the carrier gas side provides accurate results. The automated system maintains consistent conditions throughout the tests yielding repeatable results without operator intervention. We also offer a special calibration film for the instrument to ensure accurate test results.
Accurate Results Accurate Results
Precise temperature measurement and controlAutomated flow and barometric pressure correctionNo air-gap factorComplies with ASTM D6701
Additional Information Additional Information
Time SavingsBy measuring moisture concentration, carrier gas flow and temperature, the 101K is easy to set up and requires no supervision through the test. The fully automated test provides rapid test results to help reduce overall product development time or shorten product quarantine times in the production environment. Additionally, the instrument can test up to six samples simultaneously, ideal for a QC lab supporting production operations.The PERMATRAN-W® Model 101K provides true and accurate water vapor permeation rates for breathable membranes or films.
Applications Applications
The 101K is ideal for measuring WVTR in materials such as porous and breathable polymer membranes, thin paper with polymer coatings and thin polymer nonwovens (with non-textured surface). Such barriers are common applications in the healthcare industry as diapers and bandages and in the construction industry as moisture barriers (house wraps) and soil control.
Consistent Conditions Consistent Conditions
The unique inverted cup design allows transmission rate testing without an air gap that maintains a constant 100% RH driving force of water vapor throughout the test without operator interaction. The air gap that exists in traditional test methods negatively effects the RH at the barrier sample that reduces the accuracy of the test. When testing high transmitting barriers, the large amount of moisture transmitting through the barrier can result in changing the RH driving force as the test progresses. This inverted cup design events changes in driving force thus ensuring accurate and repeatable test results.
Features Features
MOCON®âs WinPerm⢠Permeability software is designed for speed and ease of use. Features include:Quickstart - Quickly choose standard ASTM, ISO, JIS or user defined test conditions and immediately begin testingPre-programmed test set-up may be saved and recalled for later useTest results are automatically converted to Excel format for export and further data manipulationTest results are available in individual detailed or multi-test summary formatCompatible with PERMNETâ¢, our, powerful test and data management system
High Throughput High Throughput
Inverted cup design provides results in less time than gravimetric methodsIntegrated 6-cell test head for parallel testing of 6 samples at the same time Compact test chamber area is easy to loadAutomated test cycle
Innovative Relative Humidity Rh Control Innovative Relative Humi
Maintains 100% RH driving force throughout the testNo adjustments or refilling during a testTrue measurement of permeation based on molecular diffusion
Porosity Vs Permeation Porosity Vs Permeation
Additionally, the inverted cup design relies on testing with equal pressure on both sides of the sample allowing accurate measurement of the permeation transmission rate without the need for pressure differential. These results are true permeation via molecular diffusion. This equal pressure condition eliminates any artifact of water vapor transfer through the porosity of the barrier and provides a true measure of the breathability of the barrier.
Simple Operation Simple Operation
Place all desired sample films in position, attach the test head and adjust the flow to the desired level. Enter the conditions such as temperature into the connected computer with AMETEK MOCON®âs WinPerm⢠software and start the test. Monitor each cell from the computer to see progress and test results when complete. Digital pressure and flow controls allow for simple âset and forgetâ test conditions. A single water reservoir in the head achieves 100% RH conditions throughout the test for all 6 cells.ASTM D6701 cites the 100K, predecessor of the 101K, as the only known instrument to comply with the method. The 101K provides the most accurate and repeatable permeation results for your high transmitting barriers.
Simple User Interface Simple User Interface
Overview dashboard screen provides the status of all 6 cellsTest status screen provides graphic display of dataAutomatically generate test reportsOne control system can be centralized monitoring and control for multiple instruments
Specifications Conformance Standards
European Conformity (CE) Safety Compliance
Specifications Connectivity
Dual RS 485 Ports
Specifications Depth
26 in | 66.4 mm
Specifications Film Repeatability
1 %
Specifications Film Resolution
1 g/(m²·day)
Specifications Height
12 in | 30.4 mm
Specifications Humidity Control Film Cell Test Gas
100 %
Specifications Industry Standards
American Society for Testing and Materials (ASTM) D 6701
Specifications Temperature Control Range
20 to 50 ºC
Specifications Temperature Control Range Tolerance
0.5 ºC
Specifications Test Range For Film Unmasked 10 Cm
500 to 100000 g/(m²·day) | 32.5 to 6500 g/(100 in²·day)
Specifications Weight
63 lb | 28.6 kg
Specifications Width
12 in | 30.4 mm
