Petersen® 116 PSI Pressure Inflation Controller
Petersen® 116 PSI Pressure Inflation Controller
SKU:HIG-26acb0
Precisely control inflation pressure with safety relief valves. Ideal for high-pressure applications. Dual joysticks for easy adjustments.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Petersen® 116 PSI Pressure Inflation Controller
$149.99
Quantity: 1
Claim Your Seller Account
Petersen® 116 PSI Pressure Inflation Controller
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen® 116 PSI Pressure Inflation Controller is designed with dual joysticks for precise pressure adjustments. Featuring built-in safety relief valves, this controller ensures safe and efficient inflation control. With 1/4 inch safety coupler and nipple connections, it is suitable for use with 161-0 Series High Pressure Flat Form Bags. This reliable controller by Petersen® is compact, easy to use, and meets stringent industry standards for quality and performance.

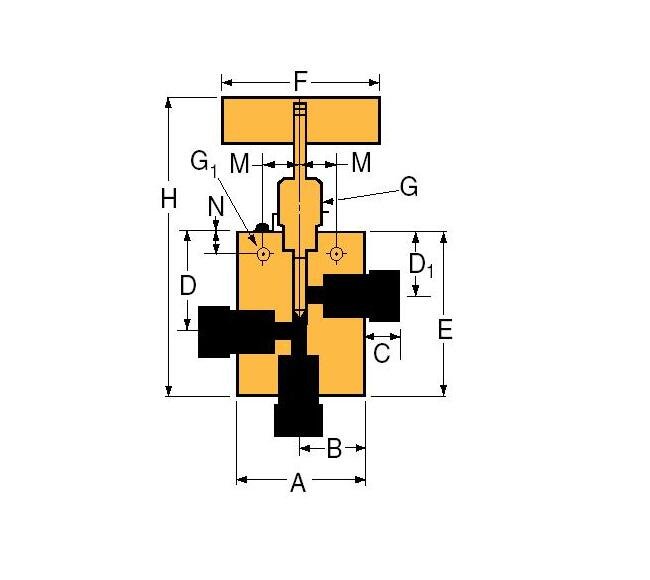

Product Specifications
Specifications A Width
2.00 in | 50.80 mm
Specifications Block Thickness
0.75 in | 19.05 mm
Specifications B Length
1.00 in | 25.40 mm
Specifications Connection Type
SW375
Specifications C Length
0.47 in | 11.94 mm
Specifications D1 Height
1.19 in | 30.23 mm
Specifications D Height
1.62 in | 41.15 mm
Specifications E Height
2.62 in | 66.55 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.22 in | 5.59 mm
Specifications G Packing Gland Mounting Hole Drill Size
0.75 in | 19.05 mm
Specifications H Height
5.94 in | 150.88 mm
Specifications M Length
0.62 in | 15.75 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.250 in | 6.35 mm
Specifications Outside Diameter Tube
3/8 in | 9.53 mm
Specifications Pressure Rating At Room Temperature
15000 psi | 1034 bar
Specifications Rated Cv
0.95
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
0.75 in | 19.1 mm
Specifications Valve Pattern
3-Way / 2 on Pressure
Valve Maintenance Valve Maintenance
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: RSW4071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options Valve Options
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C). High temperature packing and/or extended stuffing box is available for service from 0°F (-17.8°C) to 650°F (343°C) by adding the following suffixes to catalog order number.â TG standard valve with Teflon glass packing to 600°F (316°C).GY standard valve with graphite braided yarn packing to 650°F (343°C).â Autoclave Engineers does not recommend compression sleeve connections below 0°F (-17.8°C) or above 650°F (343°C). For additional valve options, contact your Sales Representative.
