Petersen® 143-3XXX-C Series 2-Inch Stainless Steel Wing Nut Plug

Name: Petersen® 143-3XXX-C Series 2-Inch Stainless Steel Wing Nut Plug
Brand: Parker / Autoclave Engineers
SKU: HIG-111279
Price: 12.99 USD
Availability: OutOfStock

SKU:HIG-111279

Durable and cost-effective stainless steel wing nut plug for 2-inch pipes with maximum chemical resistance. Ideal for pipe dust cover use.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Petersen® 143-3XXX-C Series Stainless Steel Wing Nut Plug is a durable and cost-effective solution for sealing pipes with its stainless steel bolt and plate, along with chemical-resistant nitrile rubber. Designed for 2-inch nominal diameter pipes, this plug offers maximum chemical resistance and can also serve as a pipe dust cover. With a shipping weight of 1 lb, this plug meets stringent quality standards for reliable performance in industrial applications.

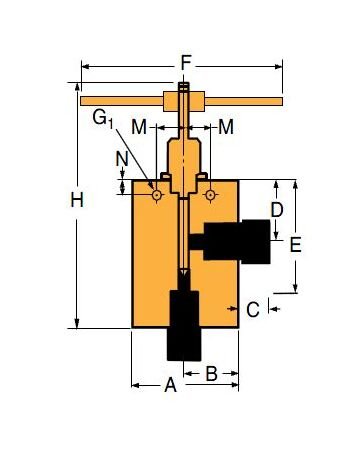

Product Specifications

Specifications A Width

5.75 in | 146.05 mm

Specifications Block Thickness

2.25 in | 57.15 mm

Specifications B Length

2.88 in | 73.03 mm

Specifications Connection Type

SF1500CX

Specifications C Length

1.00 in | 25.40 mm

Specifications D Height

3.75 in | 95.25 mm

Specifications E Height

6.75 in | 171.45 mm

Specifications F Length

23.75 in | 603.25 mm

Specifications G1 Bracket Mounting Hole Size

0.75 in | 19.05 mm

Specifications G Packing Gland Mounting Hole Drill Size

2.31 in | 58.72 mm

Specifications H Height

11.35 in | 288.32 mm

Specifications M Length

1.88 in | 47.63 mm

Specifications N Height

1.50 in | 38.10 mm

Specifications Orifice Diameter

0.937 in | 23.80 mm

Specifications Outside Diameter Tube

1-1/2 in | 38.10 mm

Specifications Pressure Rating At Room Temperature

15000 psi | 1034 bar

Specifications Rated Cv

Specifications Stem Type

REG

Specifications Tubing Engagement Depth

1.88 in | 47.6 mm

Specifications Valve Pattern

2-Way Angle

Petersen® 143-3XXX-C Series 2-Inch Stainless Steel Wing Nut Plug
