Petersen® 143-5 Series 1 Inch Water Line Stub Plug
Petersen® 143-5 Series 1 Inch Water Line Stub Plug
SKU:HIG-80b861
Petersen® 143-5 Series 1 Inch Water Line Stub Plug for high-pressure applications in a range of pipe sizes, with durable rubber o-ring and steel construction.
Regular price
$19.99
Regular price
Sale price
$19.99
Unit price
per
Initiate Order
Petersen® 143-5 Series 1 Inch Water Line Stub Plug
$19.99
Quantity: 1
Claim Your Seller Account
Petersen® 143-5 Series 1 Inch Water Line Stub Plug
$19.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen® 143-5 Series 1 Inch Water Line Stub Plug is a high-pressure plug designed for water line stub-outs. Featuring a durable SBR/Natural rubber o-ring and available with a wing nut for sizes 0.39" to 1.25" and a hex nut for sizes 1.5" to 5", this plug is versatile and reliable in all types of pipes. With a head pressure capacity of 92 ft | 28 m and maximum allowable back pressure of 40 psi | 2.8 bar, this plug ensures secure sealing in demanding applications. Crafted from sturdy steel, this plug is built to last and maintain performance under pressure.

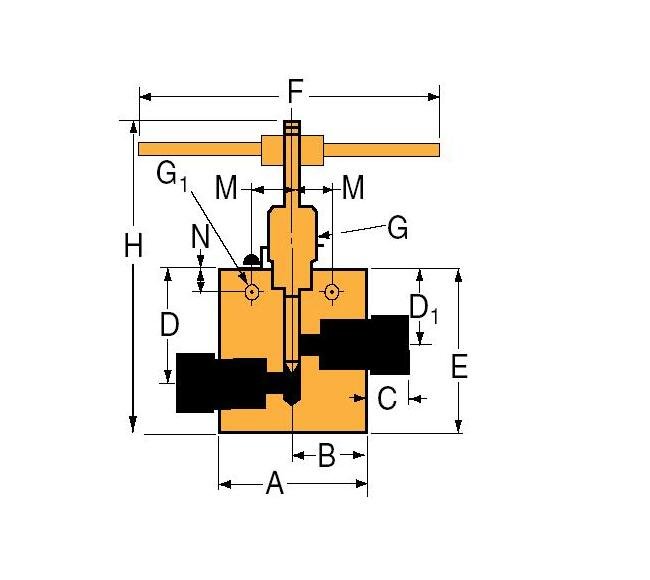

Product Specifications
Specifications A Width
4.13 in | 104.9 mm
Specifications Block Thickness
1.75 in | 44.45 mm
Specifications B Length
2.06 in | 52.32 mm
Specifications Connection Type
F1000C43
Specifications C Length
0.72 in | 18.28 mm
Specifications D1 Height
2.75 in | 69.85 mm
Specifications D Height
3.50 in | 88.90 mm
Specifications E Height
4.44 in | 112.77 mm
Specifications F Length
10.25 in | 260.35 mm
Specifications G1 Bracket Mounting Hole Size
0.56 in | 14.22 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.62 in | 41.14 mm
Specifications H Height
8.61 in | 218.69 mm
Specifications M Length
1.25 in | 31.75 mm
Specifications N Height
1.12 in | 28.44 mm
Specifications Orifice Diameter
0.438 in | 11.12 mm
Specifications Outside Diameter Tube
1 in | 25.4 mm
Specifications Pressure Rating At Room Temperature
30000 psi | 2068 bar
Specifications Rated Cv
2.6
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
1.62 in | 41.1 mm
Specifications Valve Pattern
2-Way Straight
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R30SC16071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated from 0°F (-17.8°C) to 450°F (232°C). High temperature packing is available for service from -423°F (-252°C) to 1200°F (649°C) by adding the following suffixes to catalog order number.TG - standard valve with Teflon glass packing to 600°F (316°C).GY - standard valve with graphite braided yarn packing to 800°F (427°C).8,000 psi (569 bar) max.HT - extended stuffing box valve with graphite braided yarn packing to 1200°F (649°C).B - standard valve with cryogenic trim material and Teflon packing to -100°F (-73°C).LT - extended stuffing box valve with Teflon packing & Cryogenic trim materials to -423°F (-252°C).K - anti-vibration collet and gland assembly.
