Petersen® 145-9 Mechanical High Pressure Test Plug - 4.875 Inch

Petersen® 145-9 Mechanical High Pressure Test Plug - 4.875 Inch

HIG-4887ec

Reliable Petersen® 145-9 Mechanical High Pressure Test Plug for positive seals against line pressure, with solid rubber or inflatable seal options.

$89.99
$89.99
Sale

Initiate Order

Petersen® 145-9 Mechanical High Pressure Test Plug - 4.875 Inch

Petersen® 145-9 Mechanical High Pressure Test Plug - 4.875 Inch

$89.99

Quantity: 1

Claim Your Seller Account

Petersen® 145-9 Mechanical High Pressure Test Plug - 4.875 Inch

Petersen® 145-9 Mechanical High Pressure Test Plug - 4.875 Inch

$89.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Petersen® 145-9 Mechanical High Pressure Test Plug is a reliable solution for creating positive seals against line pressure. Available with solid rubber or inflatable seals, this lightweight aluminum plug is designed for durability and ease of installation. With a maximum head pressure of 100 psig, this plug is suitable for a range of applications including force and water mains, lift stations, fire protection lines, and more. It offers versatility for testing and construction needs while ensuring safety with proper usage precautions.

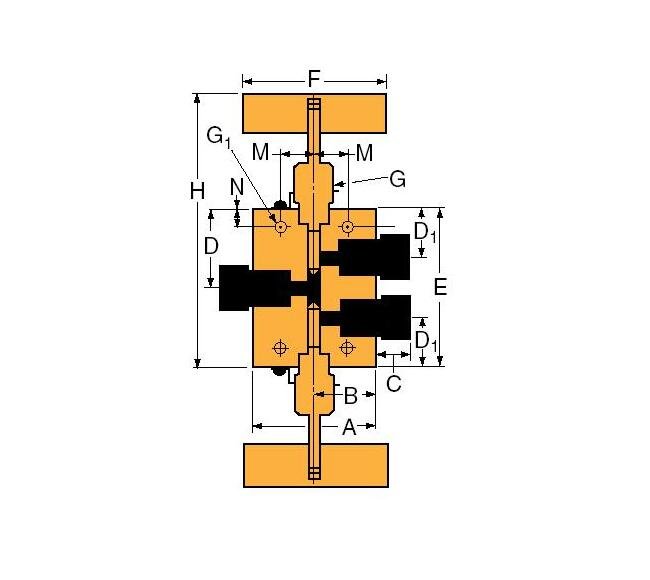

Product Specifications

Specifications A Width
2.00 in | 50.80 mm
Specifications Block Thickness
1.00 in | 25.40 mm
Specifications B Length
1.00 in | 25.40 mm
Specifications Connection Type
F375C
Specifications C Length
0.53 in | 13.46 mm
Specifications D1 Height
1.31 in | 33.27 mm
Specifications D Height
1.88 in | 47.75 mm
Specifications E Height
3.75 in | 95.25 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.22 in | 5.59 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
6.37 in | 161.80 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.062 in | 1.57 mm
Specifications Outside Diameter Tube
3/8 in | 9.53 mm
Specifications Pressure Rating At Room Temperature
60000 psi | 4137 bar
Specifications Rated Cv
0.09
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
0.69 in | 17.5 mm
Specifications Valve Pattern
3-Way / 2-Stem Manifold
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R60VM4071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated from 0°F (-17.8°C) to 450°F (232°C). High temperature packing is available for service from -423°F (-252°C) to 1200°F (649°C) by adding the following suffixes to catalog order number.TG - standard valve with Teflon glass packing to 600°F (316°C).GY - standard valve with graphite braided yarn packing to 800°F (427°C).HT - extended stuffing box valve with graphite braided yarn packing to 1200°F (649°C).B - standard valve with cryogenic trim material and Teflon packing to -100°F (-73°C).LT - extended stuffing box valve with Teflon packing & Cryogenic trim materials to -423°F (-252°C).
