The Petersen® 145-9 Series 5.25 Inch Mechanical High Pressure Test Plug is a versatile solution designed for applications requiring reliable isolation for testing and construction projects. Featuring a lightweight aluminum construction with solid rubber or inflatable seals, this plug ensures easy installation and replacement of seals. With a maximum head pressure of 100 psig, it provides a positive seal against line pressure, suitable for various scenarios such as force and water mains, nuclear cooling lines, and fire protection lines. Known for its adaptability, these plugs can be customized to fit different pressure requirements and opening shapes, making them ideal for a wide range of projects.
Product Specifications

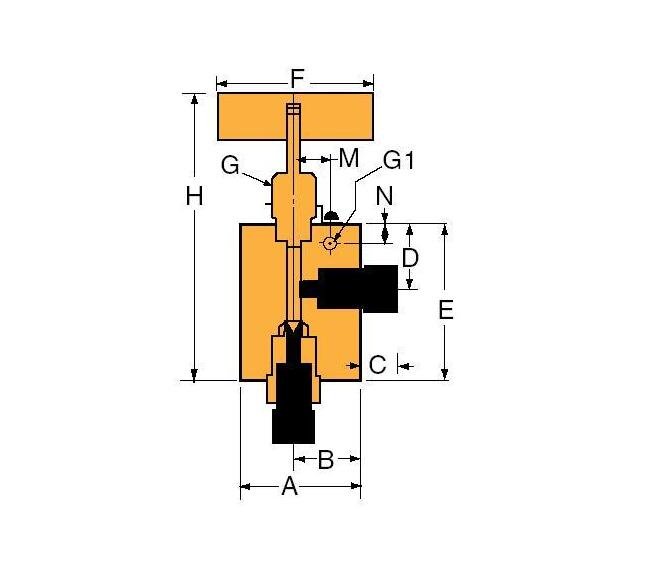

Specifications A Width
2.25 in | 57.15 mm
Specifications Block Thickness
1.38 in | 35.05 mm
Specifications B Length
1.50 in | 38.10 mm
Specifications Connection Type
F312C150
Specifications C Length
0.52 in | 13.21 mm
Specifications D1 Height
3.05 in | 77.47 mm
Specifications D Height
1.44 in | 36.58 mm
Specifications E Height
3.00 in | 76.20 mm
Specifications F Length
4.00 in | 101.60 mm
Specifications G1 Bracket Mounting Hole Size
0.34 in | 8.64 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.12 in | 28.45 mm
Specifications H Height
7.57 in | 192.30 mm
Specifications M Length
0.94 in | 23.88 mm
Specifications N Height
0.50 in | 12.70 mm
Specifications Orifice Diameter
0.062 in | 1.57 mm
Specifications Outside Diameter Tube
3/8 in | 9.53 mm
Specifications Pressure Rating At Room Temperature
100000 psi | 6895 bar
Specifications Rated Cv
0.09
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
1.10 in | 28.0 mm
Specifications Valve Pattern
2-Way Angle / Replacement Seat
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R100VM15071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard AE valves with Teflon packing may be operated to 450°F(232°C), and to 230°F (110°C) with nylon-leather packing.K - anti-vibration collet and gland assembly. For other packing options consult the factory.
