Petersen® 145-9 Series Mechanical High Pressure Test Plug

Petersen® 145-9 Series Mechanical High Pressure Test Plug

HIG-be59bf

Versatile Petersen® mechanical test plug for secure isolation and pressure testing. Lightweight, easy to install, and reliable for critical applications.

$499.99
$499.99
Sale

Initiate Order

Petersen® 145-9 Series Mechanical High Pressure Test Plug

Petersen® 145-9 Series Mechanical High Pressure Test Plug

$499.99

Quantity: 1

Claim Your Seller Account

Petersen® 145-9 Series Mechanical High Pressure Test Plug

Petersen® 145-9 Series Mechanical High Pressure Test Plug

$499.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Petersen® 145-9 Series Mechanical High Pressure Test Plug is a versatile solution for various applications including force and water main, nuclear cooling lines, and more. With a maximum pipe size of 25.875 inches and a durable construction featuring lightweight aluminum, this plug ensures easy installation and a positive seal against line pressure. Replaceable seals and by-pass port in National Pipe Thread (NPT) add to its convenience and functionality. Designed for critical testing and construction projects where isolation is necessary, this plug offers reliability and efficiency.

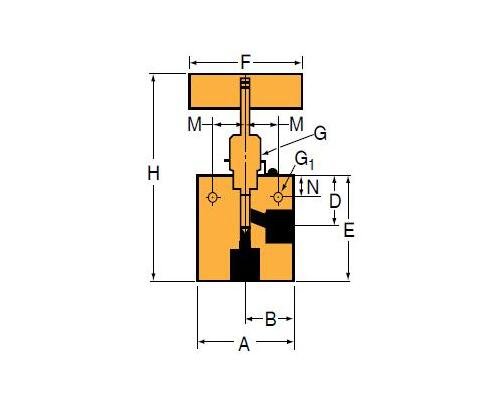

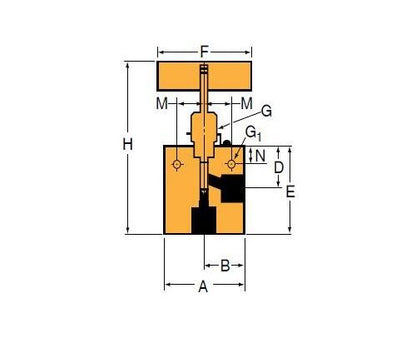

Product Specifications

Specifications A Width
3.00 in | 76.20 mm
Specifications Block Thickness
1.38 in | 35.05 mm
Specifications B Length
1.50 in | 38.10 mm
Specifications Connection Type
Pipe
Specifications D Height
2.06 in | 52.32 mm
Specifications E Height
3.38 in | 87.85 mm
Specifications F Length
4.00 in | 101.60 mm
Specifications G1 Bracket Mounting Hole Size
0.34 in | 8.64 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
6.43 in | 163.32 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.50 in | 12.70 mm
Specifications Orifice Diameter
0.312 in | 7.92 mm
Specifications Pipe Size
1/2 in | 12.70 mm
Specifications Pressure Rating At Room Temperature
15000 psi | 1034 bar
Specifications Rated Cv
1.30
Specifications Stem Type
REG
Specifications Valve Pattern
2-Way Angle
Valve Maintenance 0
Repair Kits:add “R” to the front of valve catalog number for proper repair kit. (Example: R15P4071 or R10P12071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C).High temperature packing and/or extended stuffing box are available for service from 0°F (-17.8°C) to 650°F (343°C) by adding the following suffixes to catalog order number.†TG - standard valve with Teflon glass packing to 600°F (316°C).GY - standard valve with graphite braided yarn packing to 650°F (343°C).B - standard valve with cryogenic trim material and Teflon packing to -100°F (-73°C).†Autoclave Engineers does not recommend pipe connections below 0°F (-17.8°C) or above 400°F (204°C). For additional valve options, contact your Sales Representative.
