Petersen® 146-9 Series Bolt Type Medium Pressure Silicone Test Plug with By-Pass
Petersen® 146-9 Series Bolt Type Medium Pressure Silicone Test Plug with By-Pass
SKU:HIG-d21fc5
Efficiently test pipelines with the Petersen® 146-9 Series Silicone Test Plug. Hydrocarbon resistant with Nitrile seals, ideal for institutional use.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Petersen® 146-9 Series Bolt Type Medium Pressure Silicone Test Plug with By-Pass
$45.99
Quantity: 1
Claim Your Seller Account
Petersen® 146-9 Series Bolt Type Medium Pressure Silicone Test Plug with By-Pass
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen® 146-9 Series Bolt Type Medium Pressure Silicone Test Plug with By-Pass is engineered for efficient and dependable pipeline testing. With a minimum pipe inside diameter of 1.51 inches, this plug is designed for hydrocarbon resistance, featuring Nitrile seals for optimal performance. Crafted from plated carbon steel, this test plug ensures a secure fit and rated pressure of 150 psig, making it suitable for institutional applications requiring precision and reliability.
Product Specifications

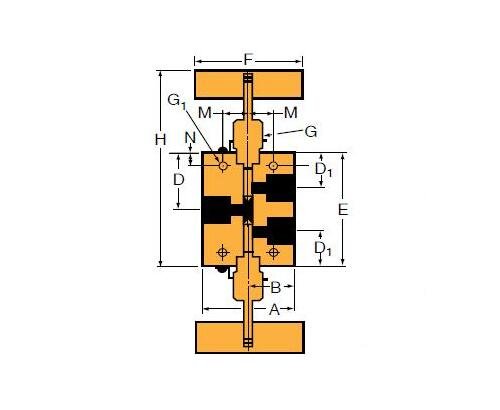

Specifications A Width
4.12 in | 104.65 mm
Specifications Block Thickness
1.75 in | 44.45 mm
Specifications B Length
2.06 in | 52.32 mm
Specifications Connection Type
Pipe
Specifications D1 Height
2.81 in | 71.42 mm
Specifications D Height
3.75 in | 95.25 mm
Specifications E Height
7.50 in | 190.50 mm
Specifications F Length
10.25 in | 260.35 mm
Specifications G1 Bracket Mounting Hole Size
0.56 in | 14.22 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.62 in | 41.15 mm
Specifications H Height
11.47 in | 291.38 mm
Specifications M Length
1.25 in | 31.75 mm
Specifications N Height
1.13 in | 28.70 mm
Specifications Orifice Diameter
0.562 in | 14.27 mm
Specifications Pipe Size
1 in | 25.4 mm
Specifications Pressure Rating At Room Temperature
10000 psi | 690 bar
Specifications Rated Cv
4.40
Specifications Stem Type
VEE
Specifications Valve Pattern
3-Way/2-Stem Manifold
Valve Maintenance 0
Repair Kits:add âRâ to the front of valve catalog number for proper repair kit. (Example: R15P4071 or R10P12071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C).High temperature packing and/or extended stuffing box are available for service from 0°F (-17.8°C) to 650°F (343°C) by adding the following suffixes to catalog order number.â TG - standard valve with Teflon glass packing to 600°F (316°C).GY - standard valve with graphite braided yarn packing to 650°F (343°C).B - standard valve with cryogenic trim material and Teflon packing to -100°F (-73°C).â Autoclave Engineers does not recommend pipe connections below 0°F (-17.8°C) or above 400°F (204°C). For additional valve options, contact your Sales Representative.
