Petersen® 146-9 Series Bolt Type Test Plug with By-Pass

Petersen® 146-9 Series Bolt Type Test Plug with By-Pass

HIG-6a085e

Reliable 1.13in Bolt Type Test Plug with Customizable Options for Medium Pressure Testing

$99.99
$99.99
Sale

Initiate Order

Petersen® 146-9 Series Bolt Type Test Plug with By-Pass

Petersen® 146-9 Series Bolt Type Test Plug with By-Pass

$99.99

Quantity: 1

Claim Your Seller Account

Petersen® 146-9 Series Bolt Type Test Plug with By-Pass

Petersen® 146-9 Series Bolt Type Test Plug with By-Pass

$99.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Petersen® 146-9 Series Bolt Type Test Plug ensures simple and reliable testing of pipelines with a minimum inside diameter of 1.13 inches. Featuring Nitrile seals for hydrocarbon resistance, this medium pressure test plug is rated for 200 psig and is designed to prevent tube wall damage during testing. Customizable with various seal materials and configurations, it offers a secure and versatile solution. Ensure safety and efficiency in testing procedures with the Petersen® 146-9 Series Bolt Type Test Plug.

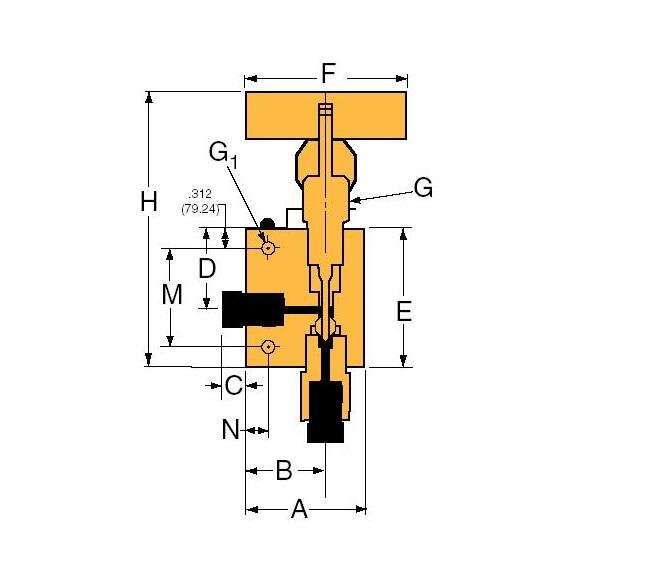

Product Specifications

Specifications A Width
1.5 in | 38.10 mm
Specifications Block Thickness
0.75 in | 19.05 mm
Specifications B Length
0.88 in | 22.35 mm
Specifications Connection Type
W125
Specifications C Length
0.31 in | 7.87 mm
Specifications D Height
0.94 in | 23.87 mm
Specifications E Height
1.56 in | 39.62 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.16 in | 4.06 mm
Specifications G Packing Gland Mounting Hole Drill Size
0.62 in | 15.74 mm
Specifications H Height
5.06 in | 128.52 mm
Specifications M Length
1.00 in | 25.40 mm
Specifications N Height
0.25 in | 6.35 mm
Specifications Orifice Diameter
0.062 in | 1.57 mm
Specifications Outside Diameter Tube
1/8 in | 3.17 mm
Specifications Pressure Rating At Room Temperature
15000 psi | 1034 bar
Specifications Rated Cv
0.004
Specifications Tubing Engagement Depth
0.47 in | 11.9 mm
Specifications Valve Pattern
2-Way Angle
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R60VRMM)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C). High temperature packing and/or extended stuffing box is available for service from -423°F (-252°C) to 1200°F (649°C) by adding the following suffixes to catalog order number.†TG - standard valve with Teflon glass packing to 600°F (316°C).GY - standard valve with graphite braided yarn packing to 800°F (427°C).HT - extended stuffing box valve with graphite braided yarn packing to 1200°F (649°C).B - standard valve with cryogenic trim material and Teflon packing to -100°F (-73°C).LT - extended stuffing box valve with Teflon packing & Cryogenic trim materials to -423°F (-252°C).†Autoclave Engineers does not recommend compression sleeve connections below 0°F (-17.8°C) or above 650°F (343°C). For additional valve options, contact your Sales Representative.See Needle Valve options for stem and seat coatings for erosive service.
