Petersen® 146-9 Series Bolt Type Test Plug with By-Pass - 3.51in Minimum Pipe ID
Petersen® 146-9 Series Bolt Type Test Plug with By-Pass - 3.51in Minimum Pipe ID
SKU:HIG-7dac1b
Premium Petersen® 146-9 Series Test Plug - Designed for safe, reliable pipe testing up to 250 psig, with custom configurations available. Ideal for institutional procurement.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Petersen® 146-9 Series Bolt Type Test Plug with By-Pass - 3.51in Minimum Pipe ID
$69.99
Quantity: 1
Claim Your Seller Account
Petersen® 146-9 Series Bolt Type Test Plug with By-Pass - 3.51in Minimum Pipe ID
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen® 146-9 Series is a top-quality medium pressure test plug with by-pass, designed for simple and reliable pipe testing up to 250 psig. This Bolt Type Plug boasts a Nitrile seal ensuring safe testing without tube wall damage. It offers custom configurations for various pressures, temperatures, and chemical requirements. Safety is paramount with a mechanical plug warning for maximum pressure considerations. Ideal for institutional and government procurement needs, meeting stringent standards.
Product Specifications

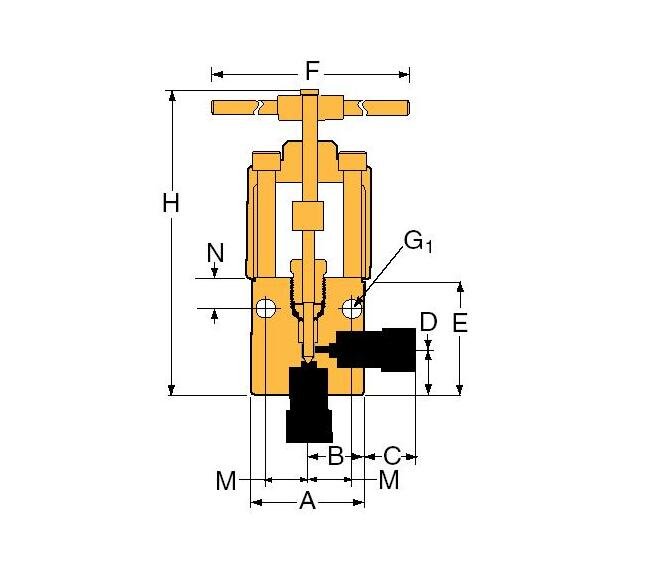

Specifications A Width
4.13 in | 104.9 mm
Specifications Block Thickness
1.75 in | 44.45 mm
Specifications B Length
2.07 in | 52.45 mm
Specifications Connection Type
F1000C43
Specifications C Length
0.72 in | 18.29 mm
Specifications D Height
2.31 in | 58.67 mm
Specifications E Height
4.56 in | 115.82 mm
Specifications F Length
10.25 in | 260.35 mm
Specifications G1 Diameter
0.28 in | 7.11 mm
Specifications H Height
10.80 in | 274.32 mm
Specifications M Length
1.50 in | 38.10 mm
Specifications N Height
1.00 in | 25.40 mm
Specifications Orifice Diameter
0.375 in | 9.53 mm
Specifications Outside Diameter Tube
1 in | 25.4 mm
Specifications Pressure Rating At Room Temperature
43000 psi | 2965 bar
Specifications Rated Cv
2.30
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
1.38 in | 35.0 mm
Specifications Valve Pattern
2-Way Angle
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R50Y9071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C). High temperature packing is available for service from 0°F (-17.8°C) to 600°F (316°C) by adding the following suffixes to catalog order number.TG standard valve with Teflon glass packing to 600°F (316°C).B standard valve with cryogenic trim materials and Teflon packing to -100°F (-73°C).
