Petersen® 154 Series 30 Inch Low Pressure Gas Plug
Petersen® 154 Series 30 Inch Low Pressure Gas Plug
SKU:COP-636420
High-quality Petersen® 154 Series 30 Inch Gas Plug for secure and reliable pipeline sealing.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Petersen® 154 Series 30 Inch Low Pressure Gas Plug
$299.99
Quantity: 1
Claim Your Seller Account
Petersen® 154 Series 30 Inch Low Pressure Gas Plug
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen® 154 Series 30 Inch Low Pressure Gas Plug is expertly crafted with a high-quality nitrile bladder encased in durable polyester fabric. Designed for a snug fit and reliable shut-off, this plug features a standard inflation valve and optional pressure gauge. With a maximum inflation pressure of 3 psig and a tap hole size of 5 inches, it ensures secure pipeline sealing. The plug's robust construction and compatibility with tire inflation ports make it a dependable choice for both consumer and institutional buyers.
Product Specifications

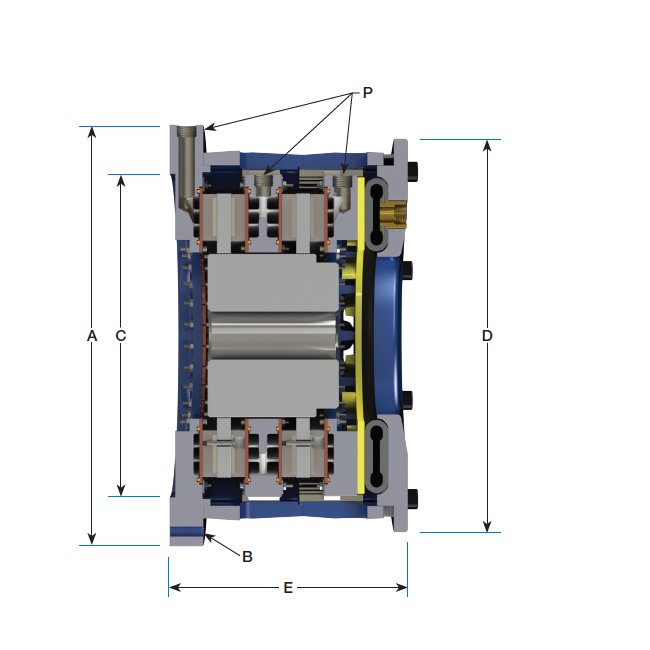

Dimensions Diameter B
21/32 in | 16.7 mm
Dimensions Dimension A
18.750 in | 476.25 mm
Dimensions Dimension A Tolerance
+0.000 in | -0.003 in | +0.00 mm | -0.08 mm
Dimensions Dimension C
14.375 in | 365.13 mm
Dimensions Dimension C Tolerance
+0.003 in | -0.000 in | +0.08 mm | -0.00 mm
Dimensions Dimension D
17-1/2 in | 444.5 mm
Dimensions Dimension E
7 in | 177.8 mm
Dimensions Hole Circle B
17.50 in | 444.5 mm
Dimensions Maximum Bore Range
4.50 in | 114.3 mm
Dimensions Minimum Bore Range
2.13 in | 54.0 mm
Dimensions Quantity
6
Dimensions Thread Size P
1/2
Dimensions Thread Type
National Pipe Thread (NPT)
Features Features
O-ring water jacket design for same-day field serviceNo outboard support requiredStandardized mounting for OEM applications, rebuilds, or retrofitsThe actuator is naturally corrosion resistantLegacy service parts available for additional sizes
Note Note
Contact WPT® Power for final selection, product flexibility, application guidance and approval. Certified prints available on request. Dimensions and Specifications are considered as reference only and subject to change.
Specifications High Coefficient Pneumatic Torque Rating At 100 P
24900 lbf·in | 2820 N·m
Specifications Hub And Drive Plate Dp Inertia
6.2 lb·ft² | 0.26 kg·m²
Specifications Hub And Drive Plate Dp Weight
35 lb | 16 kg
Specifications Maximum Free Wheel Speed
2740 rpm
Specifications Maximum Slip Speed
1820 rpm
Specifications Medium Coefficient Pneumatic Torque Rating At 100
16100 lbf·in | 1820 N·m
Specifications Minimum Freshwater Flow
7.50 gpm | 45 L/min
Specifications Note For Heat Dissipation Capacity And Minimum Fr
Rated heat dissipation requires a freshwater flowrate of 1 gpm for every 10 hp (one liter per minute for every 2 kW) and are based upon a 50°F (28°C) temperature rise between the inlet and outlet. The outlet water temperature should not exceed 170°F (77°C). Maximum inlet water pressure is 60 psi (4.1 bar). Ethylene Glycol is the recommended coolant additive. At 50% concentration in water, the required flowrate is 1.5 times the freshwater flowrate, due to the reduced specific heat of the solution.
Specifications Note For Pneumatic Torque Rating At 100 Pound Per
Pneumatic Max Actuator Pressure: 130 psi (9 bar) All sizesTorque is directly proportional to the actuator pressure appliedLow Coefficient and Extra-High Coefficient Friction Material offerings are available.
Specifications Parallel Piping Heat Dissipation Capacity
75 hp | 56 kW
Specifications Series Piping Heat Dissipation Capacity
50 hp | 37 kW
Specifications Total Weight
240 lb | 110 kg
