Petersen® 154 Series 48 Inch Low Pressure Gas Plug
Petersen® 154 Series 48 Inch Low Pressure Gas Plug
SKU:STE-822817
High-quality 48-inch low pressure gas plug for secure pipeline sealing with standard inflation valve and polyester fabric cover.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Petersen® 154 Series 48 Inch Low Pressure Gas Plug
$249.99
Quantity: 1
Claim Your Seller Account
Petersen® 154 Series 48 Inch Low Pressure Gas Plug
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen® 154 Series 48 Inch Low Pressure Gas Plug is expertly crafted with a high-quality nitrile inner bladder wrapped in a durable 100% Polyester fabric cover. Each plug ensures a secure fit and reliable shut-off when inflated. Featuring a standard inflation valve and compatibility with pressure gauges (sold separately), this plug is designed for efficient pipeline sealing. Note that customization may be required for perfect seal during pipeline testing.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

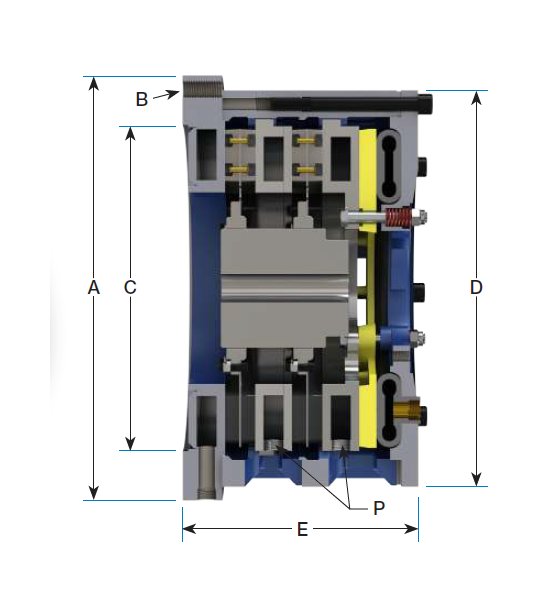

Dimensions Diameter B
21/32 in
Dimensions Diameter B Metric Mounting
18.0 mm
Dimensions Dimension A
30.000 in | 762.00 mm
Dimensions Dimension A Metric Mounting
760.00 mm
Dimensions Dimension A Tolerance
+0.000 in | -0.003 in | +0.00 mm | -0.08 mm
Dimensions Dimension A Tolerance Metric Mounting
+0.08 mm | -0.000 mm
Dimensions Dimension C
24.375 in | 619.13 mm
Dimensions Dimension C Metric Mounting H7
620.00 mm
Dimensions Dimension C Tolerance
+0.003 in | -0.000 in | +0.08 mm | -0.000 mm
Dimensions Dimension D
29 in | 736.6 mm
Dimensions Dimension E
12-1/4 in | 311.2 mm
Dimensions Hole Circle B
28.75 in | 730.3 mm
Dimensions Hole Circle B Metric Mounting
730.0 mm
Dimensions Imperial Mounting Coolant Ports P
1/2
Dimensions Imperial Mounting Thread Type
National Pipe Thread (NPT)
Dimensions Metric Mounting Coolant Ports P
1/2
Dimensions Quantity
10
Dimensions Quantity Metric Mounting
10
Dimensions Thread Type
British Standard Pipe Taper Thread (BSPT)
Features Features
High cycle lifePredictable preventative maintenanceLow-inertia drive plate configurationDurable steel water jacket designStandardized mounting for OEM applications, rebuilds, or retrofitsMaximum heat transferLow-inertia drive plate design
Note Note
Consult WPT® Application Engineering for application assistance, service factors, specifications, and detailed drawings/3D models.
Specifications Heat Dissipation Capacity
190 hp | 143.2 kW
Specifications Lining Area
520 in² | 3300 cm²
Specifications Maximum Bore Range
5.50 in | 139.7 mm
Specifications Maximum Speed Hub And Drive Plate
1430 rpm
Specifications Maximum Speed Slip
955 rpm
Specifications Minimum Bore Range
2.75 in | 69.9 mm
Specifications Minimum Water Flow
29 gal/min | 108 L/min
Specifications Static Torque At 100 Pounds Per Square Inch Psi 7
258000 lbf·in | 29200 N·m
Weight And Inertia Hub And Drive Plate Dp Inertia
76 lb·ft² | 3.2 kg·m²
Weight And Inertia Hub And Drive Plate Dp Weight
260 lb | 120 kg
Weight And Inertia Total Weight
1100 lb | 500 kg
