Petersen® High Pressure Cap for 3/8 Inch MNPT
Petersen® High Pressure Cap for 3/8 Inch MNPT
SKU:HIG-2c6c97
Premium Petersen® High Pressure Cap for 3/8 Inch MNPT, designed for secure, high pressure sealing in industrial applications.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
Petersen® High Pressure Cap for 3/8 Inch MNPT
$14.99
Quantity: 1
Claim Your Seller Account
Petersen® High Pressure Cap for 3/8 Inch MNPT
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen® High Pressure Cap for 3/8 Inch MNPT is a premium solution designed for use with 146-9 and 147 Series Plugs. Constructed to withstand high pressure applications, this cap ensures a secure seal and reliable performance. Made with durable materials, it is built to last and meet the demanding needs of industrial environments. Perfect for sealing off 3/8" MNPT ports, this cap offers exceptional quality and functionality, making it a valuable addition to any toolkit in industries requiring high pressure fittings.

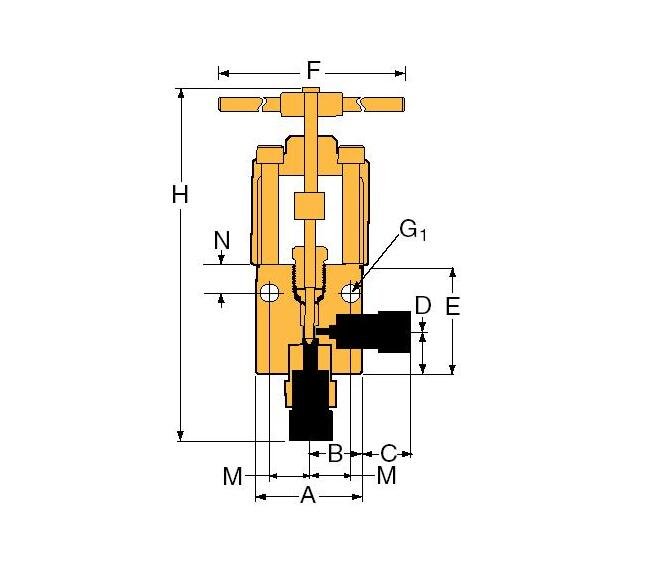

Product Specifications
Specifications A Width
3.00 in | 76.20 mm
Specifications Block Thickness
1.38 in | 34.93 mm
Specifications B Length
1.50 in | 38.10 mm
Specifications Connection Type
SF750CX
Specifications C Length
0.63 in | 15.88 mm
Specifications D Height
2.06 in | 52.32 mm
Specifications E Height
4.00 in | 101.60 mm
Specifications F Length
8.00 in | 203.20 mm
Specifications G1 Diameter
0.28 in | 7.11 mm
Specifications H Height
11.31 in | 287.27 mm
Specifications M Length
1.13 in | 28.58 mm
Specifications N Height
0.88 in | 22.23 mm
Specifications Orifice Diameter
0.438 in | 11.13 mm
Specifications Outside Diameter Tube
3/4 in | 19.05 mm
Specifications Pressure Rating At Room Temperature
15000 psi | 1034 bar
Specifications Rated Cv
2.41
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
1.00 in | 25.4 mm
Specifications Valve Pattern
2-Way Angle / Replaceable Seat
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R50Y9071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C). High temperature packing is available for service from 0°F (-17.8°C) to 600°F (316°C) by adding the following suffixes to catalog order number.TG standard valve with Teflon glass packing to 600°F (316°C).B standard valve with cryogenic trim materials and Teflon packing to -100°F (-73°C).
