Petersen Test-Ball® 130-9 Series 66 Inch Pillow-Style Plug
Petersen Test-Ball® 130-9 Series 66 Inch Pillow-Style Plug
SKU:TYP-2f872d
Durable 66 Inch Pillow-Style Plug for sewer flow & air testing. Chemical-resistant, lightweight design for reliable performance.
Regular price
$589.99
Regular price
Sale price
$589.99
Unit price
per
Initiate Order
Petersen Test-Ball® 130-9 Series 66 Inch Pillow-Style Plug
$589.99
Quantity: 1
Claim Your Seller Account
Petersen Test-Ball® 130-9 Series 66 Inch Pillow-Style Plug
$589.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen Test-Ball® 130-9 Series 66 Inch Pillow-Style Plug is a versatile and durable solution for sewer flow and air testing. Made from heavy-duty elastic urethane, this plug is lightweight, chemical-resistant, and fits through small openings. Equipped with tether bars, a 30' inflation hose, read-back line, and gauge, it offers ease of use and reliability. With a maximum back pressure of 3.5 psi and convenient features like a repair kit, this plug is ideal for various pipe types and sizes. Ensure security and efficiency in your testing processes with the Petersen Test-Ball® 130-9 Series Plug.
Product Specifications
Additional Information Additional Information

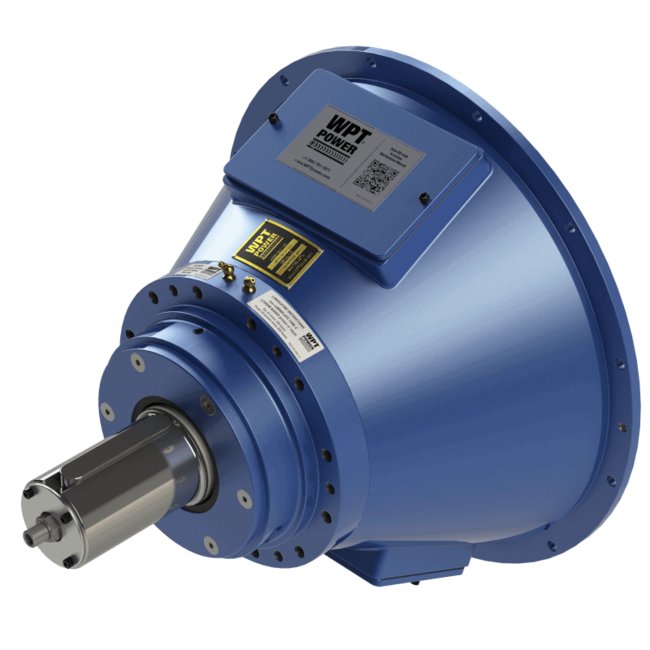

If you are looking for an innovative, high capacity power take-off, look no further than the Prototype 2.With its versatile design, dry clutch and top-of-the-line spherical roller Parings, the Type 2 PTO has Peen field-proven in many sideload applications.The Benefits of the WPT® Type 2 include the potential for remote engagement, self-adjusting clutch, with air or hydraulic actuation. Heavy-duty gear tooth friction discs are standard on 14" and 18" models. Bearings are lubricated with either grease or oil.Customers needing maximum capacity in a small package will find the Type 2 an outstanding PTO for their applications.
Features Features
Self-adjusting clutch packCompatible with Python® and HPU hydraulic starting optionsBearings are lubricated with either grease or oilStandard, HD Molded, and HD Laminated friction options
Note Note
Flange output shafts available. Contact WPT® Applications Engineering for assistance.

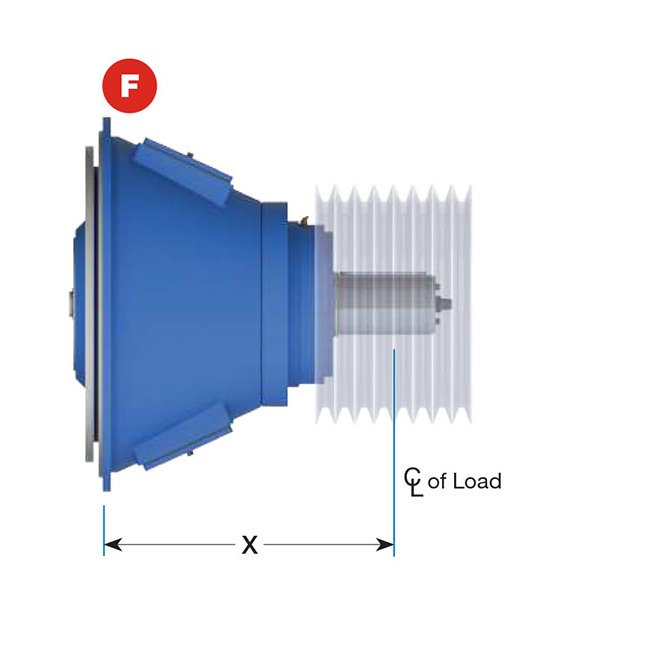

Specifications Allowable Sideload At 23 Inch In And 584 Millimet
7600 lbf | 8000 lbf | 3500 kgf | 3600 kgf
Specifications Allowable Sideload At 29 Inch In And 737 Millimet
5300 lbf | 5500 lbf | 2400 kgf | 2500 kgf

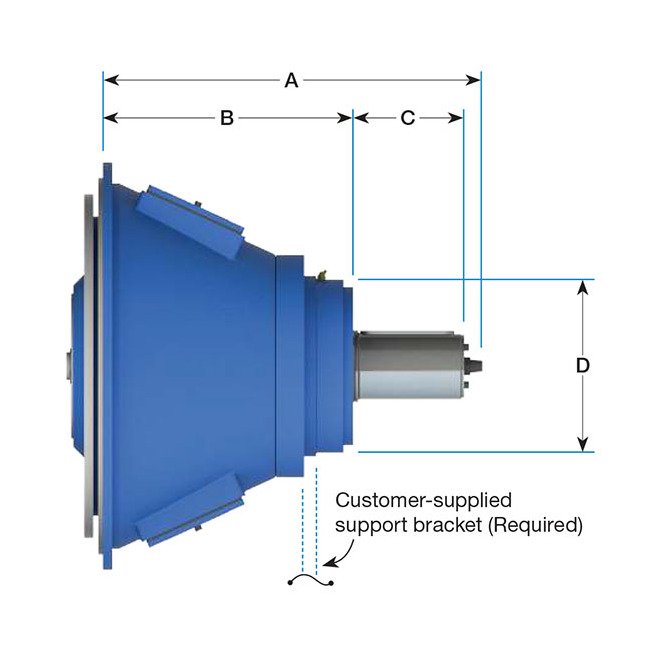

Specifications Distance X
23 in | 29 in | 584 mm | 737 mm
Specifications Maximum Input Torque
2500 lbf.ft | 3400 N.m
Specifications Maximum Speed
2300 rpm
Specifications Revolution Per Minute
1800 | 2300
