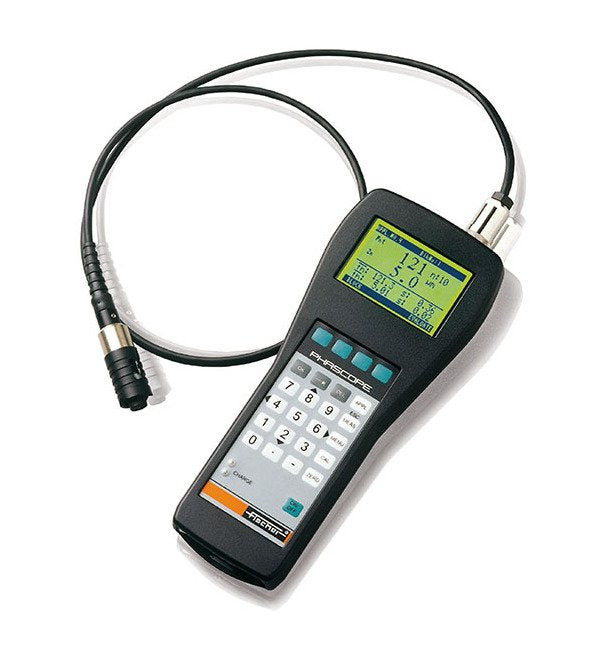

Hand-held instrument for measuring the thickness of duplex coatings and tasks specific to the automotive industryThe PHASCOPE® PMP10 Duplex - along with the ESG20 probe - was specially developed for the automotive industry to measure duplex coatings (paint / zinc on steel or iron). The thicknesses of the paint and zinc layers are recorded in a single measurement process and displayed separately on the display. Due to the automatic substrate material recognition, paint layers can also be measured on aluminum without requiring an additional probe.
Product Specifications
Additional Information

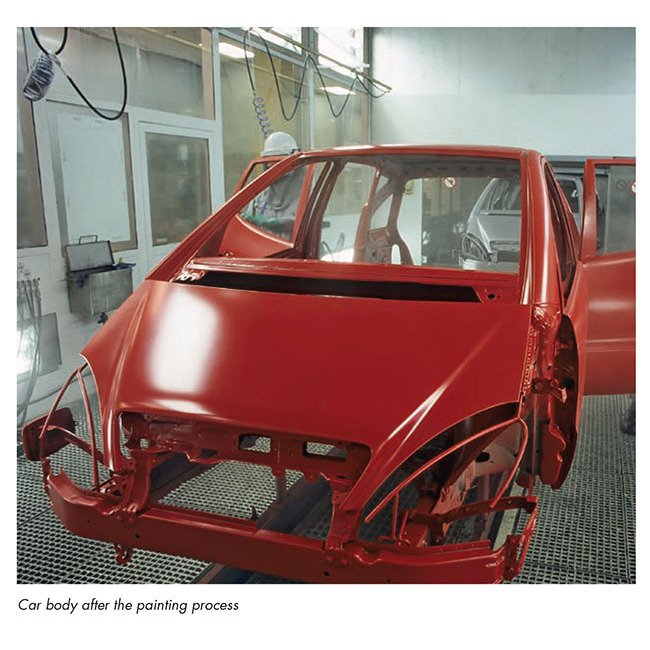

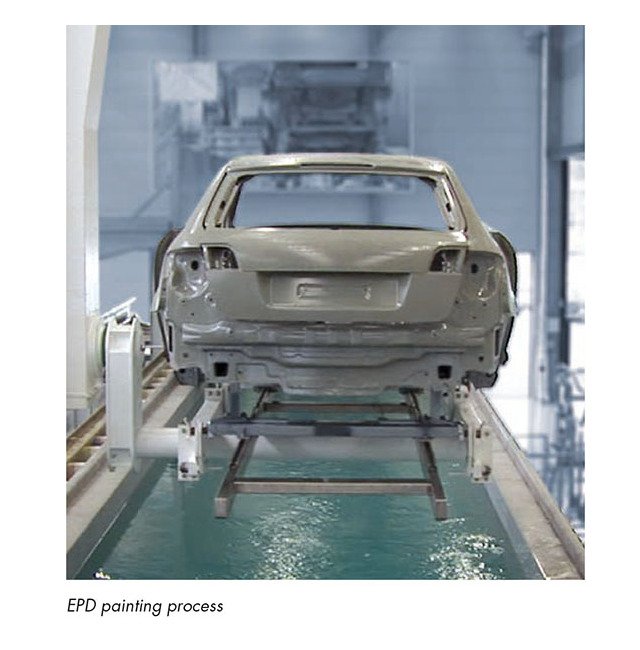

EPD painting processCar body after the painting processPC-DATEX software for data transfer to ExcelFischer DataCenter software for data analysis
Applications

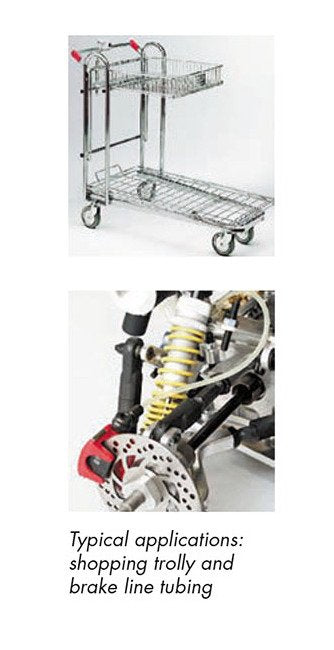

Sheet metal processingPaint / zinc on iron, e.g. thin EPD coatingsPaint on aluminumPaint on steelBrake line tubingWire (mesh and lattice), e.g. shopping trolleys
Fischer Datacenter
Indispensable for the quick and easy transfer of data from the PHASCOPE® PMP10 Duplex to a computer, Fischer DataCenter software is a powerful tool that also offers extensive graphic display and statistical analysis functions ideal for quality control: statistical process control charts, cumulative frequency diagrams and Fischer's own FDD® (factory diagnosis diagram). The built-in report editor enables measurement data to be conveniently processed, archived and printed out as individual inspection reports.
Instrument Features
Duplex measuring mode: display of paint on zinc on iron or paint on aluminumDual measuring mode: display of total thickness (paint and zinc) on iron or paint on aluminumExtensive evaluation and statistics functionsOutlier control and tolerance monitoring optionsVarious languages to choose fromBattery and/or continuous operation via plug-in charger (included)Data transfer via RS-232 interface
Measurement Method

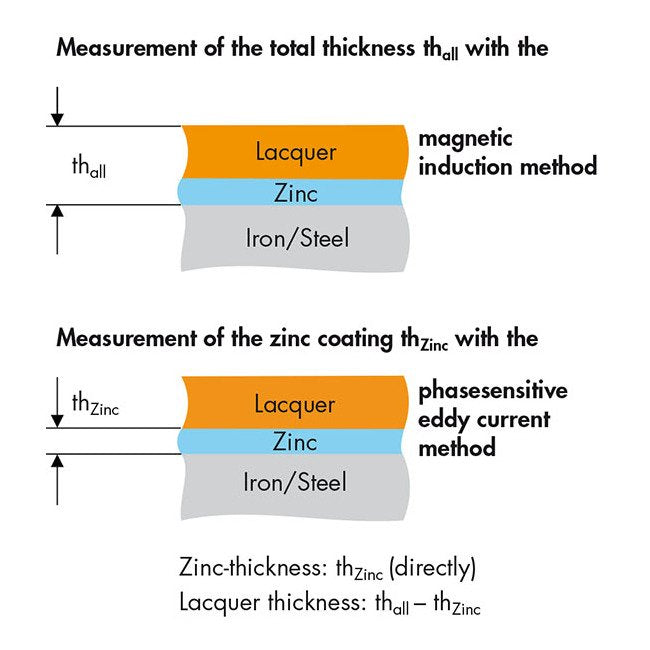

The PHASCOPE® PMP10 Duplex combines three measurement methodsMagnetic Induction method DIN EN ISO 2178 - For measuring the overall thickness of paint and zinc coatings on ironAmplitude-Sensitive Eddy Current method DIN EN ISO 2360 - For measuring a single paint layer on aluminumPhase-Sensitive Eddy Current method ISO 21968 - For measuring zinc coatings on iron, irrespective of overlying paint layersFor the measurement of zinc and paint coatings, the magnetic induction method and the phase-sensitive eddy current method are used in parallel (duplex), so that the individual layers of paint and zinc can be calculated separately.With aluminum as substrate material an automatic switch to the amplitude-sensitive eddy current method occurs and the thickness of the paint layer is displayed.
Optional Accessories

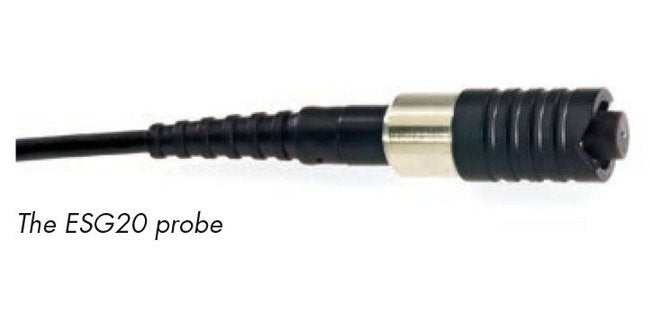

Item # - 603-690Item Name - ESG20 probeItem # - 604-420Item Name - V12 BASE support stand
Specifications Application Areas
Automotive
Specifications Intended Application
Coating Thickness
Specifications Storage Of Readings
0 to 20000
Technical Data Measurement Range For Amplitude Sensitive Measure
0 to 2000 µm
Technical Data Measurement Range For Magnetic Induction And Phas
Iso 0 to 550 µm | Zinc (Zn) 0 to 150 µm
Technical Data Measurement Range For Magnetic Induction Measurem
0 to 700 µm
Technical Data Measuring Application For Amplitude Sensitive Mea
Iso | Neon (NE)
Technical Data Measuring Application For Magnetic Induction And
Iron (Fe) | Iso | Zinc (Zn)
Technical Data Measuring Application For Magnetic Induction Meas
Iron (Fe) | Neon (NE)
Technical Data Measuring Mode For Amplitude Sensitive Measuremen
Dual | Duplex
Technical Data Measuring Mode For Magnetic Induction And Phase S
Duplex
Technical Data Measuring Mode For Magnetic Induction Measurement
Dual
Technical Data Repeatability Precision Based On Fischer Standard
0 - 100 μm ≤ 0.5 μm | 100 - 700 μm ≤ 0.5%
Technical Data Trueness Based On Fischer Standards For Amplitude
100 - 2000 μm ≤ 2% | 5 - 100 μm ≤ 2 μm
Technical Data Trueness Based On Fischer Standards For Magnetic
0 - 100 µm ≤ 1 µm | 100 - 400 µm ≤ 1% | 400 - 700 µm ≤ 2%
