PIVOT PROÂ® Articulating Jib Crane

Name: PIVOT PROÂ® Articulating Jib Crane
Brand: Gorbel, Inc.
SKU: PIV-3b94d0
Price: 3999.99 USD
Availability: OutOfStock

SKU:PIV-3b94d0

The PIVOT PROÂ® Free Standing Articulating Jib Crane - Vacuum Sealed arms, ergonomic design, and easy movement for efficient material handling.

$3,999.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PIVOT PROÂ® Free Standing Vacuum Sealed Articulating Jib Crane is a cutting-edge solution for applications under 150 lb. Featuring vacuum sealed arms, this crane eliminates hose festooning, ensuring efficient, ergonomic, and safe material handling. With a primary arm rotation of 360Âº and a secondary arm rotation of 300Âº, precise load positioning is guaranteed. Complete with a sealed tube to enhance vacuum applications, no foundation is required due to its bolt-on design for 6" reinforced concrete floors.

Product Specifications

Accessories 0

Optional Accessories for PIVOT PROÂ®Portable Base Use the PIVOT PROÂ® throughout your plant when you choose our portable base. It's designed to accommodate small fork trucks and pallet jacks, and even comes with leveling feet. The base is sized for the capacity of the PIVOT PROÂ®.Filter Bracket You can also choose to have us provide a filter bracket, and specify where on the PIVOT PROÂ® you want it placed.Vacuum Pump with Platform We can also provide a platform that accommodates all the major OEM manufacturer's pumps. You specify where on the PIVOT PROÂ® mast you want the platform located.Smart Hook When the PIVOT PROÂ® is not being used, this hook will keep your handle or end effector off the floor.

Additional Information 0

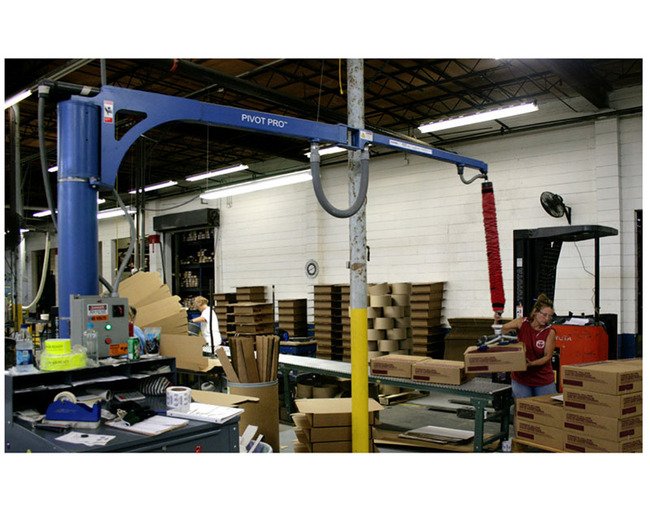

Ideal for reaching in, around and underGorbelÂ® Articulating Jib Cranes can position loads in places you cannot reach with traditional jibs. They provide easy rotation and consistent responsiveness when positioning loads throughout the craneâs coverage area. GorbelÂ® Wall/Column Mounted Articulating Jibs can handle up to 200Âº rotation for the primary boom and up to 360Âº for the secondary boom. Gorbelâs Free Standing and Ceiling Mounted Articulating Jibs can rotate up to 360Âº on the primary and secondary booms.âThe PIVOT PROÂ® makes manipulating packages for palletizing so much easier. You don't have a lot of resistance from the boom to contend with when trying to place an object."- Industrial Engineer for pump manufacturerEasy Movement Throughout The Coverage AreaWith a traditional jib crane, placement near the mast of the jib becomes difficult due to the weight of the jib boom.The articulating arm allows easy movement of the load throughout the coverage area.PIVOT PROÂ® Reduces Maintenance CostsThis customer was moving finished goods through a packaging line to prepare for shipping. The vacuum tube lifter they were using was constantly tearing and needing maintenance. Plus the operators were having difficulty moving the boxes the entire length of the old jib boom.The PIVOT PROÂ® reduced the need for maintenance because the ease of movement caused less stress on the vacuum tube. After using the PIVOT PROÂ® on the application, the company purchased an additional unit for another application in the facility.

Features And Benefits 0

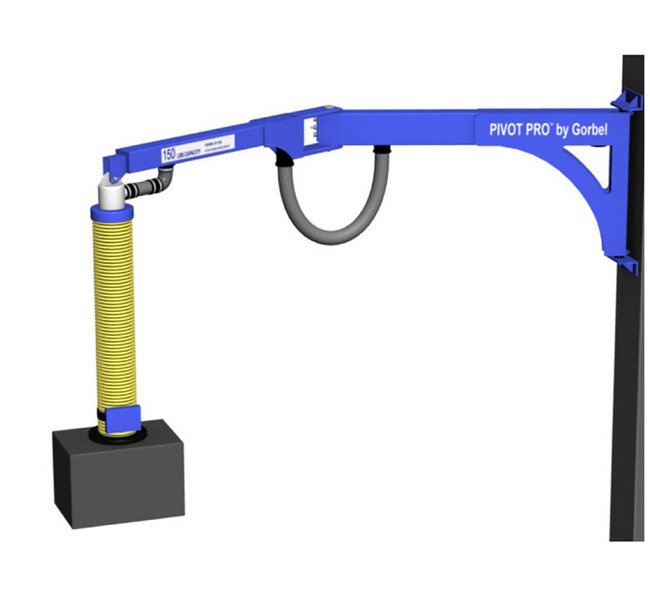

Sealed Tube Our sealed tube eliminates the need for festooning in vacuum applications. No more festoon stack up, plus you get greater travel and minimize the potential for reduced vacuum suction caused by kinked hoses.Articulated Boom DesignMoves up to 3 times easier than a work station jibLighter weight makes positioning the loads easierEasier movement of loads close to the mastSafer operation by reducing the whip" of the boom in high cycle applicationsLess boom "whip" reduces the wear and tear on vacuum lift tubesRotation Limits for Primary Arm The PIVOT PROÂ® has multiple rotation stop locations so you can tailor the coverage area to your needs.Compatible with All Major OEM Tube LiftersGorbel's PIVOT PROÂ® has been designed to be used with all major OEM manufacturer's vacuum tube lifters. (Note: Vacuum tube lifters by others).No Foundation Required The PIVOT PROÂ® can bolt to any 6" reinforced concrete floor.

Gorbels Advantage 0

Easy MovementTraditional jib cranes can be difficult to rotate when the load is on the inner half of the boom. The articulating jibs (PIVOT PROÂ®) are easier to rotate in close to the free standing mast or building column.Precise Load PositioningGorbelÂ® Articulating Jib Cranes are A Class Aboveâ¢ when it comes to positioning and spotting loads around an obstruction, through an open doorway, or rotating in close to the free standing mast or building column.Wide Variety of Spans and CapacitiesGorbelÂ® Articulating Jib Cranes are available as standard products in capacities up to 2000 lb. and spans up to 16' without the extra lead time and costs associated with customization.Ergonomic DesignThe PIVOT PROÂ® can help you position loads in places you cannot reach with traditional jibs. It provides easy rotation and consistent responsiveness when positioning loads throughout the crane's coverage area. Our Free Standing PIVOT PROÂ® is capable of 360Âº non-continuous coverage around the mast, with the secondary arm covering 300Âº. The Wall Mounted model is capable of 200Â° rotation on the primary arm and 300Âº rotation with the secondary arm.Rapid Return on InvestmentGorbel's PIVOT PROÂ® provides a rapid return on investment through increased productivity, reduced injuries, and improved safety. Increases in production result from the easy rotation of the boom and quick, precise load positioning. It is up to three times easier to start and stop the boom of a PIVOT PROÂ® compared to work station jib cranes. The result is reduced injury and improved safety. When you choose the PIVOT PROÂ®, you get a quality ergonomic product, a delivery date you can plan on, and the industryâs best warranty.

Note 0

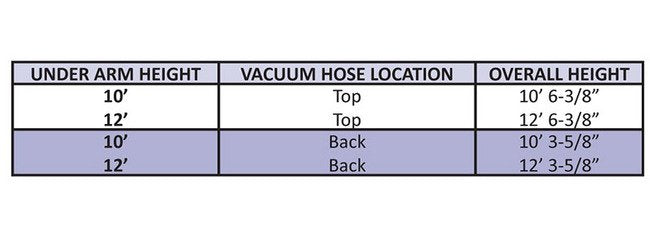

The "T" in the model number denotes vacuum hose at TOP of boom connection. Substitute a "B" in its place for the hose at the Back of boom connection.Includes: Jib boom assembly (primary and secondary arm), jib arm, pivot assemblies, friction brakes, free standing mast, vacuum hose between primary and secondary arm, hose fittings, rotation stops and mounting assembly (3/4" anchor bolts by others).

Specifications Anchor Bolt Load

807 lb

Specifications Capacity

100 lb

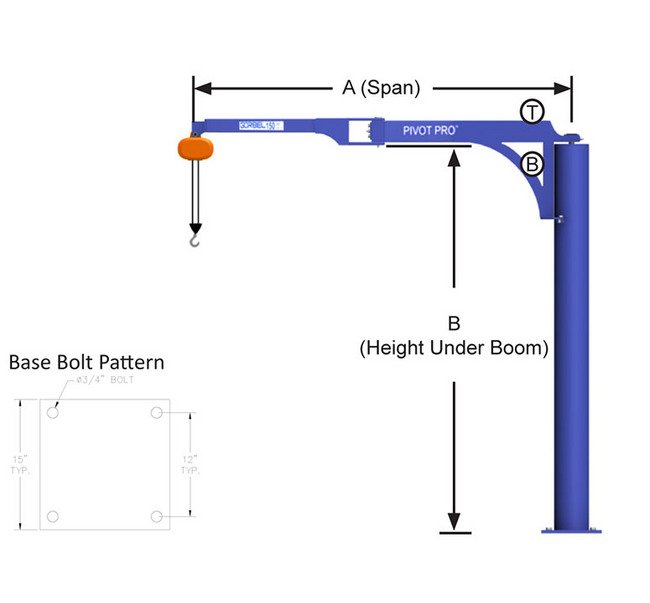

Specifications Height Under Boom Hub B

10 ft

Specifications Mounting Style

Free Standing Style

Specifications Primary Arm Rotation

360 Âº

Specifications Secondary Arm Rotation

300 Âº

Specifications Shipping Weight

490 lb

Specifications Span A

8 ft
