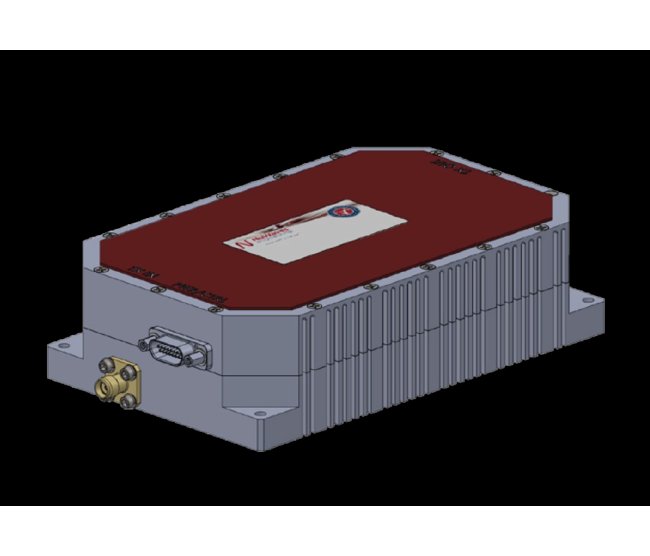

The NuPower™ ULSC-20-C01-S01 is a broadband, small, lightweight, and power-efficient power amplifier that generates 20 watts of RF power from 500 MHz to 6 GHz. The NuPower™ ULSC-20-C01-S01 is a broadband, small, lightweight, and power-efficient power amplifier ideal for extending the communication range of full-duplex and half-duplex wideband transceivers and radios. It is ideal for extending the coverage area of counter-UAS systems through signal jamming and command and control take over. The ULSC-20-C01-S01 amplifier generates 20 watts of RF power from 500 MHz to 6 GHz. The efficiency and compact form factor of the NuPower™ ULSC-20-C01-S01 power amplifier makes it ideal for size, weight, and power-constrained RF telemetry and tactical communication systems. This solid-state power amplifier features a compact form factor, allowing the system integrator to easily incorporate the unit into the communications payload of unmanned aircraft systems (UAS) or other small to medium-sized platforms.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Export Classification
EAR99
Specifications Gain Typ
38 dB
Specifications Input Drive
5 dBM
Specifications Input Supply
20 - 32
Specifications Maximum Frequency
6000 MHz
Specifications Minimum Frequency
500 MHz
Specifications Output Power Typ
20 W
Specifications Rf Connector Options
SMA
Specifications Size Lx W X H
5.5 x 3.42 x1.5 Inch
Specifications Weight
28 oz
