Premium Forged Brass Ball Valve (Threaded, CSA/UL/FM Certified)
Premium Forged Brass Ball Valve (Threaded, CSA/UL/FM Certified)
Durable forged brass ball valve with maintenance-free seals, PTFE seats, and CSA/UL/FM certifications.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Premium Forged Brass Ball Valve (Threaded, CSA/UL/FM Certified)
$59.99
Quantity: 1
Claim Your Seller Account
Premium Forged Brass Ball Valve (Threaded, CSA/UL/FM Certified)
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Premium Forged Brass Ball Valve is designed for durability and reliability in industrial applications. With maintenance-free double O-ring stem seals, a blowout-proof Ni Plated stem, and PTFE seats, this valve ensures a tight seal to prevent leaks. Crafted from high-quality forged brass components, this valve offers a full port design and a chrome-plated vented ball for smooth operation. Meeting pressure ratings of 150 PSI for saturated steam and 600 PSI for cold water, oil, or gas, this valve conforms to MSS-SP 110 standards and is CSA, UL, and FM certified.
Product Specifications
Material List 0

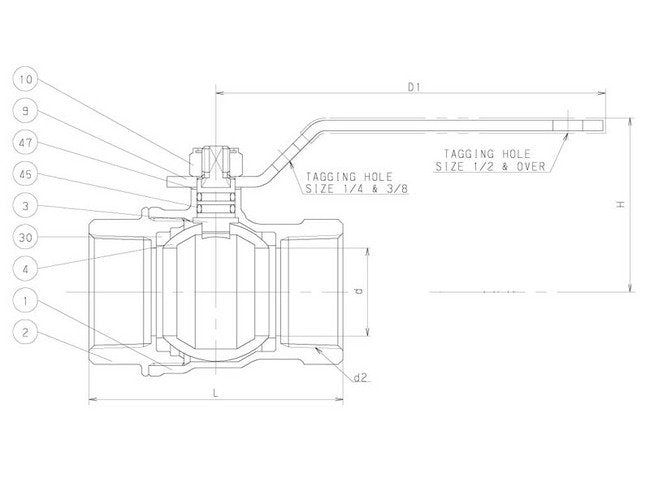

No. Name of Part Specification 1 Body Forged Brass (B283, C37700) 2 Body Cap Forged Brass (B283, C37700) 3 Stem Brass Rod (B16) (Ni Plating) 4 Ball (Vented) Forged Brass (B283, C37700) (CR. Plating) Straight or Hollow Ball 9 Handle Carbon Steel (Electroplated Zinc with Plastic Covering) 10 Handle Nut Carbon Steel 30 Ball Seats PTFE 45 O-rings FPM 47 Thrust Washer PBT
Specifications Approx Net Wt
45.00
Specifications Carton Qty
60
Specifications Class
AKSZA
Specifications Dimension D
0.79
Specifications Dimension D1
3.15
Specifications Dimension D1 Max
0.881
Specifications Dimension D1 Min
0.877
Specifications Dimension D2
3/4 inches
Specifications Dimension H
1.69
Specifications Dimension L
2.36
Specifications Dimension L1
1.37
Specifications End Size
Threaded
Specifications Material
Brass
Specifications Pressuretemperature
150 PSI - Saturated Steam to 366°F | 600 PSI - Non-Shock Cold Water, Oil or Gas
Specification 0
Approved valve shall have two piece forged brass body, blowout proof stem (Ni Plated), PTFE seats, maintenance free double o-ring stem seals, chrome plated ball and full port design. Valves shall be pressure rated to 150 WSP/600 WOG and conform to MSS-SP 110 and certified to CSA, UL & FM.KITZ Code No. 58 (AKSZA) Threaded Ends59 (CSZA) Solder Ends
Standard 0
End to End KITZ Threaded Ends ANSI B1.20.1 Solder Joint Ends ANSI B16.18 Wall Thickness KITZ Conforms to MSS-SP 110 - Replaces us. FED.Spec. WWW-V-35B, Type II, Class A, Style 3
