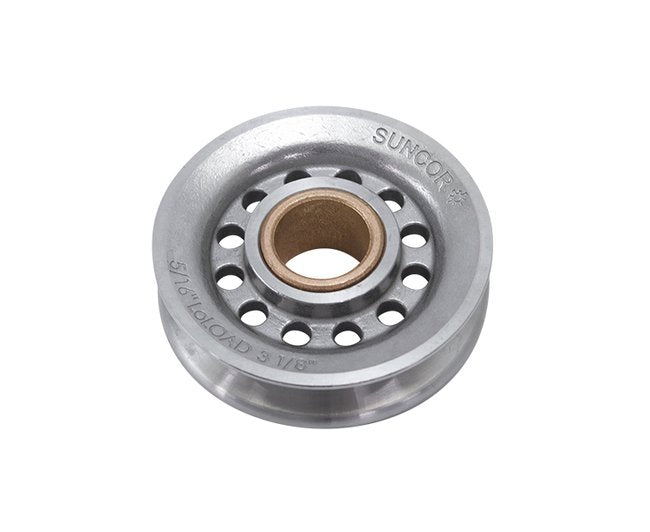

PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing

Name: PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing
Brand: Suncor Stainless, Inc.
SKU: PUL-3f11bf
Price: 99.99 USD
Availability: OutOfStock

SKU:PUL-3f11bf

High-performance PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing for durable, safe, and precise load handling.

$99.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Introducing the PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing, a premium solution for high load, slow turning applications. Crafted with grade 316 stainless steel for superior corrosion resistance and durability, this sheave features a lead-free oil impregnated bronze bushing with a thick wall design to minimize friction and support side load wear. With a working load limit of 4500 lb and a range of versatile sizes and hub styles, this PullPro™ sheave ensures optimal performance and longevity for various project requirements.

Product Specifications

Note

All dimensions are nominal (± 3%) and are subject to change without notice.

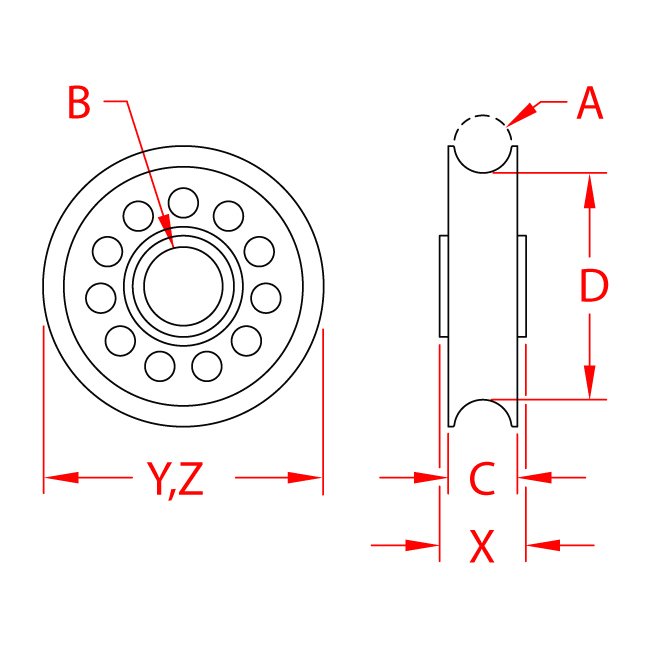

Specifications Bushing Material

Bronze

Specifications Dimension B

1.13 in

Specifications Dimension C

0.92 in

Specifications Dimension D

3.02 in

Specifications Dimension X

1.00 in

Specifications Dimension Y

3.75 in

Specifications Dimension Z

3.75 in

Specifications Material

316 Stainless Steel

Specifications Pulley Type

Rope

Specifications Rope Size A

3/4 in

Specifications Weight

1.02 (lb)

Specifications Working Load Limit Wll

4500 lb

CAGE

1CXX6

NAICS

332999

PSC

5340

PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing
