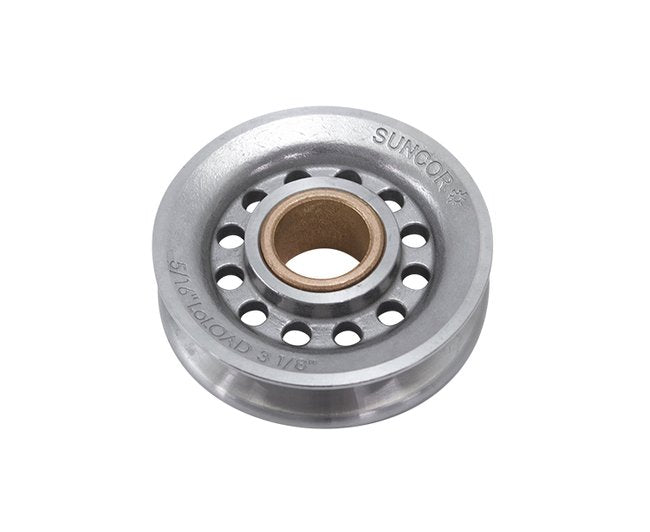

PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing

Name: PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing
Brand: Suncor Stainless, Inc.
SKU: PUL-a96c5b
Price: 39.99 USD
Availability: OutOfStock

SKU:PUL-a96c5b

Premium PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing for durability and safety in diverse applications.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing is a premium choice for various applications, offering a durable bronze bushing suitable for high load, slow turning scenarios. Crafted from grade 316 stainless steel, it ensures maximum corrosion resistance and longevity. With a thick-walled bushing to resist side load wear and reduce friction, this sheave guarantees safety and reliability. Tailor-made for different rope sizes from 3/8" to 1", it meets industry standards for quality and endurance, making it a versatile, robust, and long-lasting solution for your projects.

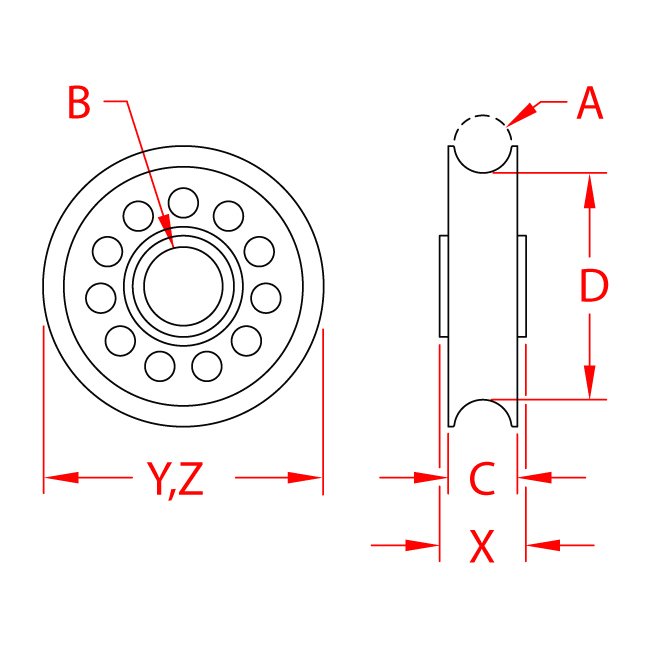

Product Specifications

Note

All dimensions are nominal (± 3%) and are subject to change without notice.Includes Spacer

Specifications Bushing Material

Bronze

Specifications Dimension B

0.31 in

Specifications Dimension C

0.63 in

Specifications Dimension D

2.05 in

Specifications Dimension X

0.71 in

Specifications Dimension Y

2.50 in

Specifications Dimension Z

2.50 in

Specifications Material

316 Stainless Steel

Specifications Pulley Type

Rope

Specifications Rope Size A

1/2 in

Specifications Spacer Part

S0429-081618

Specifications Weight

0.50 (lb)

Specifications Working Load Limit Wll

1500 lb

CAGE

1CXX6

NAICS

332999

PSC

5340

PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing
