PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing - Premium Grade for Heavy-Duty Applications

PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing - Premium Grade for Heavy-Duty Applications

SKU:PUL-a6990a

Boost project durability with PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing - Designed for heavy-duty applications.

Regular price $59.99
Regular price Sale price $59.99
Sale

Initiate Order

PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing - Premium Grade for Heavy-Duty Applications

PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing - Premium Grade for Heavy-Duty Applications

$59.99

Quantity: 1

Claim Your Seller Account

PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing - Premium Grade for Heavy-Duty Applications

PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing - Premium Grade for Heavy-Duty Applications

$59.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance your projects with the PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing, designed to fit rope sizes from 3/8" to 1". Crafted from grade 316 stainless steel with a lead-free oil-impregnated bronze bushing, this sheave offers maximum corrosion resistance, high load capacity, and reduced friction. Its robust construction supports side load wear, ensuring durability in demanding environments. With various sizes and hub styles available, this premium sheave is optimized for safety, longevity, and tailored performance in specific applications.

Product Specifications

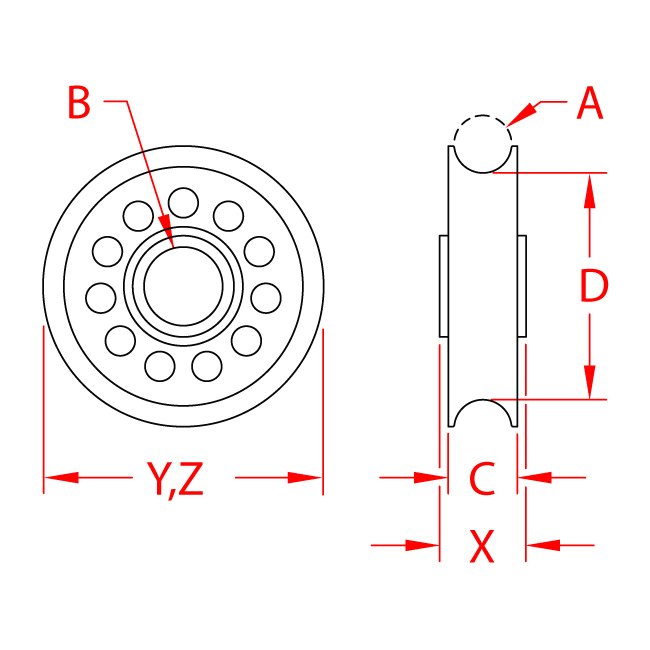

Note
All dimensions are nominal (± 3%) and are subject to change without notice.
Specifications Bushing Material
Bronze
Specifications Dimension B
0.88 in
Specifications Dimension C
0.77 in
Specifications Dimension D
2.53 in
Specifications Dimension X
0.84 in
Specifications Dimension Y
3.13 in
Specifications Dimension Z
3.13 in
Specifications Material
316 Stainless Steel
Specifications Pulley Type
Rope
Specifications Rope Size A
5/8 in
Specifications Weight
0.63 (lb)
Specifications Working Load Limit Wll
3000 lb
CAGE
1CXX6
NAICS
332999
PSC
5340
