PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing - Premium Grade for High-Load Applications

PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing - Premium Grade for High-Load Applications

SKU:PUL-a5fdce

Premium PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing - Ideal for High-Load Applications. Grade 316 stainless steel, lead-free bronze bushing.

Regular price $69.99
Regular price Sale price $69.99
Sale

Initiate Order

PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing - Premium Grade for High-Load Applications

PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing - Premium Grade for High-Load Applications

$69.99

Quantity: 1

Claim Your Seller Account

PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing - Premium Grade for High-Load Applications

PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing - Premium Grade for High-Load Applications

$69.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing is designed for high-load, slow turning applications, fitting rope sizes from 3/8" to 1". Crafted from grade 316 stainless steel for superior corrosion resistance, durability, and reduced friction, this bushing is lead-free and oil impregnated bronze. With a robust thick wall to support side loads, it offers a working load limit of 5500 lb and is ideal for varied product applications. Ensuring safety and longevity, this sheave is versatile, precise, and customizable to meet specific project needs.

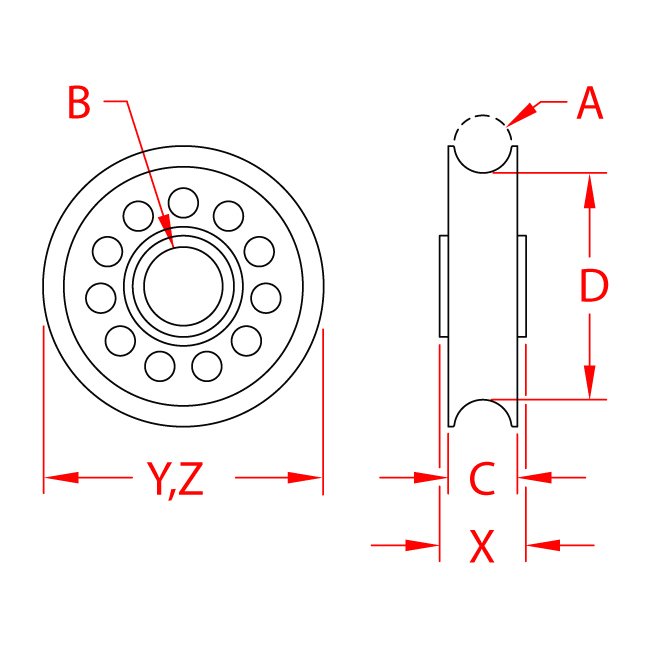

Product Specifications

Note
All dimensions are nominal (± 3%) and are subject to change without notice.Includes Spacer
Specifications Bushing Material
Bronze
Specifications Dimension B
0.75 in
Specifications Dimension C
1.26 in
Specifications Dimension D
4.00 in
Specifications Dimension X
1.40 in
Specifications Dimension Y
5.00 in
Specifications Dimension Z
5.00 in
Specifications Material
316 Stainless Steel
Specifications Pulley Type
Rope
Specifications Rope Size A
1 in
Specifications Spacer Part
S0429-203135
Specifications Weight
2.90 (lb)
Specifications Working Load Limit Wll
5500 lb
CAGE
1CXX6
NAICS
332999
PSC
5340
